HEIDENHAIN MANUALplus 620, CNC PILOT 640
77
2.3 Units – Gor
g
es

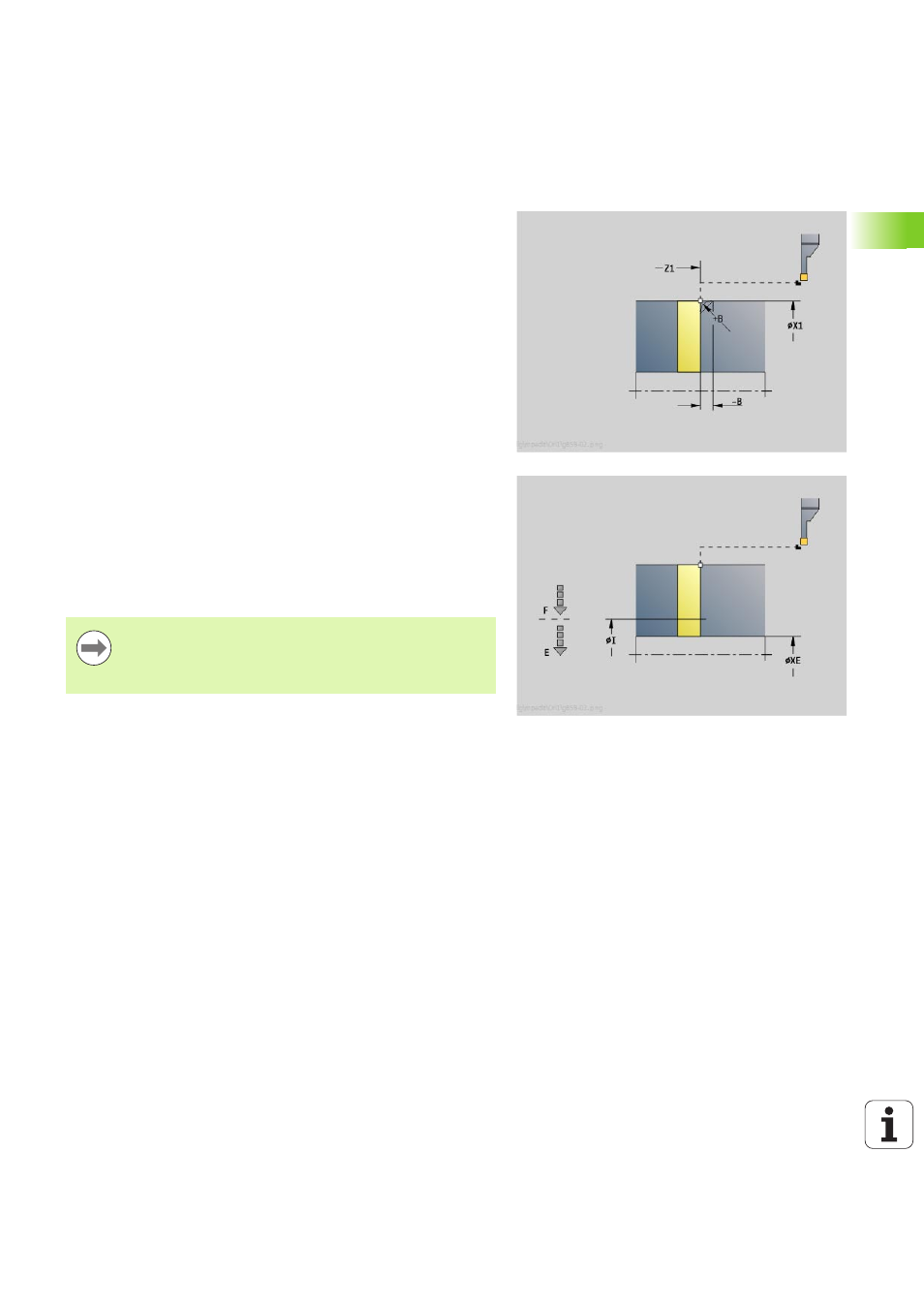

Unit "Tronçonnage"
L'Unit tronçonne la pièce. Un chanfrein ou un arrondi (au choix) est
créé sur le diamètre extérieur. Après avoir exécuté le cycle, l'outil
revient au point de départ. A partir de la position I, vous pouvez définir
une réduction de l'avance.
Nom de l'unit : G859_CUT_OFF / cycle : G859 (voir page 318)
Accès à la base de données technologiques :
Type d'usinage : gorge de contour
Paramètres variables : F, S, E
Formulaire cycle
X1, Z1
Premier point du contour X, Z (X: cote au diamètre)
B
Chanfrein/arrondi
B\>0: rayon de l'arrondi
B<0: longueur du chanfrein
D
Vitesse de rotation max.
XE
Diamètre intérieur (tube)
I
Diamètre de réduction de l'avance Diamètre limite à partir
duquel l'outil se déplace avec l'avance réduite.
E
Avance réduite
SD
Limitation de la vitesse de rotation à partir du diamètre I
U
Diamètre à partir duquel le ramasse-pièces est activé
(fonction machine)
K
Distance de retrait après le tronçonnage : relever l'outil à
côté de la surface transversale avant le retrait
Autres formulaires : voir page 60
La limitation à la vitesse de rotation maximale "D" est
active uniquement dans le cycle. La limitation de la vitesse
de rotation d'avant le cycle est à nouveau active après la
fin du cycle.
