HEIDENHAIN MANUALplus 620, CNC PILOT 640
157
2.1
0
Units – F
raisag
e
sur l'en
v
e
loppe

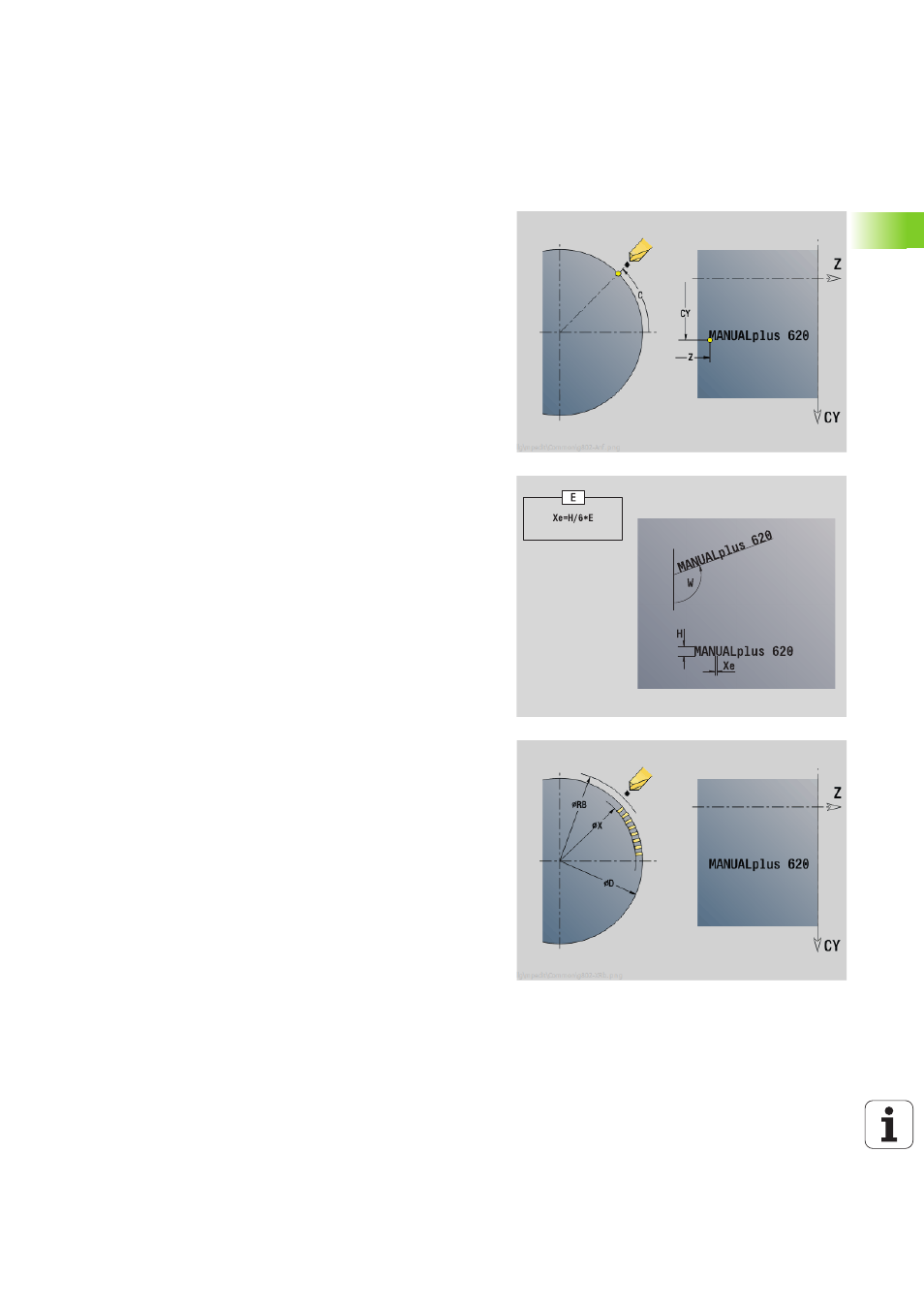

Unit "Graver sur l'enveloppe"
L'Unit grave une chaîne de caractères linéaire sur l'enveloppe. Les
trémas et les caractères spéciaux que vous ne pouvez pas saisir dans
l'éditeur smart.Turn sont à définir caractère par caractère dans NF. Si
vous programmez "Contin. écrire directement" (Q=1), les
changements d'outils et les prépositionnements ne seront pas pris en
compte. Les valeurs technologiques des cycles de gravure précédents
sont prises en compte.
Nom de l'unit : G802_GRA_ENVEL_C / cycle : G802 (voir page 382)
Table de caractères : voir page 379
Accès à la base de données technologiques :
Type d'usinage : gravure
Paramètres variables : F, S
Formulaire Position
Z
Point initial
C
Angle départ
CY
Point initial
X
Point final (cote du diamètre). Position X à laquelle l'outil
doit plonger pour le fraisage.
RB
Plan de retrait
Formulaire cycle
TXT
Texte à graver
NF
Numéro de caractère (caractère devant être gravé)
H
Haut. caract.
E
Facteur d'espacement (Calcul : voir figure)
W
Angle d'inclinaison
FZ
Facteur d'avance de plongée (avance de plongée = avance
actuelle * FZ)
D
Diamètre de référence
Q
Contin. écrire directement
0 (non): la gravure commence au point de départ
1 (oui): graver à partir de la position de l'outil
Autres formulaires : voir page 60
