HEIDENHAIN MANUALplus 620, CNC PILOT 640
209
4.4 Eléments de f
o
rm
e d'un cont
our de t
our
nag
e
4.4 Eléments de forme d'un
contour de tournage

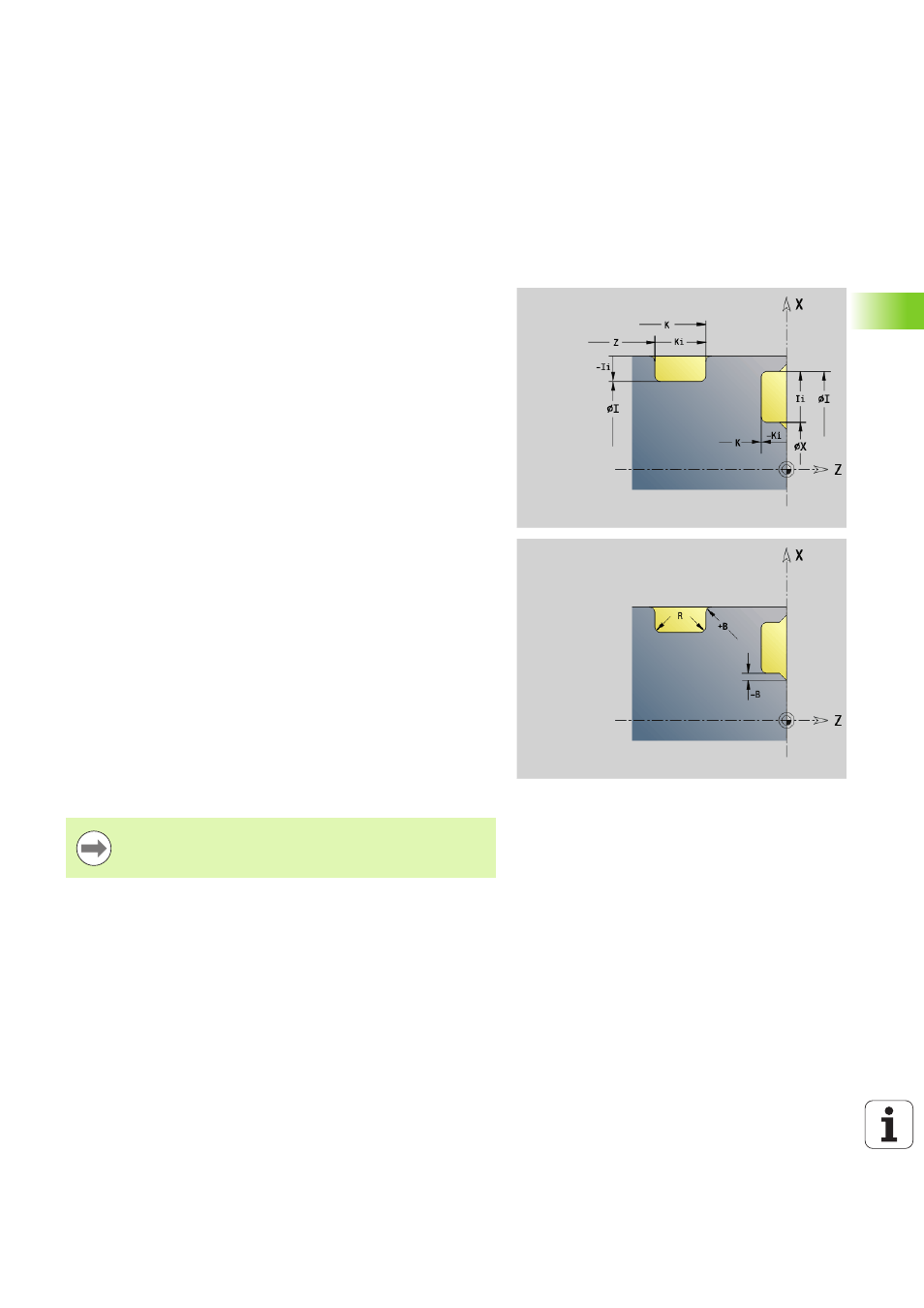

Gorge (standard) G22–Géo
G22 définit une gorge sur un élément de référence paraxial
préalablement programmé.
Paramètre
X
Point initial pour une gorge sur face transversale (cote diamètre)
Z
Point initial pour une gorge sur l'enveloppe
I
Coin interne (Cote de diamètre)
Gorge face transversale: Point final de la gorge
Gorge sur l'enveloppe : Fond de la gorge
K
Coin interne
Gorge sur la face transversale: Fond de la gorge
Gorge sur l'enveloppe : Point final de la gorge
Ii
Coin interne – incrémental (attention au signe !)
Gorge sur la face transversale: largeur de la gorge
Gorge sur l'enveloppe : profondeur de la gorge
Ki
Coin interne – incrémental (attention au signe !)
Gorge sur la face transversale: profondeur de la gorge
Gorge sur l'enveloppe : largeur de la gorge
B
Rayon ext./chanfrein sur les 2 côtés de la gorge (par défaut: 0)
B\>0: rayon de l'arrondi
B<0: largeur du chanfrein
R
Rayon intérieur dans le fond de la gorge (par défaut: 0)
BE, BF, BD, BP et BH (voir "Attributs d'usinage pour les éléments de
forme" à la page 203)
FP
Ne pas usiner cet élément (uniquement nécessaire pour
TURN PLUS).
1: ne pas usiner la gorge
Ne programmez que X ou Z.
