HEIDENHAIN MANUALplus 620, CNC PILOT 640
577
7.
5 Ex
emple
7.5
Exemple

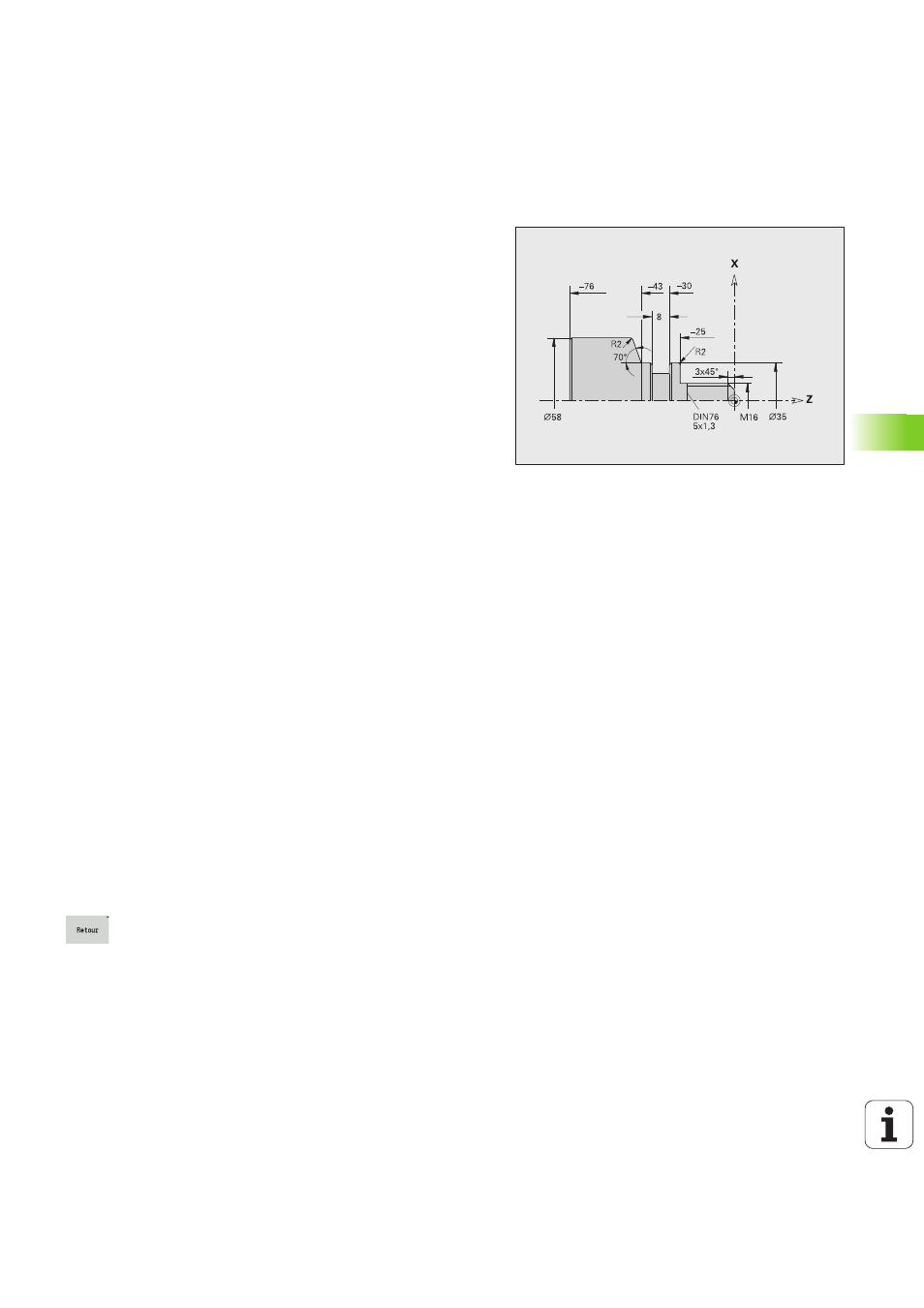

En partant du plan, on définit les étapes d'usinage destinées à réaliser
le contour de la pièce brute et de la pièce finie, l'outillage et la création
automatique du plan de travail.
Pièce brute : Ø 60 X 80, matière de la pièce : Ck 45
Créer le programme
Sélectionner "Programme \> Nouveau \> Nouveau programme
DINplus". La commande ouvre la boîte de dialogue "Enregistrer
sous".
Saisir le nom du programme et appuyer sur la softkey "Mémoriser".
La commande ouvre la boîte de dialogue "En-tête de programme
(court)".
Dans la liste des mots fixes, sélectionner la matière et appuyer sur
la softkey "OK".
Définir la pièce brute
Sélectionner "ICP \> Pièce brute \> Barre". TURN PLUS ouvre la
boîte de dialogue "Barre".
Données à renseigner :
Diamètre X = 60 mm
Longueur Z = 80 mm
Surépaisseur K = 2 mm
TURN PLUS représente la pièce brute.
Appuyer sur la softkey "Retour" pour revenir au menu
principal.
chanfreins non cotés : 1 x 45°
rayons non cotés : 1 mm
