HEIDENHAIN MANUALplus 620, CNC PILOT 640
339
4.22 Cy
cles de perçag
e

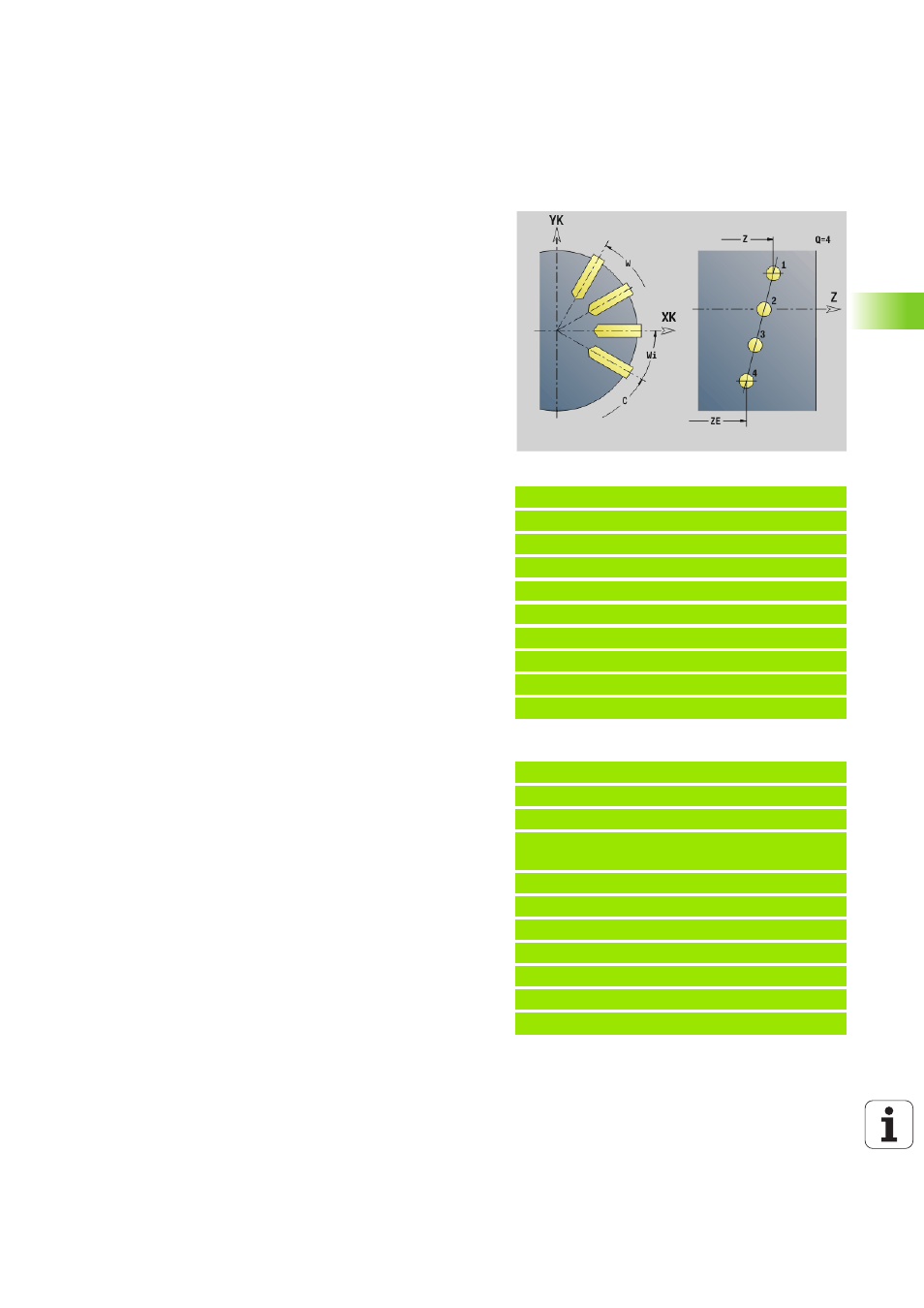

Motif linéaire sur l'enveloppe G744
La fonction G744 réalise un motif linéaire de trous ou de figures réparti
de manière homogène sur l'enveloppe.
Combinaisons de paramètres pour la définition du point initial ou des
positions du motif :
Point initial du motif : Z et C
Positions du motif :
W et Q
Wi et Q
Si vous n'indiquez pas le point final XE, la commande utilise le cycle
de perçage/fraisage ou la définition de figure de la séquence CN
suivante. Selon ce principe, vous combinez la définition de motif avec
les cycles de perçage (G71, G74, G36) ou avec des opérations de
fraisage (définitions de figures G314, G315, G317).
Beispiel: G744
%744.nc
[G744]
N1 T6 G197 S1200 G195 F0.2 M104
N2 M14
N3 G110 C0
N4 G0 X110 Z2
N5 G744 XS102 Z-10 ZE-35 C0 W270 Q5
N6 G71 XS102 K7
N7 M15
FIN
Beispiel: Séquences d'instructions
[ motif de perçage simple ]
N.. G744 Z.. C.. XS.. XE.. ZE.. W.. Q..
. . .
[ motif de perçage avec trous de perçage
profonds ]
N.. G744 Z.. C.. XS.. XE.. ZE.. W.. Q..
N.. G74 XE.. P.. I..
. . .
[ motif de fraisage avec rainure linéaire ]
N.. G744 Z.. C.. XS.. XE.. ZE.. W.. Q..
N.. G792 K.. A.. XS..
. . .
Paramètres
XS
Point initial opération de perçage/fraisage (cote au diamètre)
Z
Point initial du motif en coordonnées polaires
XE
Point final opération de perçage/fraisage (cote au diamètre)
ZE
Point final du motif (par défaut: Z)
C
Angle initial du motif en coordonnées polaires
W
Angle final du motif – aucune donnée : les perçages/figures
sont répartis régulièrement sur l'enveloppe
Wi
Angle final (incrément angulaire), distance avec la position
suivante
Q
Nombre de perçages/figures (par défaut: 1)
A
Angle (position angulaire du motif)
R
Longueur (distance première – dernière position [mm];
référence: développé de XS)
Ri
Longueur (distance par rapport à la position suivante [mm];
référence: développé de XS)
