HEIDENHAIN MANUALplus 620, CNC PILOT 640
105
2.5 Units – P
e
rçag
e, ax
e C
Unit "Alésage ICP, lamage axe C"

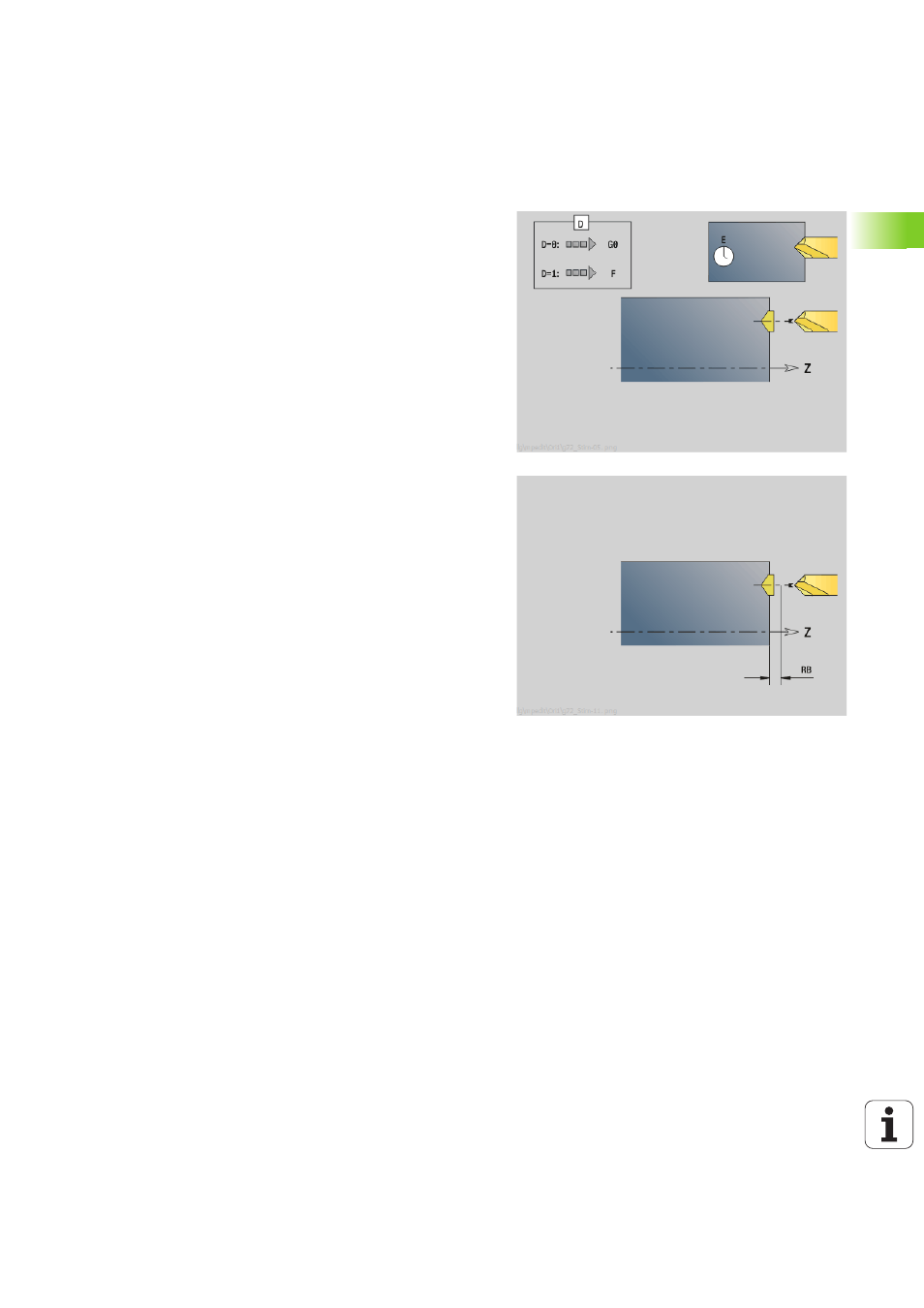

L'Unit réalise un perçage ou un motif de trous sur la face frontale ou
l'enveloppe. Les positions des perçages et autres détails concernant
l'alésage ou le lamage sont spécifiés avec ICP.
Nom de l'unit : G72_ICP_C / cycle : G72 (voir page 330)
Accès à la base de données technologiques :
Type d'usinage : perçage
Paramètres variables : F, S
Formulaire Motif
FK
NS
Numéro de séquence initial du contour
Formulaire cycle
E
Temporisation en fin de perçage (par défaut: 0)
D
Retrait en
0: Avance rapide
1 Avance d'usinage
RB
Plan de retrait (par défaut: à la position de départ ou à la
distance de sécurité)
Autres formulaires : voir page 60
