HEIDENHAIN MANUALplus 620, CNC PILOT 640
287
4.1
7
Cy
cles de t
our
nag
e
a
v
ec suivi du cont
our

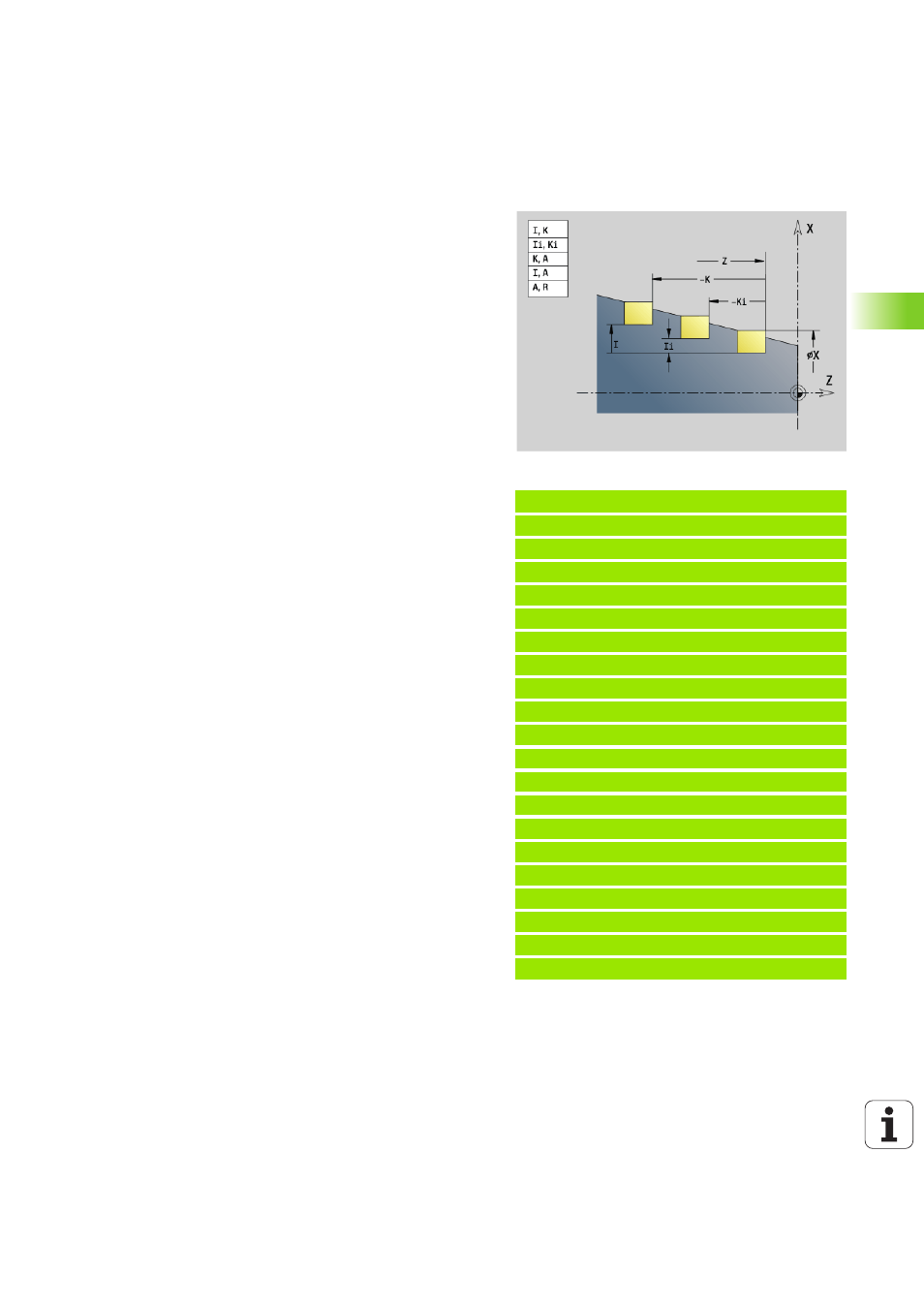

Répétition de gorge G740/G741
G740 et G741 doivent être programmées avant G860 pour répéter le
contour de gorge défini avec le cycle G860.
Combinaisons de paramètres autorisées:
I, K
Ii, Ki
I, A
K, A
A, R
G740 ne gère pas les paramètres A et R.
Beispiel: G740, G741
. . .
CONT. AUX. ID"gorge"
N 47 G0 X50 Z0
N 48 G1 Z-5
N 49 G1 X45
N 54 G1 Z-15
N 56 G1 Z-17
USINAGE
N 162 T4
N 163 G96 S150 G95 F0.2 M3
N 165 G0 X120 Z100
N 166 G47 P2
N 167 G741 K-50 Q3 A180
N 168 G860 I0.5 K0.2 E0.15 Q0 H0
N 172 G0 X50 Z0
N 173 G1 X40
N 174 G1 Z-9
N 175 G1 X50
N 169 G80
N 170 G14 Q0
. . .
Paramètres
X
Point de départ X (cote de diamètre). Décale à cette
coordonnée le point de départ du contour de la gorge définie
avec G860.
Z
Point de départ Z Décale à cette coordonnée le point de départ
du contour de la gorge définie avec G860.
I
Distance entre le premier et le dernier contour de gorge (sens X).
K
Distance entre le premier et le dernier contour de gorge (sens Z).
Ii
Distance entre les contours de gorge (sens X).
Ki
Distance entre les contours de gorge (sens Z).
Q
Nombre de contours de gorge
A
Angle d'orientation des contours de gorge.
R
Longueur. Distance entre le premier et le dernier contour de
gorge
Ri
Longueur. Distance entre les contours de gorge
