HEIDENHAIN MANUALplus 620, CNC PILOT 640
545
6.7 Cy
cles de fr
aisag
e
ax
e Y

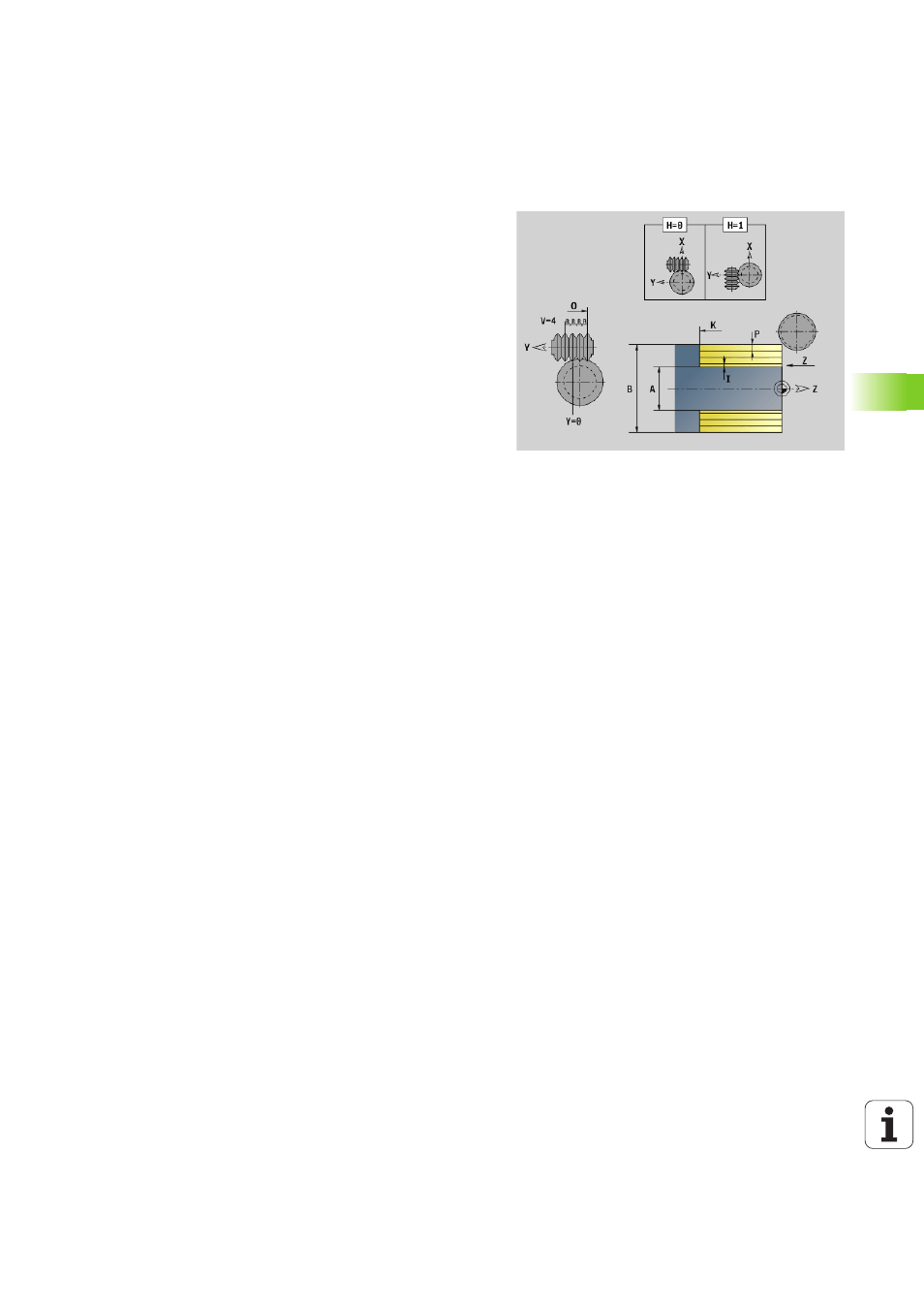

Taillage de dentures G808
La fonction G808 fraise le profil d'une roue dentée du "point initial"
jusqu'au "point final". W contient la position angulaire de l'outil.
Si une surépaisseur est programmée, le taillage est réparti entre une
ébauche suivie d'une finition.
Le "décalage" de l'outil est défini dans aux paramètres O, R et V. Avec
le décalage autour de R, vous obtenez une usure régulière de la fraise-
mère.
Paramètres
Z
Point de départ
K
Point final
C
Angle (angle de décalage de l'axe C)
A
Diamètre de pied
B
Diamètre de tête
J
Nombre de dents de la pièce
W
Position angulaire
S
Vitesse de coupe [m/min.]
I
Surépaisseur
D
Sens de rotation de la pièce
3 : M3
4 : M4
F
Avance par tour
E
Avance de finition
P
Plongée max.
O
Position de départ du filet
R
Pas du filet
V
Nombre de filets de la fraise mère
H
Axe de plongée
0:La plongée se fait dans le sens X
1:La plongée se fait dans le sens Y
Q
Broche de la pièce
0: la broche 0 (principale) tient la pièce
3: la broche 3 (contre-broche) tient la pièce
