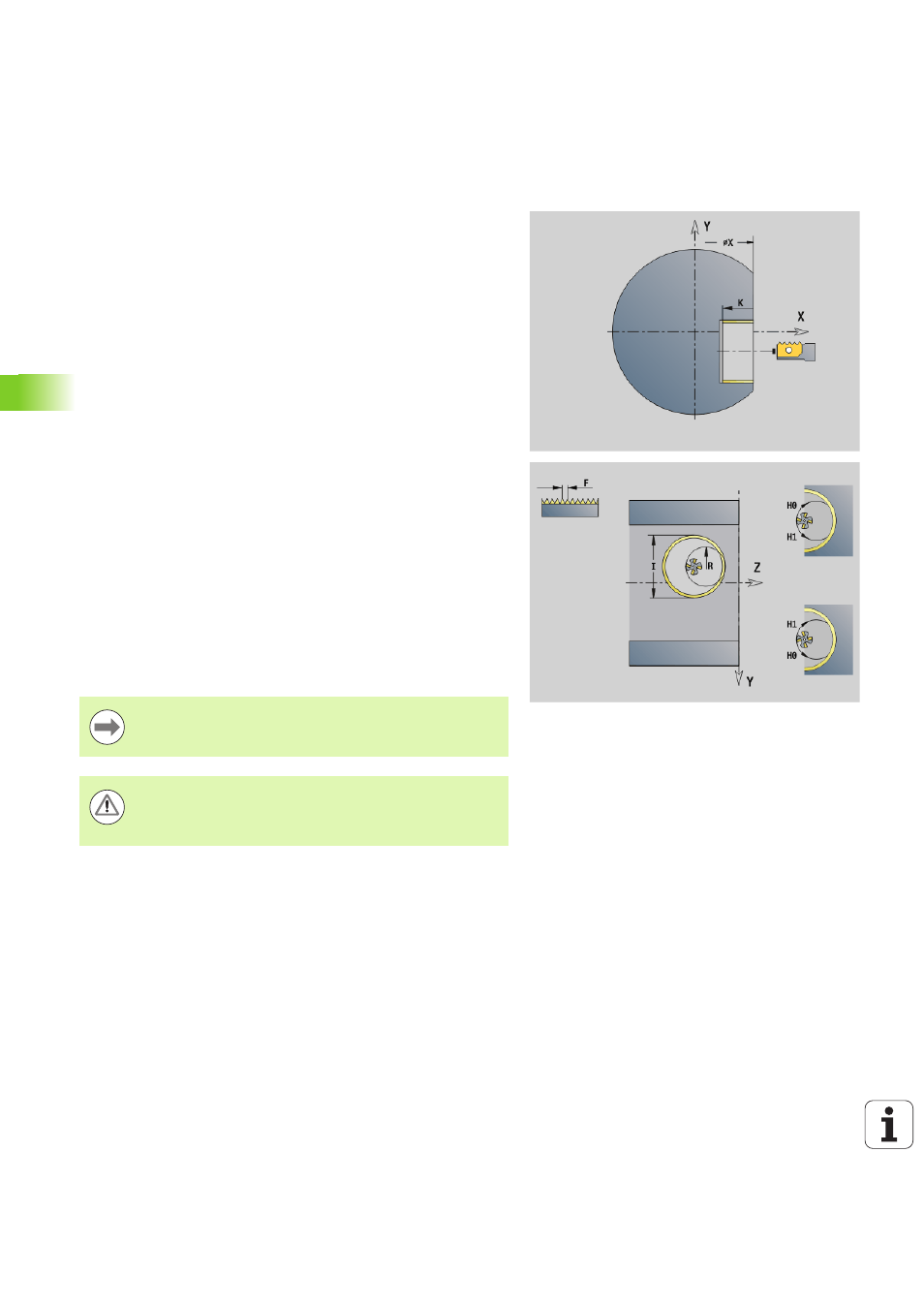

Fraisage de filet dans le plan YZ G806
G806 fraise un filet dans un trou existant.
Positionnez l'outil au centre du trou avant d'appeler G799. Le cycle
positionne l'outil à l'intérieur du trou, au "point final du filet". Ensuite
l'outil se déplace avec le "Rayon d'approche R" et usine le filet. L'outil
se déplace alors de la valeur de pas "F" à chaque rotation. Pour
terminer, le cycle dégage l'outil et celui-ci retourne au point de départ.
Dans le paramètre V, vous programmez si le filetage peut être fraisé
en un tour avec une fraise multidents (peigne) ou en plusieurs tours
avec une fraise monodent.
Paramètres
I
Diamètre de taraudage
X
Point de départ X
K
Profondeur du filet
R
Rayon d'approche
F
Pas du filet
J
Sens du filet (par défaut : 0)
0 : filet à droite
1 : filet à gauche
H
Mode de fraisage (par défaut : 0)
0 : en opposition
1 : en avalant
V
Méthode de fraisage
0: le filetage est usiné avec une hélice de 360°
1 : le filetage est usiné avec plusieurs hélices (outil
monodent)
Pour le cycle G806, utilisez des fraises à fileter.
Attention, risque de collision
Si vous programmez le "rayon d'approche R", tenez
compte du diamètre du trou et de celui de la fraise.
