HEIDENHAIN MANUALplus 620, CNC PILOT 640
345
4.24 Usinag
e sur la f
a
ce fr
ontale/ar
ri
èr
e

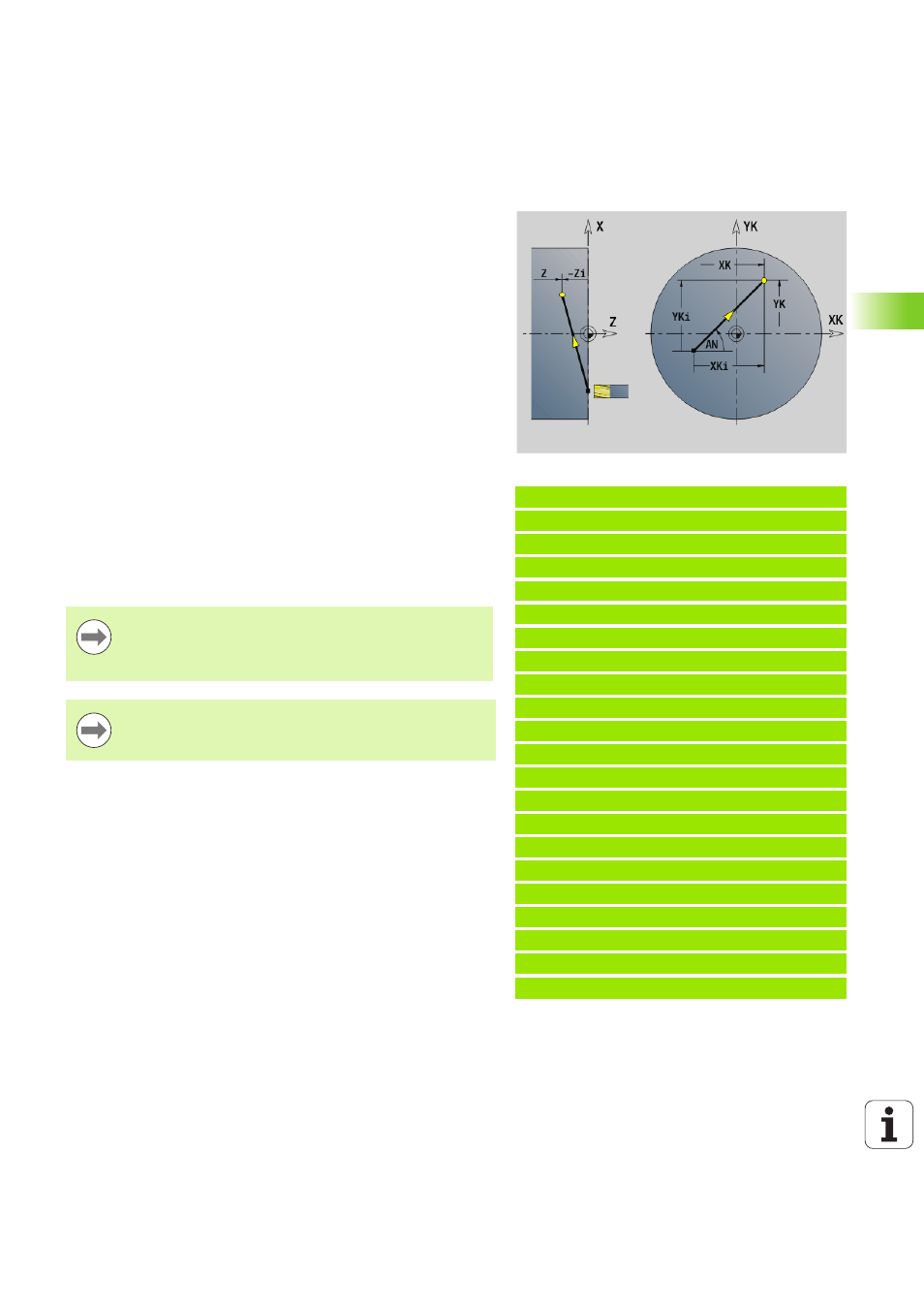

Droite sur face frontale/arrière G101
G101 interpolation linéaire en avance travail jusqu'au "point final".
Beispiel: G101
. . .
N1 T70 G197 S1200 G195 F0.2 M104
N2 M14
N3 G110 C0
N4 G0 X110 Z2
N5 G100 XK50 YK0
N6 G1 Z-5
N7 G42 Q1
N8 G101 XK40 [course linéaire en face avant]
N9 G101 YK30
N10 G103 XK30 YK40 R10
N11 G101 XK-30
N12 G103 XK-40 YK30 R10
N13 G101 YK-30
N14 G103 XK-30 YK-40 R10
N15 G101 XK30
N16 G103 XK40 YK-30 R10
N17 G101 YK0
N18 G100 XK110 G40
N19 G0 X120 Z50
N20 M15
. . .
Paramètres
X
Point final (Cote au diamètre)
C
Angle final – Direction angulaire: voir figure d'aide
XK
Point final (cartésien)
YK
Point final (cartésien)
Z
Point final (par défaut: Position courante en Z)
Paramètres pour la définition de géométrie (G80)
AN
Angle avec l'axe positif XK
BR
Chanfrein/arrondi. Définit la transition vers l'élément de
contour suivant. Programmez le point final théorique si vous
indiquez un chanfrein/arrondi.
Aucune donnée : raccordement tangentiel
BR=0: raccordement non tangentiel
BR\>0: rayon de l'arrondi
BR<0: largeur du chanfrein
Q
Point d'intersection. Point final lorsque la droite coupe un arc
de cercle (par défaut: 0):
Q=0: Point d'intersection proche
Q=1: Point d'intersection éloigné
Programmation :
X, C, XK, YK, Z : absolu, incrémental ou modal
Programmer soit X–C, soit XK–YK
Les paramètres AN, BR et Q doivent être utilisés pour un
cycle, et uniquement dans une description de contour qui
se termine par G80.
