118
Units smart.Turn

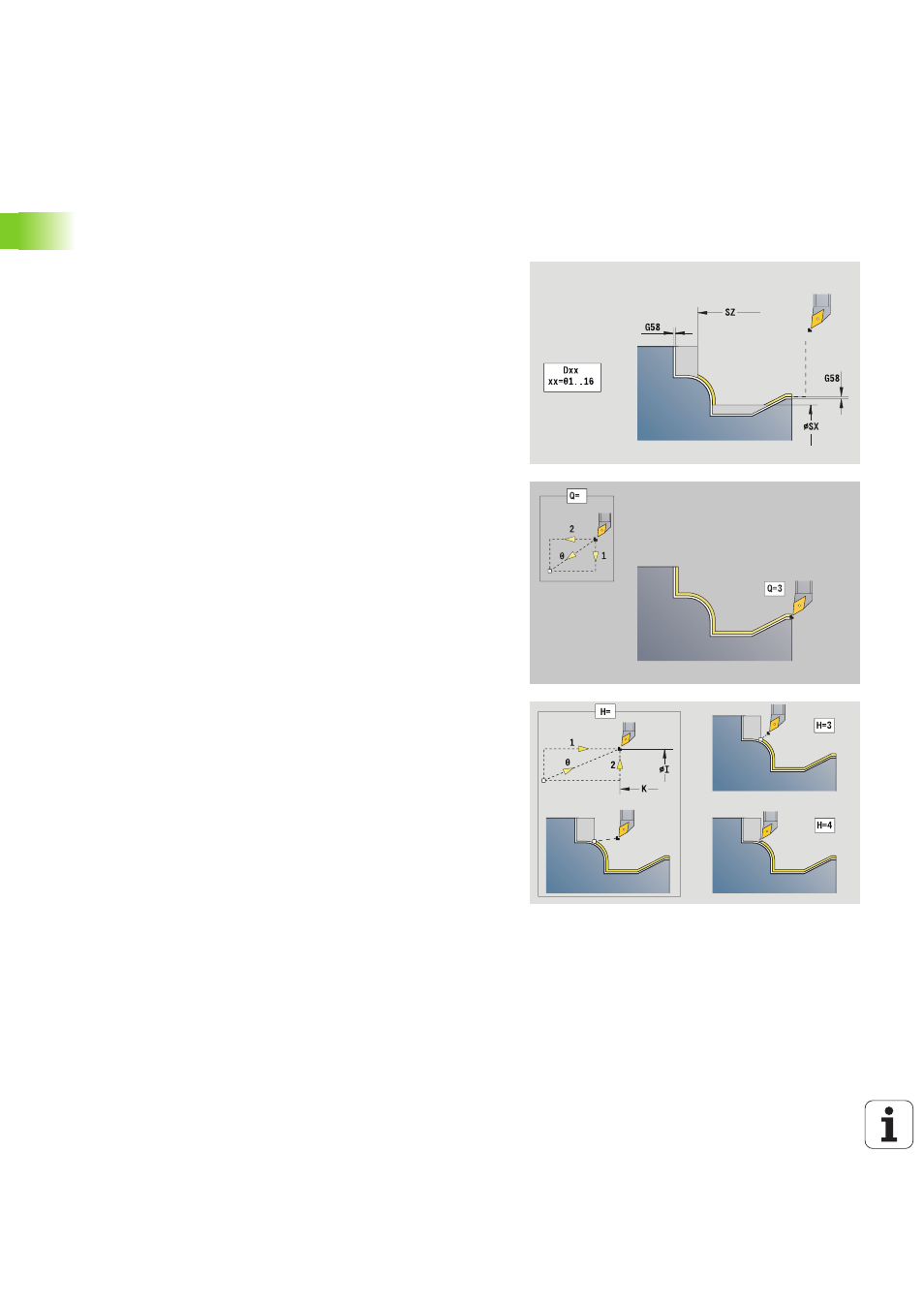

2.7 Units – Finition
2.7
Units – Finition
Unit "Finition ICP"
L'Unit exécute la finition en une seule passe du contour défini au
moyen d'ICP de "NS à NE".
Nom de l'unit : G890_ICP / cycle : G890 (voir page 293)
Accès à la base de données technologiques :
Type d'usinage : finition
Paramètres variables : F, S
Formulaire Contour
B
Activer la CRD (Type de compensation du rayon de
plaquette)
0: automatique
1: Outil à gauche (G41)
2: Outil à droite (G42)
3: automatique sans correction de l'angle de l'outil
4: outil à gauche (G41) sans correction de l'angle de l'outil
5: outil à droite (G42) sans correction de l'angle de l'outil
HR
Sens d'usinage principal
0: automatique
1: +Z
2: +X
3: -Z
4: -X
SX, SZ
Limitation de coupe (SX: cote au diamètre) – (par défaut:
Pas de limitation de coupe)
Autres paramètres du formulaire Contour : voir page 62
Formulaire cycle
Q
Mode d'approche (par défaut: 0)
0: sélection automatique – la Commande numérique
vérifie :
Approche en diagonale
d'abord Sens X, puis Z
Equidistance (même distance) autour de l'obstacle
Omission des premiers éléments de contour si la
position initiale est inaccessible
1: d'abord X, puis Z
2: d'abord Z, puis X
3: Pas d'approche – L'outil se trouve à proximité du point
initial
