3 units – fraisage, axe y, Unit "fraisage de contour icp plan xy – HEIDENHAIN SW 54843x-03 DIN Programming Manuel d'utilisation
Page 175
HEIDENHAIN MANUALplus 620, CNC PILOT 640
175
3.3 Units – F
raisag
e
, ax
e Y
3.3 Units – Fraisage, axe Y

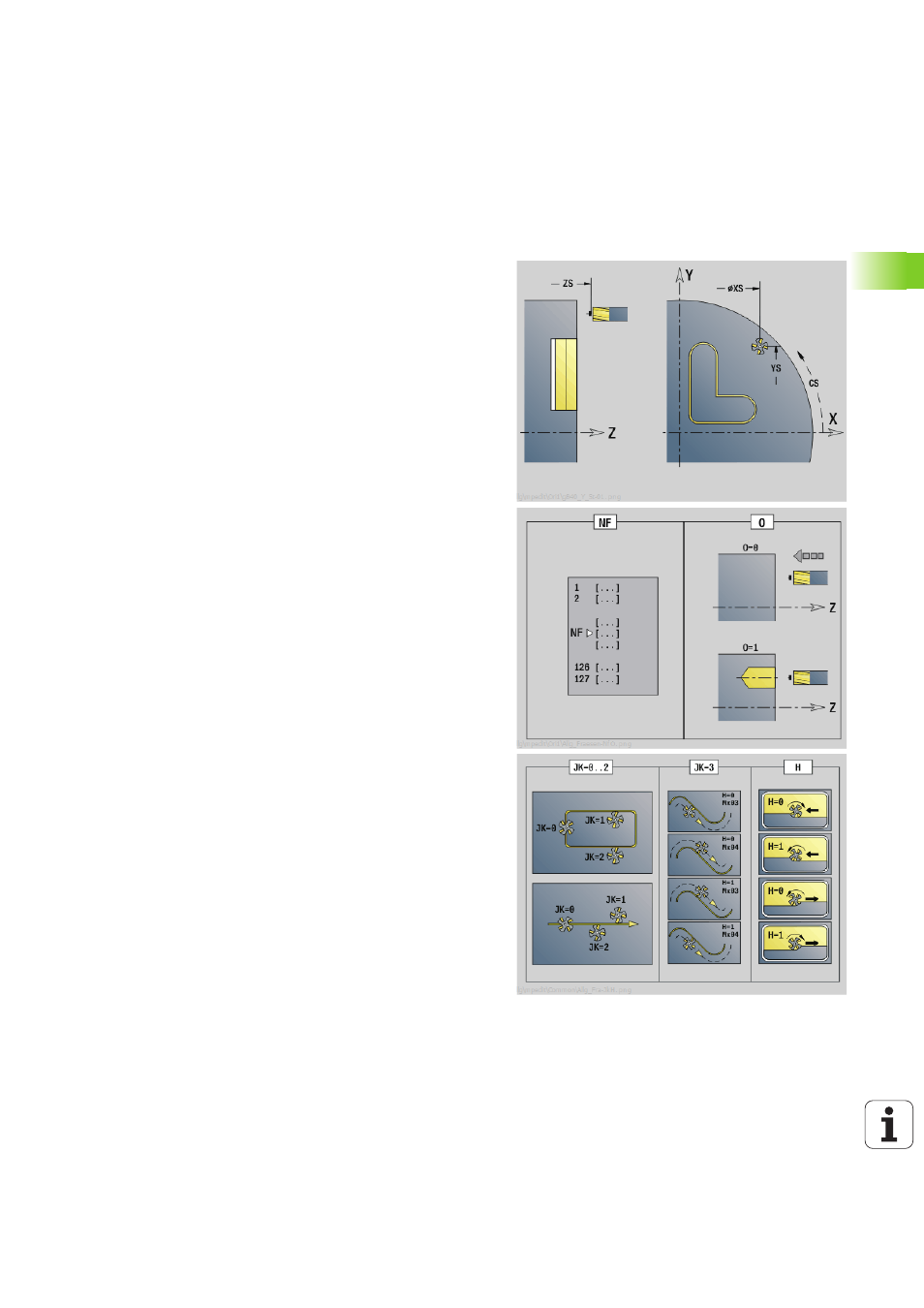

Unit "Fraisage de contour ICP plan XY"
L'Unit usine le contour défini avec ICP dans le plan XY.
Nom de l'unit : G840_Con_Y_Front / cycle : G840 (voir page 364)
Accès à la base de données technologiques :
Type d'usinage : finition de fraisage
Paramètres variables: F, S, FZ, P
Paramètres du formulaire Contour
FK
NS
Numéro de séquence initial du contour
NE
No séqu. finale contour
Z1
Bord supérieur de fraisage
P2
Profondeur contour
Paramètres du formulaire Cycle
JK
Lieu de fraisage
JK=0: sur le contour
JK=1, contour fermé: à l'intérieur du contour
JK=1, contour ouvert: à gauche du contour
JK=2, contour fermé: à l'extérieur du contour
JK=2, contour ouvert: à droite du contour
JK=3 en fonction de H et MD
H
Sens d'usinage
0 : en opposition
1 : en avalant
P
Plongée max.
I
Surépaisseur parallèle au contour
K
Surépaisseur, sens de la plongée
FZ
Avance plongée
E
Avance réduite
R
Rayon d'approche
O
Comportement de plongée
0: droite – Le cycle déplace l'outil au point initial, plonge
en avance travail et fraise le contour.
1: dans l'avant-trou – Le cycle positionne l'outil au-
dessus de la position de pré-perçage, plonge et fraise le
contour.
NF
Marque de position (seulement quand O=1)
RB
Plan de retrait
Autres formulaires : voir page 60
