Arc de cercle plan YZ G182/G183 Géo

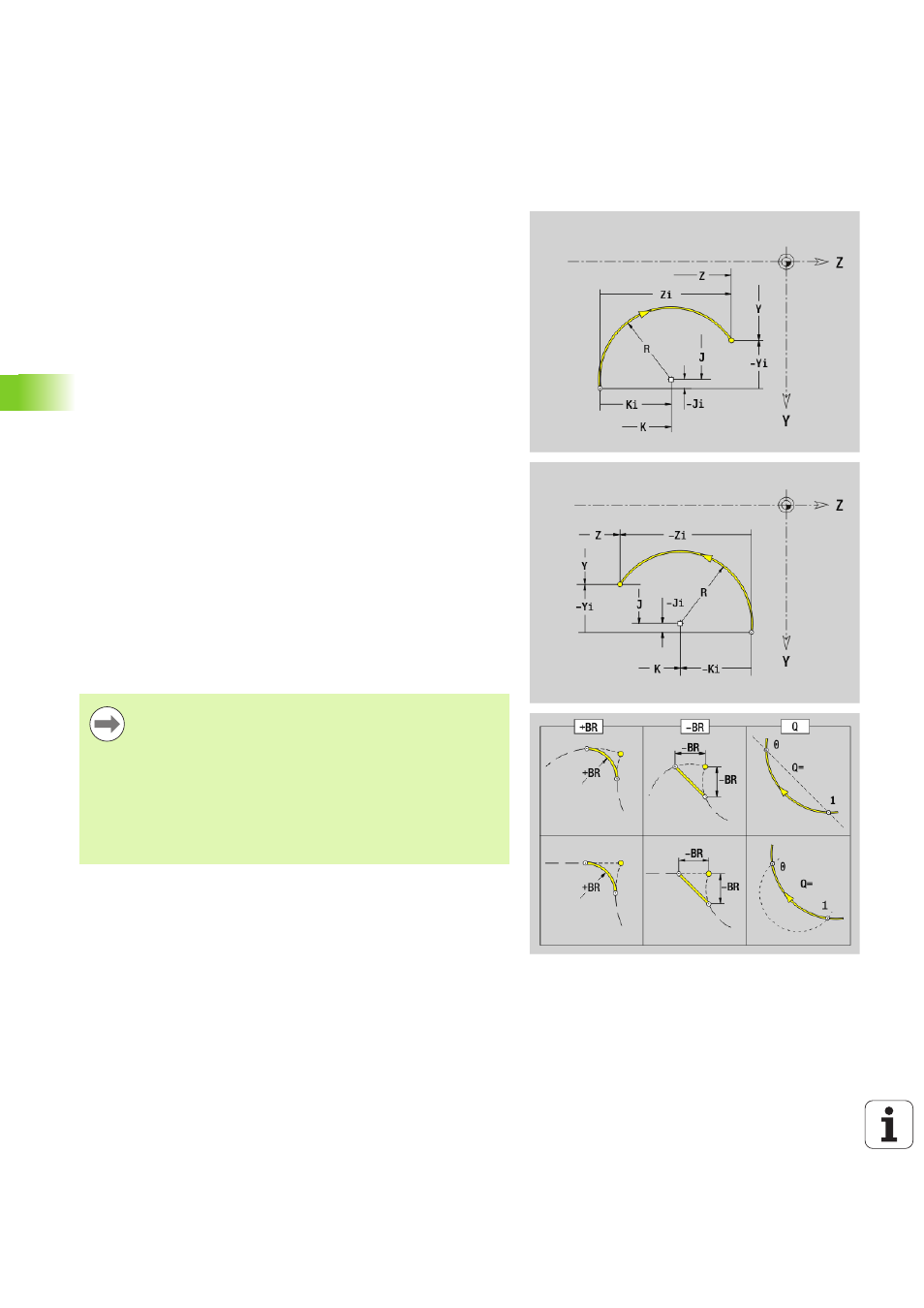

La fonction G182/G183 définit un arc de cercle dans un contour du
plan YZ. Sens de rotation: voir figure d'aide
Paramètres
Y
Point final (cote du rayon)
Z
Point final
R
Rayon
J
Centre (sens Y)
K
Centre (sens Z)
Q
Point d'intersection. Point final lorsque l'arc de cercle coupe
une droite ou un arc de cercle (par défaut: 0):
0: point d'intersection proche
1: point d'intersection éloigné
BR
Chanfrein/arrondi. Définit la transition vers l'élément de
contour suivant. Programmez le point final théorique si vous
indiquez un chanfrein/arrondi.
aucune donnée : raccordement tangentiel
BR=0: Raccordement non tangentiel
BR\>0: Rayon de l'arrondi
BR<0: Largeur du chanfrein
PZ
Point final (rayon polaire ; référence : point zéro pièce)
W
Point final (angle polaire ; référence : point zéro pièce)
PM
Centre (rayon polaire ; référence : point zéro pièce)
WM Centre (angle polaire ; référence : point zéro pièce)
AR
Angle initial (angle perpendiculaire à l'axe rotatif)
AN
Angle final (angle perpendiculaire à l'axe rotatif)
Programmation
Y, Z : en absolu, en incrémental, avec effet modal ou "?"
J, K : en absolu ou en incrémental
PZ, W, PM, WM : absolu ou incrémental
ARi : angle par rapport à l'élément précédent
ANi : angle par rapport à l'élément suivant
Le point final ne doit pas être le point initial (pas de
cercle entier).
