HEIDENHAIN MANUALplus 620, CNC PILOT 640
341
4.22 Cy
cles de perçag
e

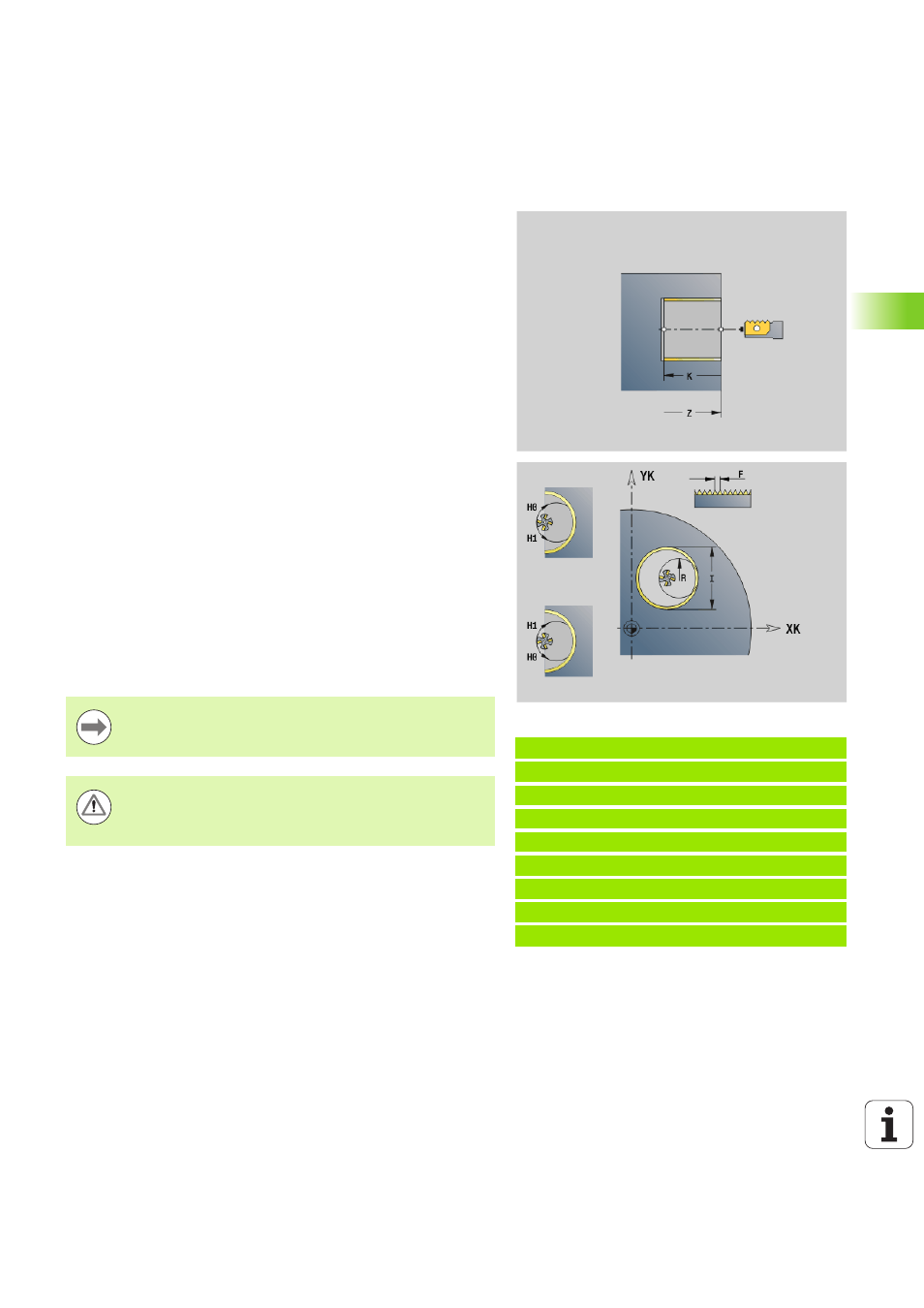

Fraisage de filet axial G799
G799 fraise un filet dans un trou existant.
Positionnez l'outil au centre du trou avant d'appeler la fonction G799.
Le cycle positionne l'outil à l'intérieur du trou, au niveau du "point final
du filet". L'outil effectue ensuite une course d'approche avec le "rayon
d'approche R" et fraise le filet. L'outil se déplace alors de la valeur de
pas "F" à chaque rotation. Pour terminer, le cycle dégage l'outil et celui-
ci retourne au point de départ. Dans le paramètre V, vous programmez
si le filetage peut être fraisé en un tour avec une fraise multidents
(peigne) ou en plusieurs tours avec une fraise monodent.
Beispiel: G799
%799.nc
[G799]
N1 T9 G195 F0.2 G197 S800
N2 G0 X100 Z2
N3 M14
N4 G110 Z2 C45 X100
N5 G799 I12 Z0 K-20 F2 J0 H0
N6 M15
FIN
Paramètres
I
Diamètre de taraudage
Z
Point de départ Z
K
Profondeur du filet
R
Rayon d'approche
F
Pas du filet
J
Sens du filet (par défaut : 0)
0 : filet à droite
1 : filet à gauche
H
Mode de fraisage (par défaut : 0)
0 : en opposition
1 : en avalant
V
Méthode de fraisage
0: le filetage est usiné avec une hélice de 360°
1 : le filetage est usiné avec plusieurs hélices (outil
monodent)
Pour le cycle G799, utilisez des fraises à fileter.
Attention, risque de collision
Si vous programmez le "rayon d'approche R", tenez
compte du diamètre du trou et de celui de la fraise.
