Programmation DIN
4.35 F
onctions G des commandes antér
ieur
e
s
Gorge G86

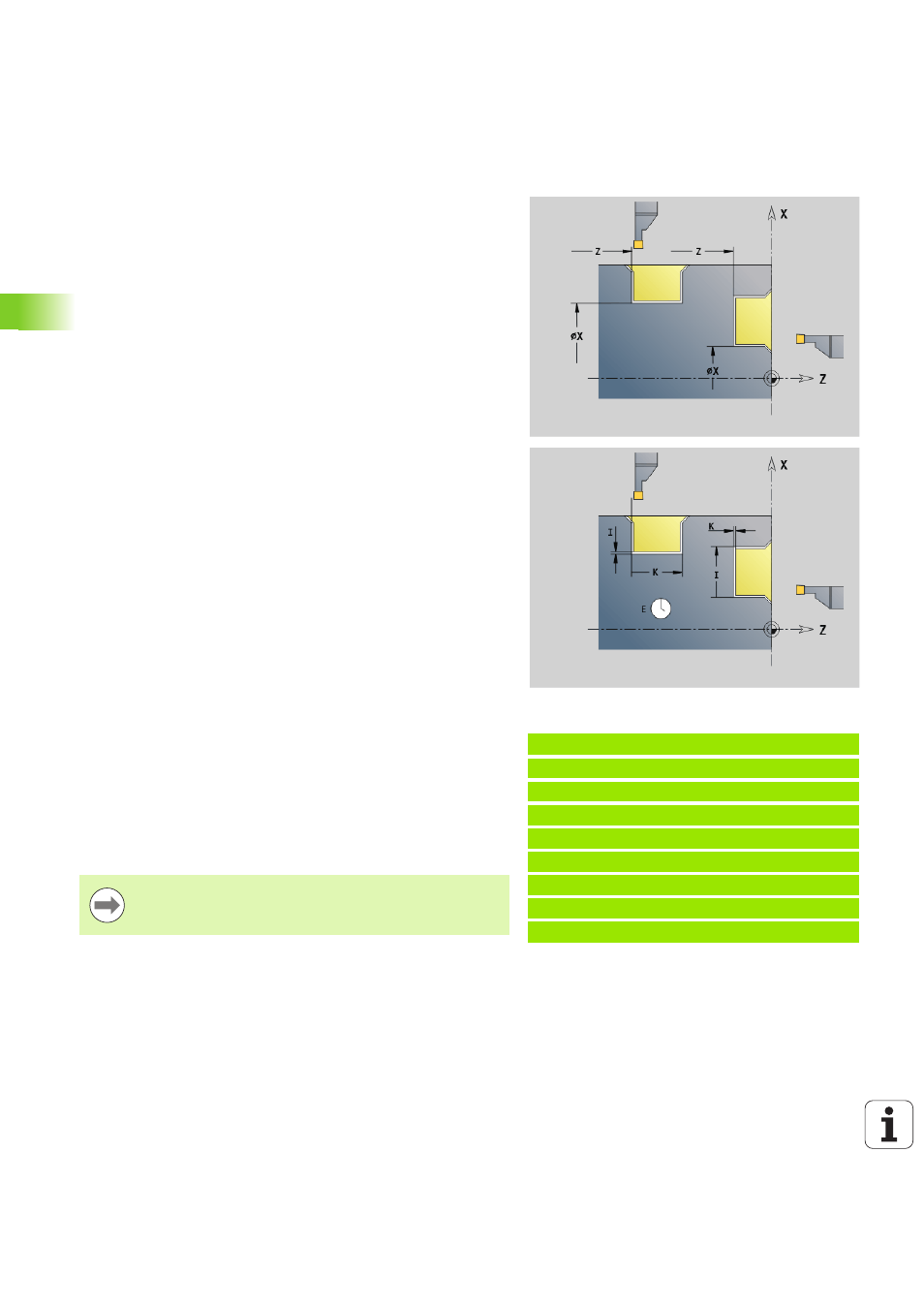

La fonction G86 permet de créer des gorges simples radiales et
axiales avec chanfreins. La Commande numérique s'appuie sur la
"position de l'outil" pour calculer une gorge radiale/axiale ou une gorge
intérieure/extérieure.
"Surépaisseur" programmée : ébauche d'abord, puis finition
La fonction G86 crée des chanfreins sur les bords de la gorge. Si vous
ne voulez pas de chanfreins, positionnez l'outil à une distance
suffisante de la gorge. Calcul de la position initiale XS (Cote de
diamètre):
Paramètres
X
Coin au fond (Cote au diamètre)
Z
Coint au fond
I
Gorge radiale: Surépaisseur
I\>0: Surépaisseur (ébauche et finition)
I=0: Pas de finition
Gorge axiale: Largeur de gorge
I\>0: Largeur de gorge
Aucune donnée : largeur de la gorge = largeur de l'outil
K
Gorge radiale: Largeur de gorge
K\>0: Largeur de gorge
Aucune donnée : largeur de la gorge = largeur de l'outil
Gorge axiale: Surépaisseur
K\>0: Surépaisseur (ébauche et finition)
K=0: Pas de finition
E
Temporisation (durée de rotation à vide): (par défaut: Durée
d'une rotation)
Avec surépaisseur de finition: Seulement pour la finition
Sans surépaisseur de finition: A chaque plongée
Beispiel: G86
. . .
N1 T30 G95 F0.15 G96 S200 M3
N2 G0 X62 Z2
N3 G86 X54 Z-30 I0.2 K7 E2 [radial]
N4 G14 Q0
N5 T38 G95 F0.15 G96 S200 M3
N6 G0 X120 Z1
N7 G86 X102 Z-4 I7 K0.2 E1 [axial]
. . .
XS = XK + 2 * (1,3 – b)
XK:
Diamètre du contour
b:
Largeur du chanfrein
La Correction du rayon de la dent est appliquée.
Les surépaisseurs ne sont pas prises en compte.
