HEIDENHAIN MANUALplus 620, CNC PILOT 640
275
4.1
7
Cy
cles de t
our
nag
e
a
v
ec suivi du cont
our
Paramètres
V

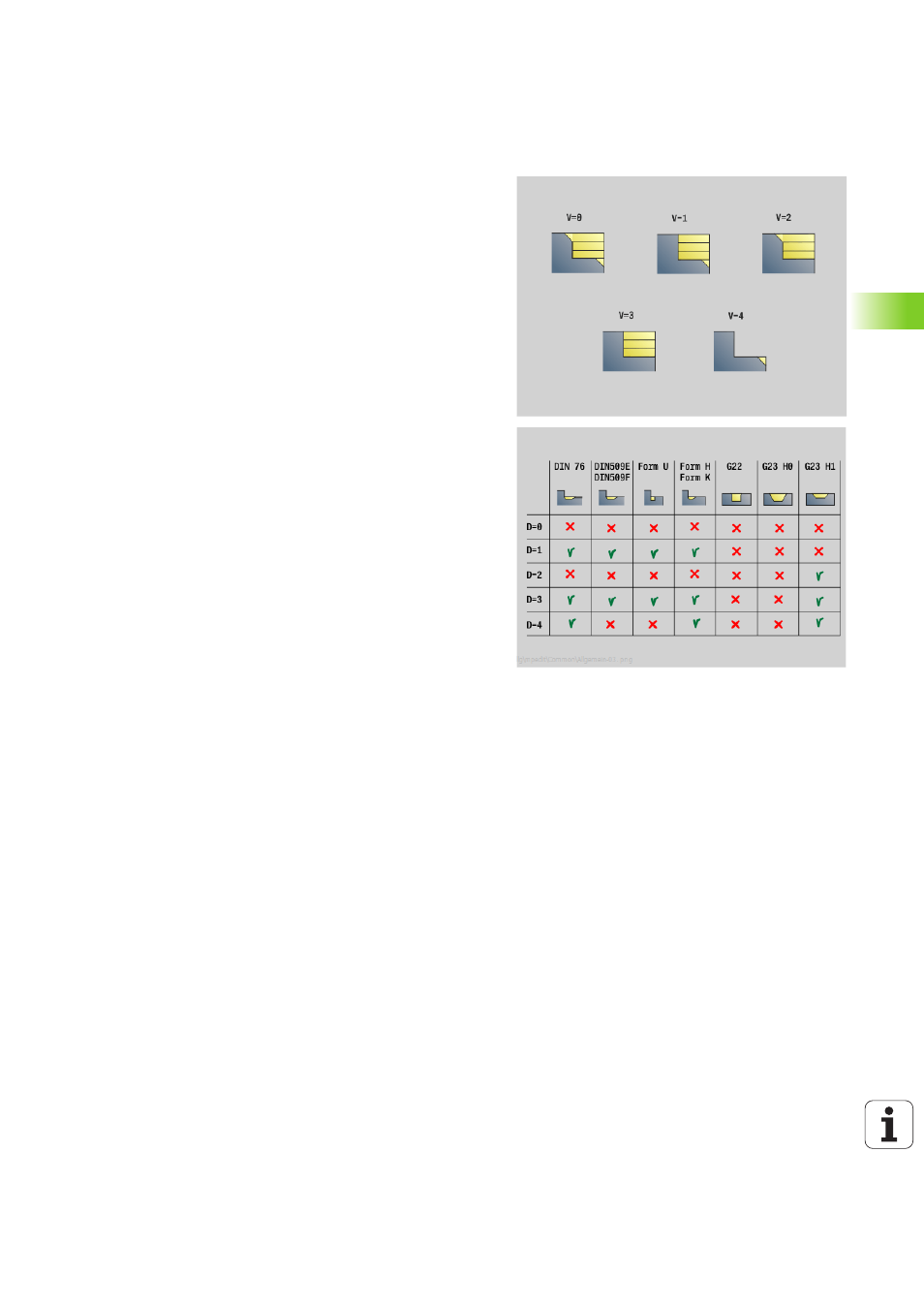

Marqueur de début/fin (par défaut : 0). Un chanfrein/arrondi
est usiné:
0: Au début et à la fin
1: Au début
2: A la fin
3: Aucun usinage
4: Usinage d'un chanfrein/arrondi – Pas l'élément de base
(condition: Section de contour avec un élément)
D
Masquer les éléments (voir figure)
U
Lignes de coupe sur les éléments horizontaux (par défaut : 0) :
0: Non (répartition homogène des lignes de coupe)
1: Oui (le cas échéant, répartition non homogène des
lignes de coupe)
O
Masquer la contre-dépouille
0: les contre-dépouilles sont usinées
1: les contre-dépouilles ne sont pas usinées
B
Avance chariots pour usinage 4 axes (pour l'instant non
disponible)
XA, ZA Point initial pièce brute (actif seulement, si aucune pièce
brute n'a été programmée) :
XA, ZA non programmés : le contour de la pièce brute est
calculé à partir de la position d'outil et du contour ICP.
XA, ZA programmés : définition du coin du contour de la
pièce brute.
