510
Programmation DIN pour l' axe Y
6.2 Cont
ours dans le plan XY

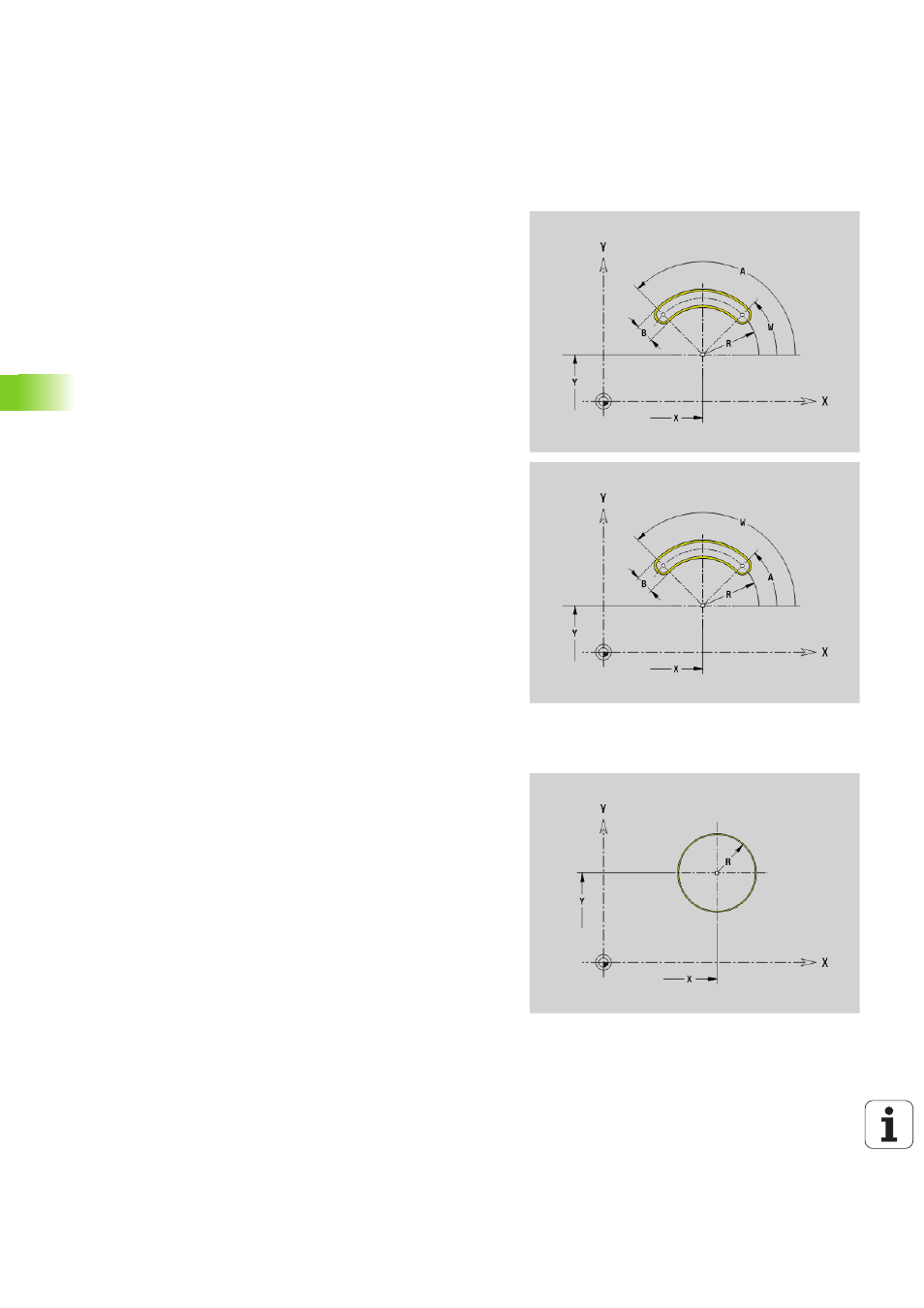

Rainure circulaire, plan XY G372/G373 Géo
G372/G373 définit une rainure circulaire dans le plan XY.
G372: Rainure circulaire sens horaire
G373: Rainure circulaire sens anti-horaire
Cercle entier plan XY G374 Géo
G374 définit un cercle entier dans le plan XY.
Paramètres
X
Centre de courbure de la rainure (cote du rayon)
Y
Centre de courbure de la rainure
R
Rayon de courbure (référence : centre de la rainure)
A
Angle initial (référence: Axe X positif (par défaut: 0°)
W
Angle final (référence: Axe X positif (par défaut: 0°)
B
Largeur de la rainure
P
Profondeur/hauteur (par défaut: "P" issue de G308)
P<0: Poche
P\>0: Ilot
I
Diamètre de limitation (pour limitation de coupe)
aucune donnée : "X" issu de l'identifiant de section
"I" écrase le "X" issu de l'identifiant de section
Paramètres
X
Centre du cercle (cote du rayon)
Y
Centre de cercle
R
Rayon du cercle
P
Profondeur/hauteur (par défaut: "P" issue de G308)
P<0: Poche
P\>0: Ilot
I
Diamètre de limitation (pour limitation de coupe)
aucune donnée : "X" issu de l'identifiant de section
"I" écrase le "X" issu de l'identifiant de section
