Déplacement circulaire g2/g3, 1 0 déplacements linéair e s et cir c ulair e s – HEIDENHAIN SW 54843x-03 DIN Programming Manuel d'utilisation
Page 253
HEIDENHAIN MANUALplus 620, CNC PILOT 640
253
4.1
0
Déplacements linéair
e
s et cir
c
ulair
e
s

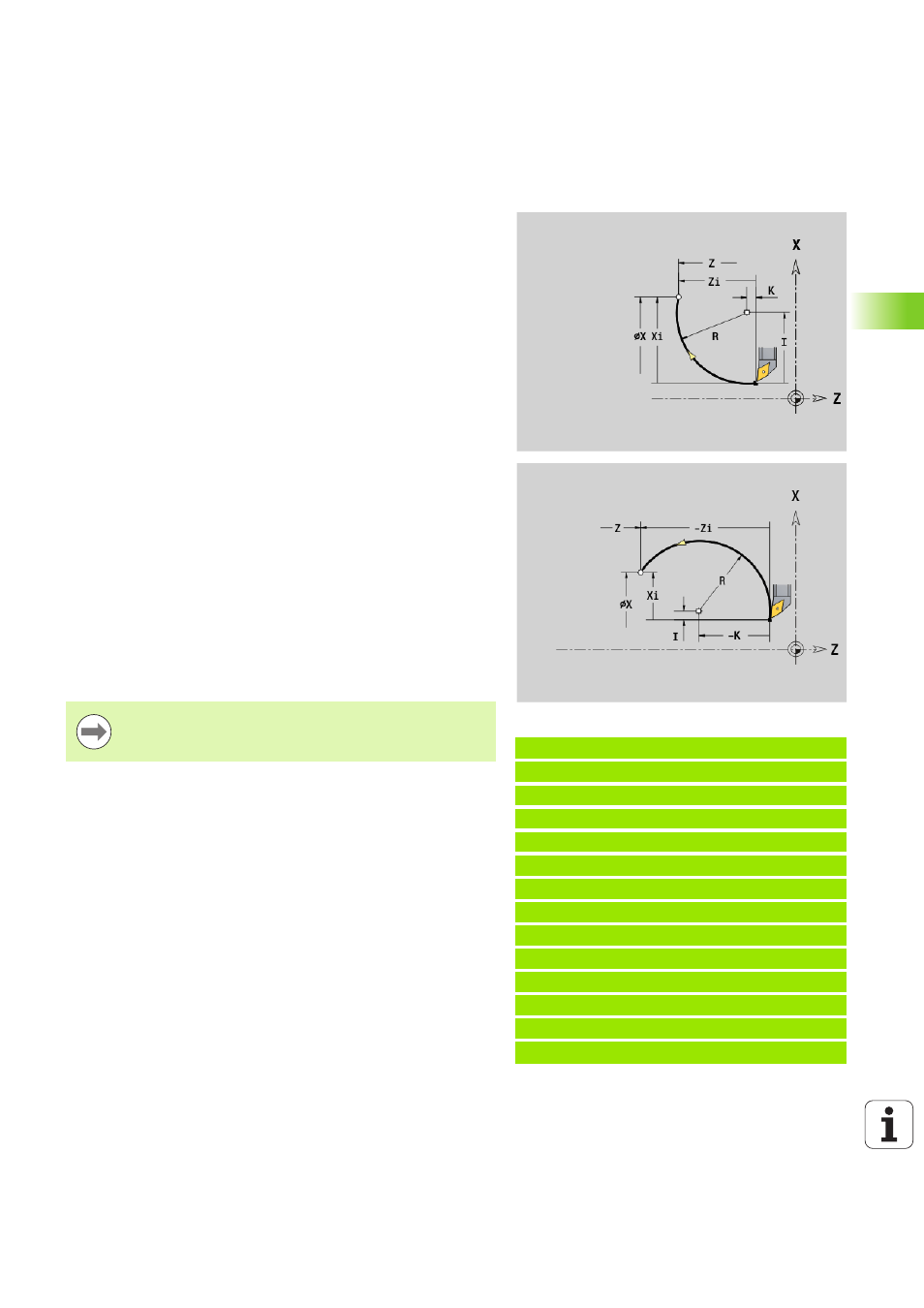

Déplacement circulaire G2/G3
La fonction G2/G3 effectue un déplacement circulaire jusqu'au "point
final", avec l'avance d'usinage. Le centre est coté en incrémental.
Sens de rotation (voir figure d'aide):
G2: Sens horaire
G3: Sens anti-horaire
Beispiel: G2, G3
N1 T3 G95 F0.25 G96 S200 M3
N2 G0 X0 Z2
N3 G42
N4 G1 Z0
N5 G1 X15 B-0.5 E0.05
N6 G1 Z-25 B0
N7 G2 X45 Z-32 R36 B2
N8 G1 A0
N9 G2 X80 Z-80 R20 B5
N10 G1 Z-95 B0
N11 G3 X80 Z-135 R40 B0
N12 G1 Z-140
N13 G1 X82 G40
. . .
Paramètres
X
Point final (Cote au diamètre)
Z
Point final
R
Rayon (0 < R <= 200 000 mm)
I
Centre incrémental (distance point initial – centre; cote de
rayon)
K
Centre incrémental (distance point initial – centre)
Q
Point d'intersection. Point final lorsque l'arc de cercle coupe
une droite ou un arc de cercle (par défaut: 0):
0: point d'intersection proche
1: point d'intersection éloigné
BR
Chanfrein/arrondi. Définit la transition vers l'élément de contour
suivant. Programmez le point final théorique si vous indiquez un
chanfrein/arrondi.
Aucune donnée : raccordement tangentiel
BR=0: raccordement non tangentiel
BR\>0: rayon de l'arrondi
BR<0: largeur du chanfrein
BE
Facteur d'avance spéciale pour chanfrein/arrondi (par défaut: 1)
Avance spéciale = avance active * BE (0 < BE <= 1)
Programmation X, Z : absolu, incrémental, modal ou "?"
