Unit "fraisage de gorges icp – HEIDENHAIN SW 54843x-03 DIN Programming Manuel d'utilisation
Page 137
HEIDENHAIN MANUALplus 620, CNC PILOT 640
137
2.9 Units – F
raisag
e
f
a
ce fr
ontale
Unit "Fraisage de gorges ICP"

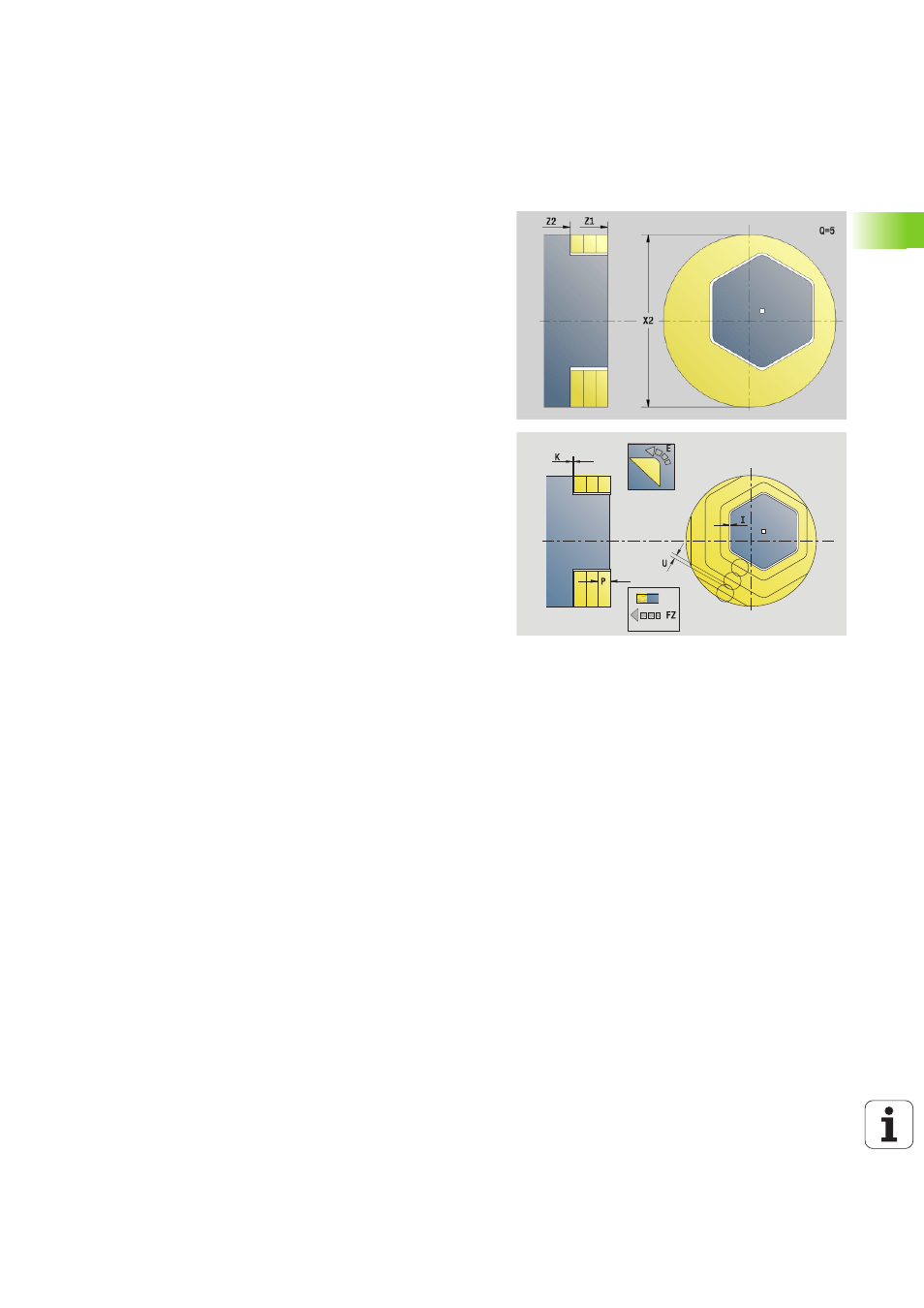

L'Unit usine le contour défini avec ICP sur la face frontale.
Nom de l'Unit : G797_ICP / Cycle : G797 (voir page 358)
Accès à la base de données technologiques :
Type d'usinage : fraisage finition
Paramètres variables: F, S, FZ, P
Formulaire Contour
FK
NS
Numéro de séquence initial du contour
Z1
Bord supérieur de fraisage
Z2
Fond de fraisage
X2
Diamètre de limitation
Formulaire cycle
QK
Type d'usinage
Ebauche
Finition
J
Sens de fraisage
0 : unidirectionnel
1 : bidirectionnel
H
Sens d'usinage
0 : en opposition
1 : en avalant
P
Plongée max.
I
Surépaisseur parallèle au contour
K
Surépaisseur, sens de la plongée
FZ
Avance plongée
E
Avance réduite
U
Facteur de recouvrement
Autres formulaires : voir page 60
