24 usinag e sur la f a ce fr ontale/ar ri èr e – HEIDENHAIN SW 54843x-03 DIN Programming Manuel d'utilisation
Page 346
![background image](/files/815784/content/doc346.png)
346
Programmation DIN
4.24 Usinag
e sur la f
a
ce fr
ontale/ar
ri
èr
e

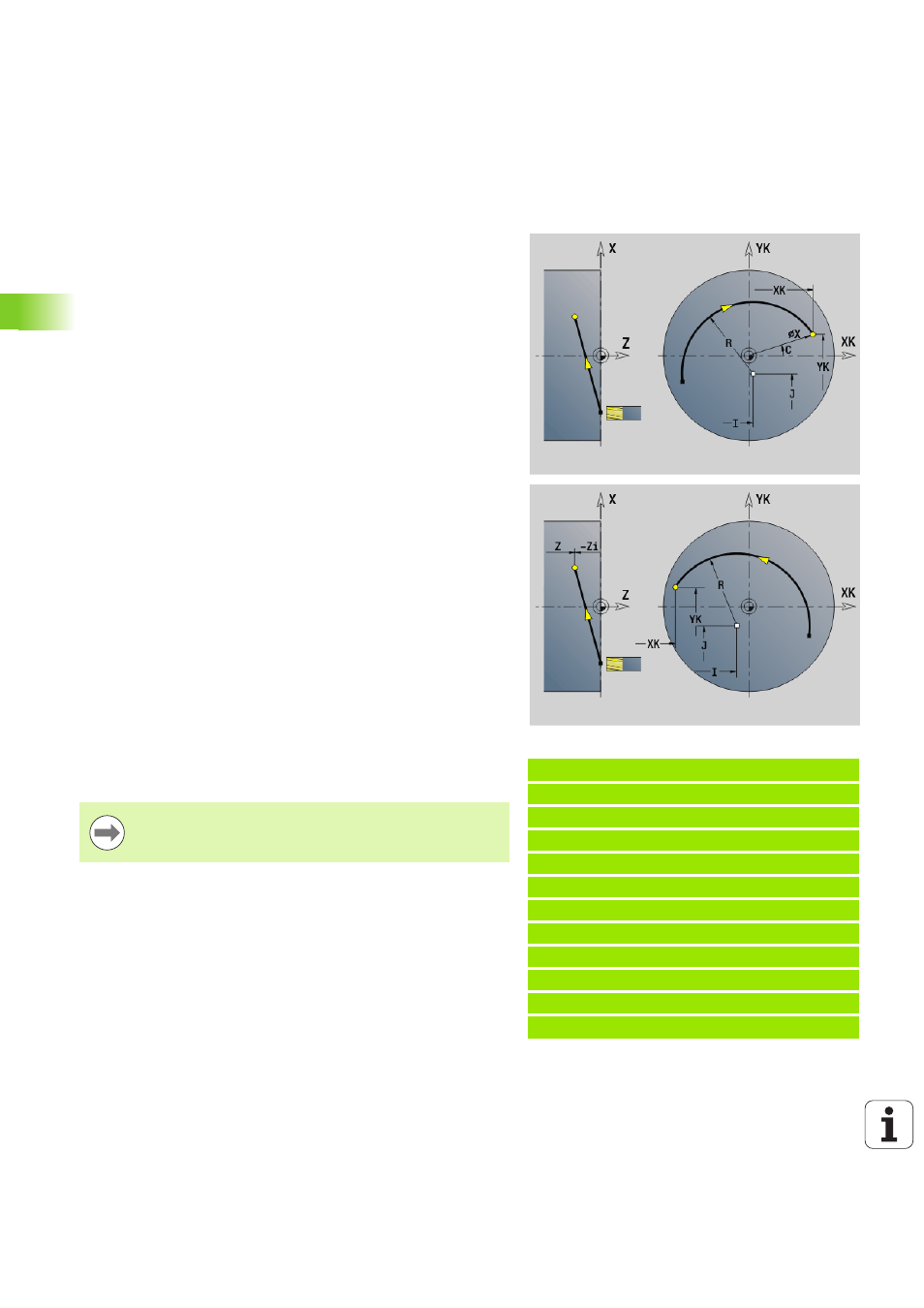

Arc de cercle sur la face frontale/arrière G102/
G103
La fonction G102/G103 déplace l'outil de manière circulaire jusqu'au
"point final", avec l'avance définie. Sens de rotation: voir figure d'aide.
Beispiel: G102, G103
. . .
N1 T7 G197 S1200 G195 F0.2 M104
N2 M14
N3 G110 C0
N4 G0 X100 Z2
N6 G100 XK20 YK5
N7 G101 XK50
N8 G103 XK5 YK50 R50 [arc de cercle]
N9 G101 XK5 YK20
N10 G102 XK20 YK5 R20
N12 M15
. . .
Paramètres
X
Point final (Cote au diamètre)
C
Angle final – Direction angulaire: voir figure d'aide
XK
Point final (cartésien)
YK
Point final (cartésien)
R
Rayon
I
Centre (cartésien)
J
Centre (cartésien)
K
Centre avec H=2, 3 (sens Z)
Z
Point final (par défaut: Position courante en Z)
H
Plan du cercle (plan d'usinage) – (par défaut: 0)
H=0, 1: Usinage dans le plan XY (face frontale)
H=3: Usinage dans le plan YZ.
H=3: Usinage dans le plan XZ.
Paramètres pour la définition de géométrie (G80)
AN
Angle avec l'axe positif XK
BR
Chanfrein/arrondi. Définit la transition vers l'élément de
contour suivant. Programmez le point final théorique si vous
indiquez un chanfrein/arrondi.
Aucune donnée : raccordement tangentiel
BR=0: raccordement non tangentiel
BR\>0: rayon de l'arrondi
BR<0: largeur du chanfrein
Q
Point d'intersection. Point final lorsque la droite coupe un arc
de cercle (par défaut: 0):
Q=0: Point d'intersection proche
Q=1: Point d'intersection éloigné
Les paramètres AN, BR et Q doivent être utilisés pour un
cycle, et uniquement dans une description de contour qui
se termine par G80.
