Unit "Fraisage contour Figures Face frontale"

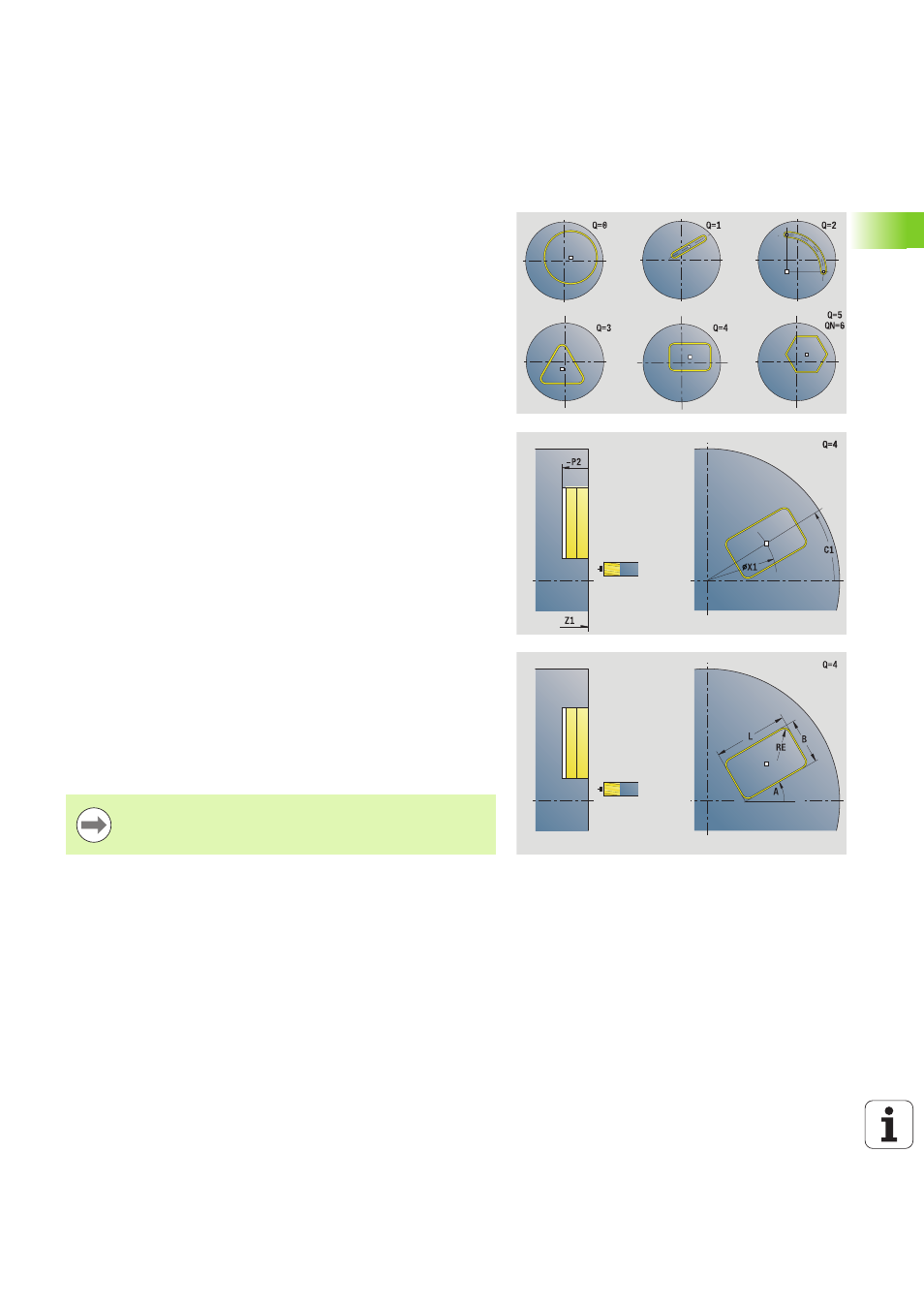

L'Unit usine le contour défini avec Q sur la face frontale.
Nom de l'unit : G840_Fig_Front_C / cycle : G840 (voir page 364)
Accès à la base de données technologiques :
Type d'usinage : fraisage
Paramètres variables: F, S, FZ, P
Formulaire Figure
Q
Type de figure
0 : cercle entier
1 : rainure linéaire
2 : rainure circulaire
3 : triangle
4 : rectangle, carré
5 : polygone
QN
Nombre de coins du polygone – seulement avec Q = 5
(polygone)
X1
Diamètre centre de la figure
C1
Angle centre figure
Z1
Bord supérieur de fraisage
P2
Profondeur figure
L
Longueur arête/cote sur plat
L\>0: longueur d'arête
L<0: cote sur plat (diamètre intérieur du cercle) pour un
polygone
B
Largeur du rectangle
RE
rayon d'arrondi
A
Angle avec axe X
Q2
Sens de rotation de la rainure – seulement avec Q = 2
(rainure circulaire)
cw : sens horaire
ccw : sens anti-horaire
W
Angle point final de la rainure – seulement avec Q = 2
(rainure circulaire)
Ne programmer que les paramètres ayant un rapport avec
le type de figure sélectionné.
