326
Programmation DIN
4.21 Cy
cles de dég
a
g
e
ments

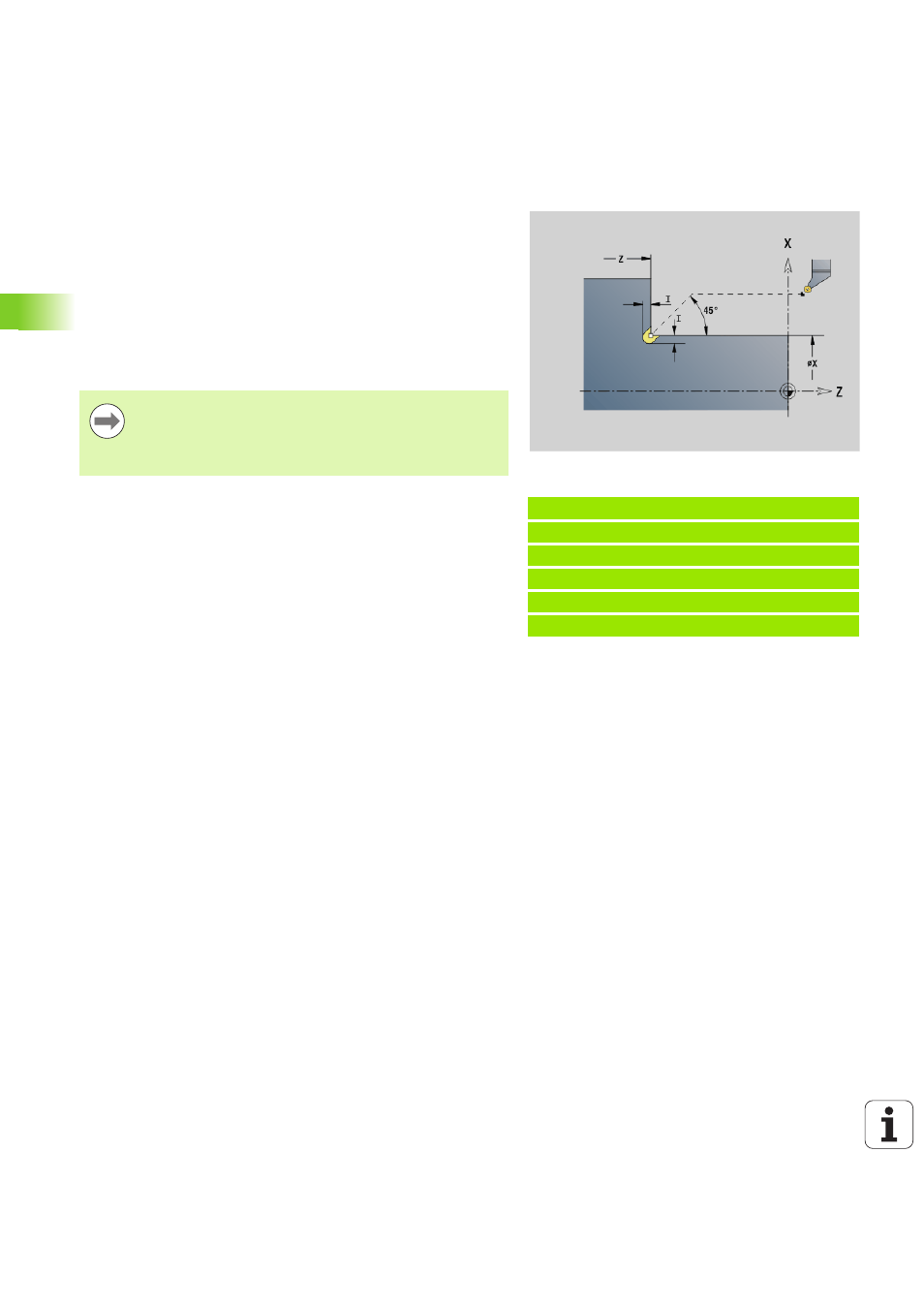

Dégagement de forme K G858
La fonction G858 réalise le dégagement. La forme usinée du contour
dépend de l'outil utilisé, car une seule passe linéaire est exécutée avec
un angle de 45°.
Position de l'outil à l'issue de l'exécution du cycle: Point de départ du
cycle
Beispiel: G858
%858.nc
[G858]
N1 T9 G95 F0.23 G96 S248 M3
N2 G0 X60 Z2
N3 G858 X50 Z-30 I0.5
FIN
Paramètres
X
Coin du contour (cote au diamètre)
Z
Coin du contour
I
Profondeur du dégagement
Le dégagement n'est exécuté que dans des angles
droits, et ceci parallèlement à l'axe longitudinal.
La correction du rayon de la dent est appliquée.
Les surépaisseurs ne sont pas converties
