Arc de cercle de contour g2/g3 géo, 3 eléments de base du cont our de t our nag e – HEIDENHAIN SW 54843x-03 DIN Programming Manuel d'utilisation
Page 206

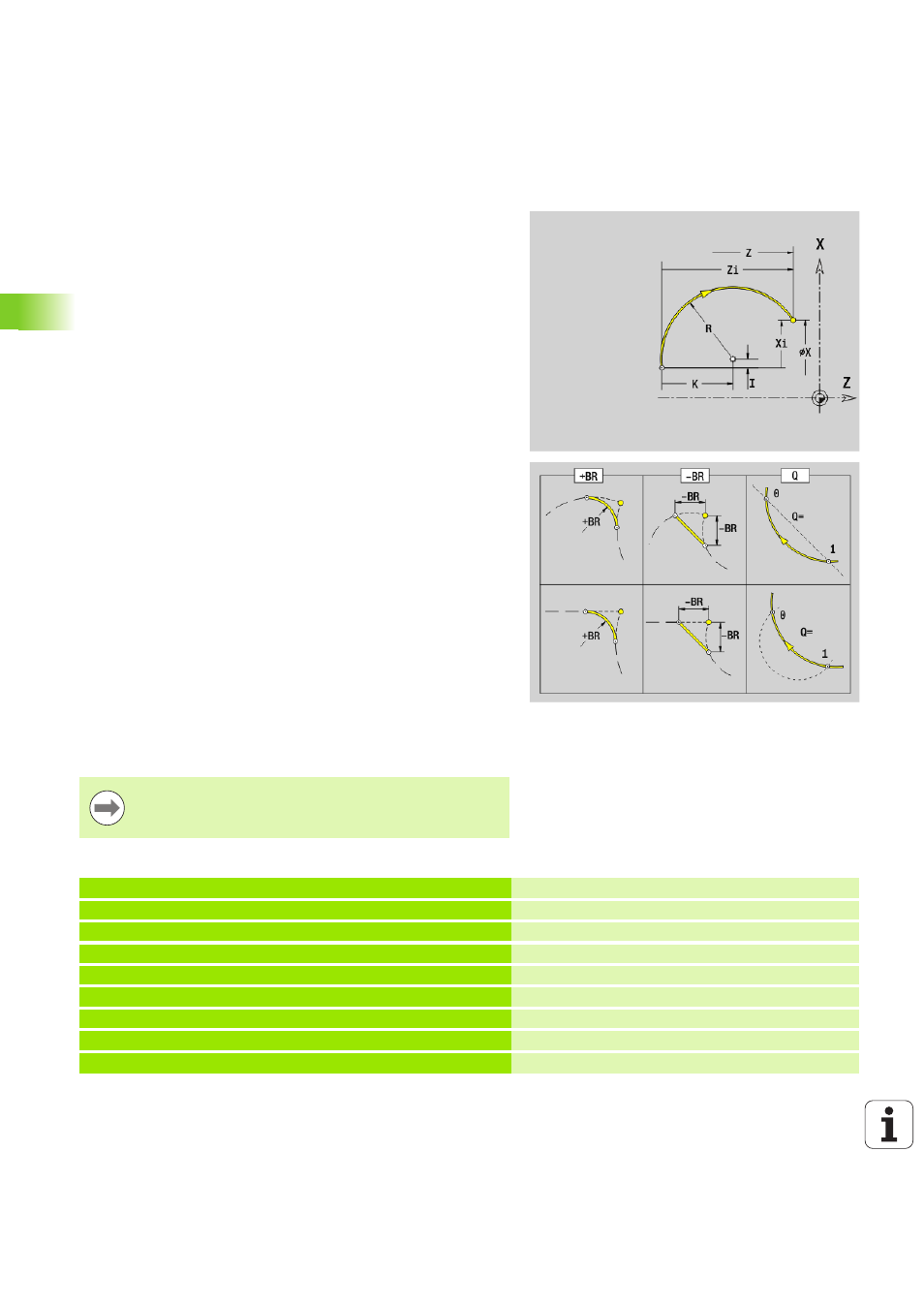

![background image](/files/815784/content/doc206.png)
206
Programmation DIN
4.3 Eléments de base du cont
our de t
our
nag
e
Arc de cercle de contour G2/G3 Géo
La fonction G2/G3 définit un arc de cercle dans un contour de tournage
avec cotation du centre en incrémental. Sens de rotation (voir figure
d'aide):
G2: Sens horaire
G3: Sens anti-horaire
Exemple: G2, G3 Géo
Paramètre
X
Point final de l'élément de contour (cote de diamètre)
Z
Point final de l'élément de contour
R
Rayon
I
Centre (distance point départ– centre, comme cote de rayon)
K
Centre (distance point départ– centre)
Q
Point d'intersection. Point final lorsque l'arc de cercle coupe
une droite ou un arc de cercle (par défaut: 0):
0: point d'intersection proche
1: point d'intersection éloigné
BR
Chanfrein/arrondi. Définit la transition vers l'élément de
contour suivant. Programmez le point final théorique si vous
indiquez un chanfrein/arrondi.
aucune donnée : raccordement tangentiel
BR=0: raccordement non tangentiel
BR\>0: rayon de l'arrondi
BR<0: largeur du chanfrein
BE, BF, BD, BP et BH (voir "Attributs d'usinage pour les éléments de
forme" à la page 203)
FP
Ne pas usiner cet élément (uniquement nécessaire pour
TURN PLUS).
0: ne pas usiner l'élément de base (cercle)
1: ne pas usiner l'élément de superposition (p. ex. chanfrein
ou arrondi)
2: ne pas usiner l'élément de base/de superposition
Programmation X, Z : absolu, incrémental, modal ou "?"
. . .
PIECE FINIE
N1 G0 X0 Z-10
N2 G3 X30 Z-30 R30
Point-cible et rayon
N3 G2 X50 Z-50 I19.8325 K-2.584
Point-cible et centre en incrémental
N4 G3 Xi10 Zi-10 R10
Point-cible en incrémental et rayon
N5 G2 X100 Z? R20
Coordonnée inconnue du point-cible
N6 G1 Xi-2.5 Zi-15
. . .
