HEIDENHAIN MANUALplus 620, CNC PILOT 640
233
4.7 Cont
ours sur la f
a
ce fr
ontale/ar
ri
èr
e

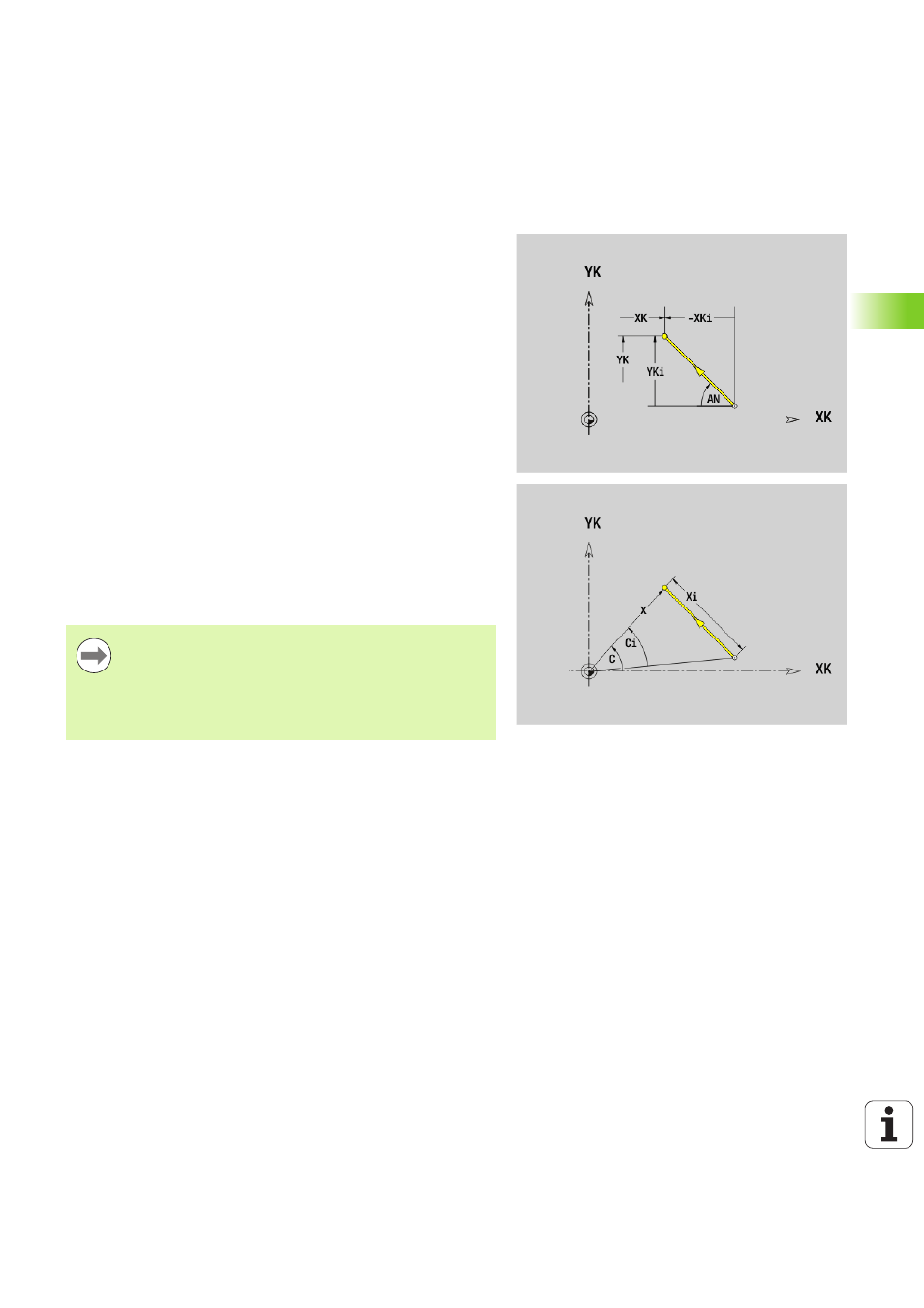

Droite sur le contour face frontale/face arrière
G101-Géo
G101 définit une droite sur un contour sur la face frontale ou arrière.
Paramètre
X
Point final en coordonnées polaires (cote de diamètre)
C
Point final en coordonnées polaires (cote d'angle)
XK
Point final en coordonnées cartésiennes
YK
Point final en coordonnées cartésiennes
AN
Angle avec l'axe positif XK
Q
Point d'intersection. Point final lorsque la droite coupe un arc de
cercle (par défaut: 0):
0: point d'intersection proche
1: point d'intersection éloigné
BR
Chanfrein/arrondi. Définit la transition vers l'élément de contour
suivant. Programmez le point final théorique si vous indiquez un
chanfrein/arrondi.
Aucune donnée : raccordement tangentiel
BR=0: raccordement non tangentiel
BR\>0: rayon de l'arrondi
BR<0: largeur du chanfrein
AR
Angle par rapport à l'axe XK positif (AR correspond à AN)
R
Longueur (rayon polaire ; référence : dernier point de contour)
Programmation
X, XK, YX : absolu, incrémentale, modal ou "?"
C : absolu, incrémental ou modal
ARi : angle de l'élément précédent
ANi : angle de l'élément suivant
