36
Programmation CN
1
.1 Pr
ogr
ammation smar
t.T
u
rn
et DIN

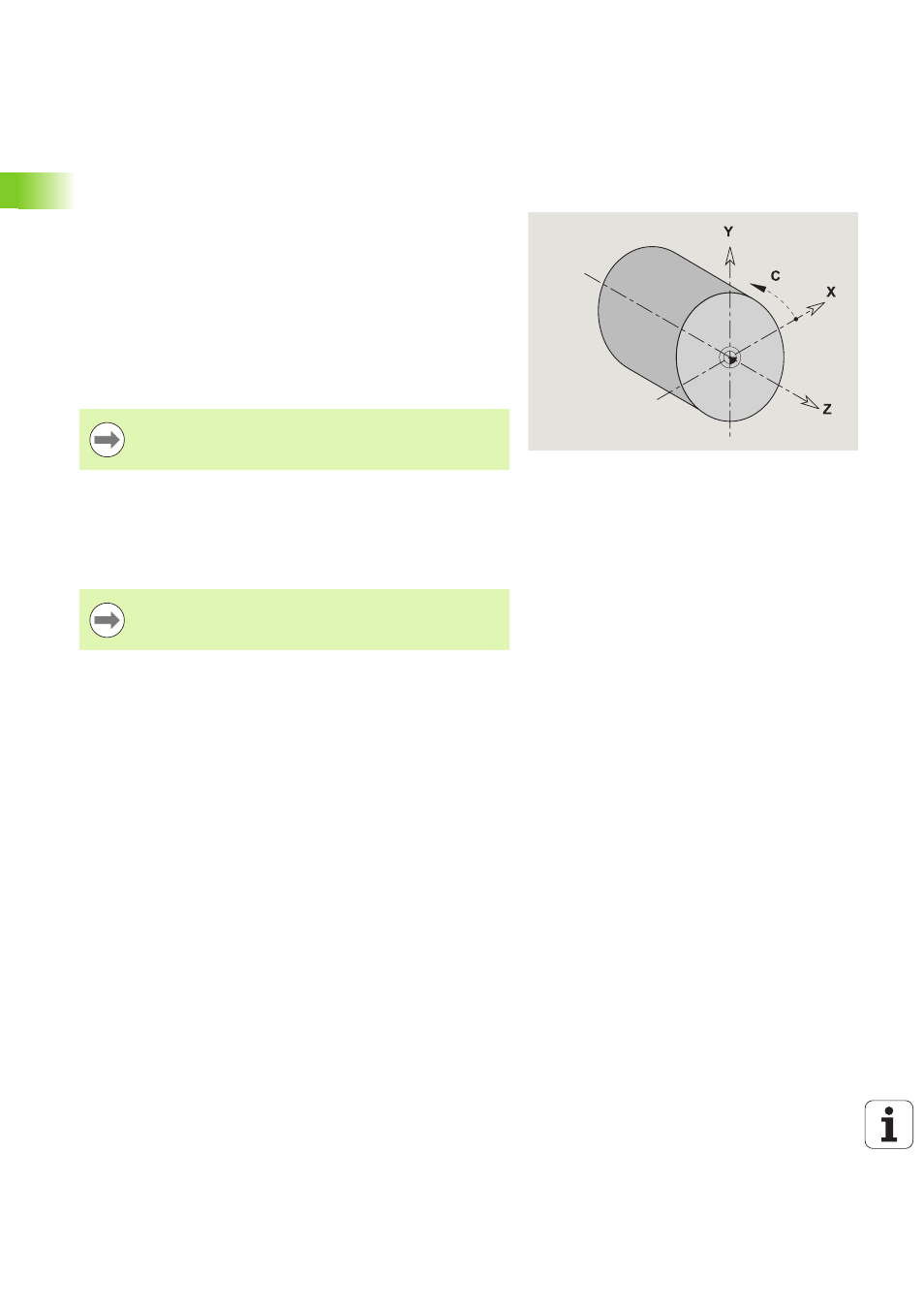

Axes linéaires et rotatifs
Axes principaux : les coordonnées des axes X, Y et Z se réfèrent au
point zéro pièce.
Axe C comme axe principal:
Les valeurs angulaires se réfèrent au "point zéro de l'axe C".
Contours avec l'axes C et usinages avec l'axe C:
Les valeurs de coordonnées sur la face frontale/arrière sont des
coordonnées cartésiennes (XK, YK) ou polaires (X, C)
Les coordonnées sur l'enveloppe sont indiquées en coordonnées
polaires (Z, C). Au lieu de "C", on peut utiliser la cote linéaire CY
("développé" au diamètre de référence).
Unités de mesure
Les programmes CN se rédigent en mètres ou en pouces (inch).
L'unité de mesure est définie dans le champ "Unité" (Voir "Section EN-
TETE PROGRAMME" à la page 48.).
L'éditeur smart.Turn ne tient compte que des lettres
d'adresse des axes configurés.
Si l'unité de mesure a été définie, elle ne peut plus être
modifiée par la suite.
