474
Cycles palpeurs : fonctions spéciales
1
7.8 ET
AL
ONNA
GE TS (cy
c
le 460, DIN/ISO:
G460)
17.8 ETALONNAGE TS (cycle 460,
DIN/ISO: G460)
Mode opératoire du cycle

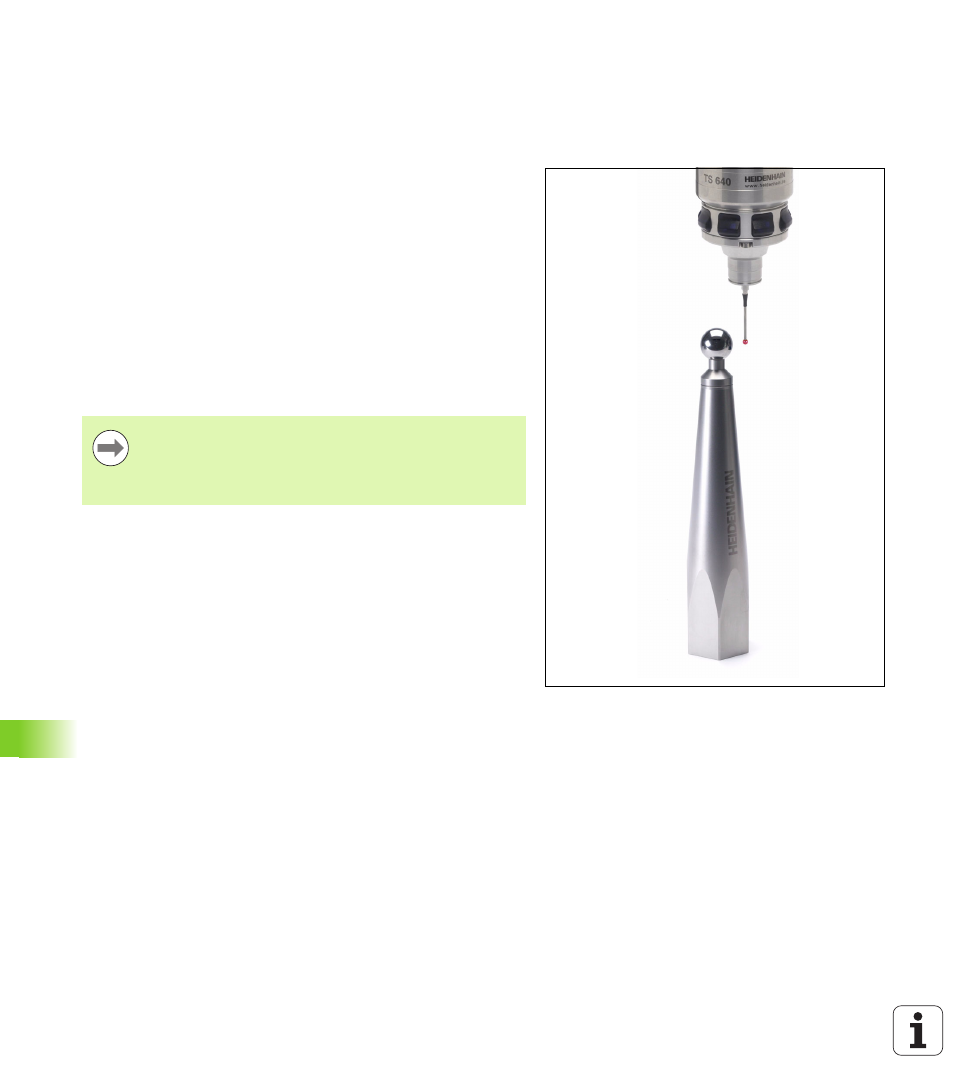

Le cycle 460 permet d'étalonner automatiquement un palpeur 3D à
commutation avec une bille précise de calibration. Il est possible
d'étalonner seulement le rayon, ou le rayon et la longueur.
1
Fixer la bille étalon, attention au risque de collision
2
Positionner manuellement l'axe du palpeur au dessus de la bille
étalon et dans le plan d'usinage, à peu près au centre de la bille
3
Le premier déplacement du cycle a lieu dans le sens négatif de
l'axe du palpeur
4
Puis le cycle détermine le centre exact de la bille dans l'axe du
palpeur
Attention lors de la programmation!
Remarques avant de programmer
Dans le programme, prépositionner le palpeur de telle
façon qu'il se trouve à peu près au dessus du centre de la
bille.
