Paramètres du cycle – HEIDENHAIN iTNC 530 (60642x-04) Cycle programming Manuel d'utilisation
Page 267
![background image](/files/816537/content/doc267.png)
HEIDENHAIN iTNC 530
267
1
0
.4 SURF
A
C
E REGLEE (cy
c
le 231, DIN/ISO:
G231)

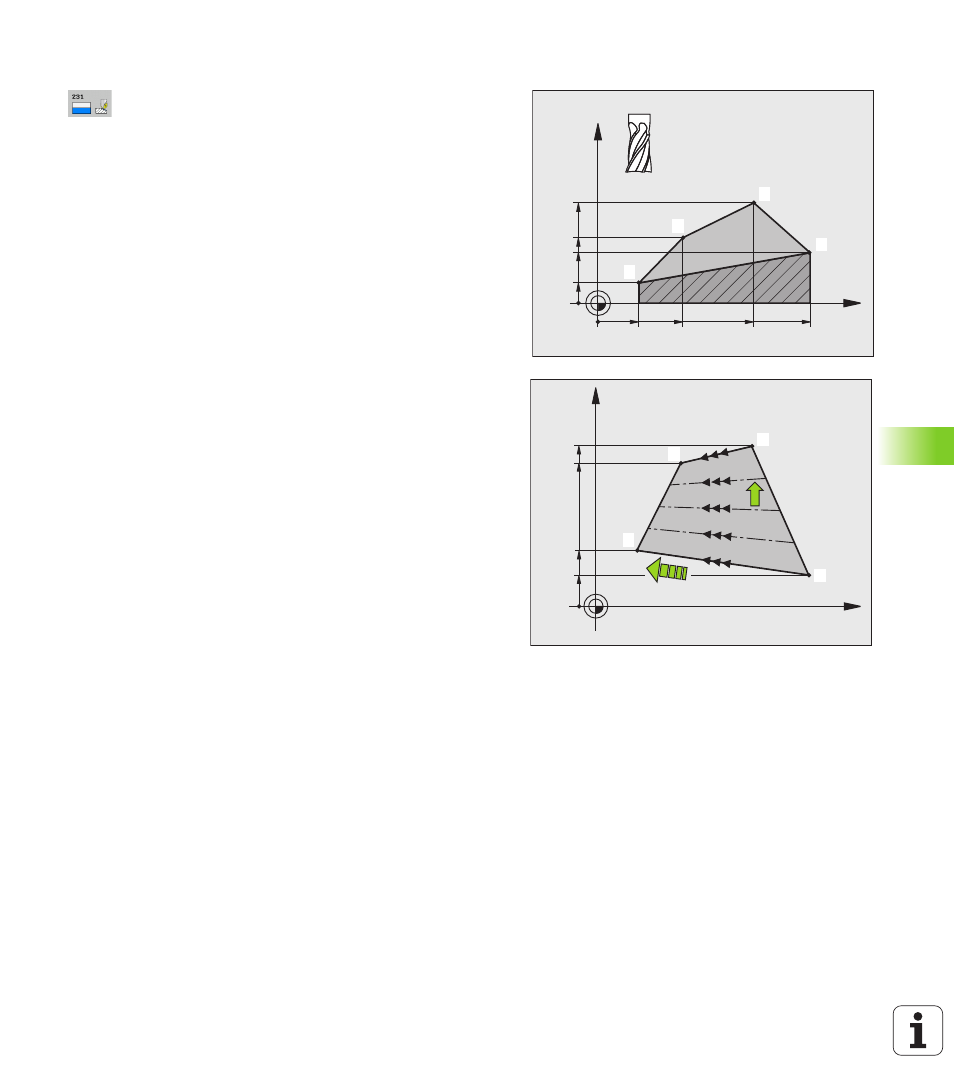

Paramètres du cycle
Point initial 1er axe
Q225 (en absolu) :
coordonnée du point initial de la surface à usiner dans
l'axe principal du plan d'usinage. Plage d'introduction
-99999,9999 à 99999,9999
Point initial 2ème axe
Q226 (en absolu) :
coordonnée du point initial de la surface à usiner dans
l'axe secondaire du plan d'usinage. Plage
d'introduction -99999,9999 à 99999,9999
Point initial 3ème axe
Q227 (en absolu) :
coordonnée du point initial de la surface à usiner dans
l'axe de broche. Plage d'introduction -99999,9999 à
99999,9999
2ème point 1er axe
Q228 (en absolu) : coordonnée du
point final de la surface à usiner dans l'axe principal du
plan d'usinage. Plage d'introduction -99999,9999 à
99999,9999
2ème point 2ème axe
Q229 (en absolu) : coordonnée
du point final de la surface à usiner dans l'axe
secondaire du plan d'usinage. Plage d'introduction
-99999,9999 à 99999,9999
2ème point 3ème axe
Q230 (en absolu) : coordonnée
du point final de la surface à usiner dans l'axe de
broche. Plage d'introduction -99999,9999 à
99999,9999
3ème point 1er axe
Q231 (en absolu) : coordonnée du
point
3
dans l'axe principal du plan d'usinage. Plage
d'introduction -99999,9999 à 99999,9999
3ème point 2ème axe
Q232 (en absolu) : coordonnée
du point
3
dans l'axe secondaire du plan d'usinage.
Plage d'introduction -99999,9999 à 99999,9999
3ème point 3ème axe
Q233 (en absolu) : coordonnée
du point
3
dans l'axe de broche. Plage d'introduction
-99999,9999 à 99999,9999
X
Z
Q236
Q233
Q227
Q230
Q228
Q225
Q234
Q231
1
4
2
3
X
Y
Q229
Q207
N = Q240
Q226
Q232
Q235
1
2
3
4
