HEIDENHAIN iTNC 530
429

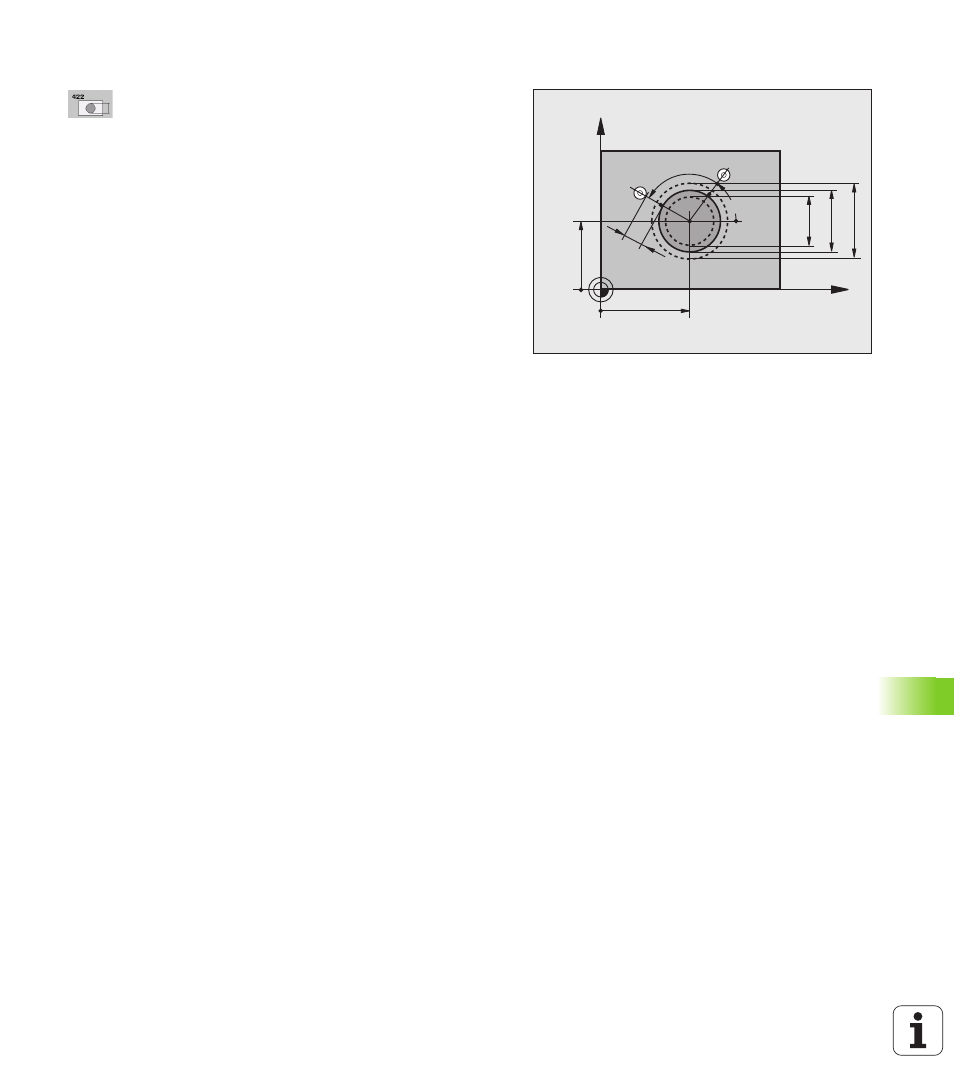

16.6 MESURE EXTERIEUR CER
C
LE (cy
c
le 422, DIN/ISO:
G422)
Paramètres du cycle
Centre 1er axe
Q321 (en absolu) : centre du tenon
dans l'axe principal du plan d'usinage. Plage
d'introduction -99999,9999 à 99999,9999
Centre 2ème axe
Q274 (en absolu) : centre du tenon
dans l'axe secondaire du plan d'usinage. Plage
d'introduction -99999,9999 à 99999,9999
Diamètre nominal
Q262 : introduire le diamètre du
tenon. Plage d’introduction 0 à 99999,9999
Angle initial
Q325 (en absolu) : angle compris entre
l'axe principal du plan d'usinage et le premier point de
palpage. Plage d'introduction 360,0000 à 360,0000
Incrément angulaire
Q247 (en incrémental) : angle
compris entre deux points de mesure, le signe de
l'incrément angulaire définit le sens de rotation (- =
sens horaire). Si vous souhaitez mesurer des
secteurs angulaires, programmez un incrément
angulaire inférieur à 90°. Plage d'introduction -
120,0000 à 120,0000
X
Y
Q325
Q247
Q278
Q262
Q277
Q274
±Q280
Q273
±Q279
MP6140
+
Q320
