14 exemples de programmation – HEIDENHAIN iTNC 530 (60642x-04) Cycle programming Manuel d'utilisation
Page 457
![background image](/files/816537/content/doc457.png)
HEIDENHAIN iTNC 530
457
16.14 Ex
emples de pr
ogr
a
mmation
16.14 Exemples de programmation

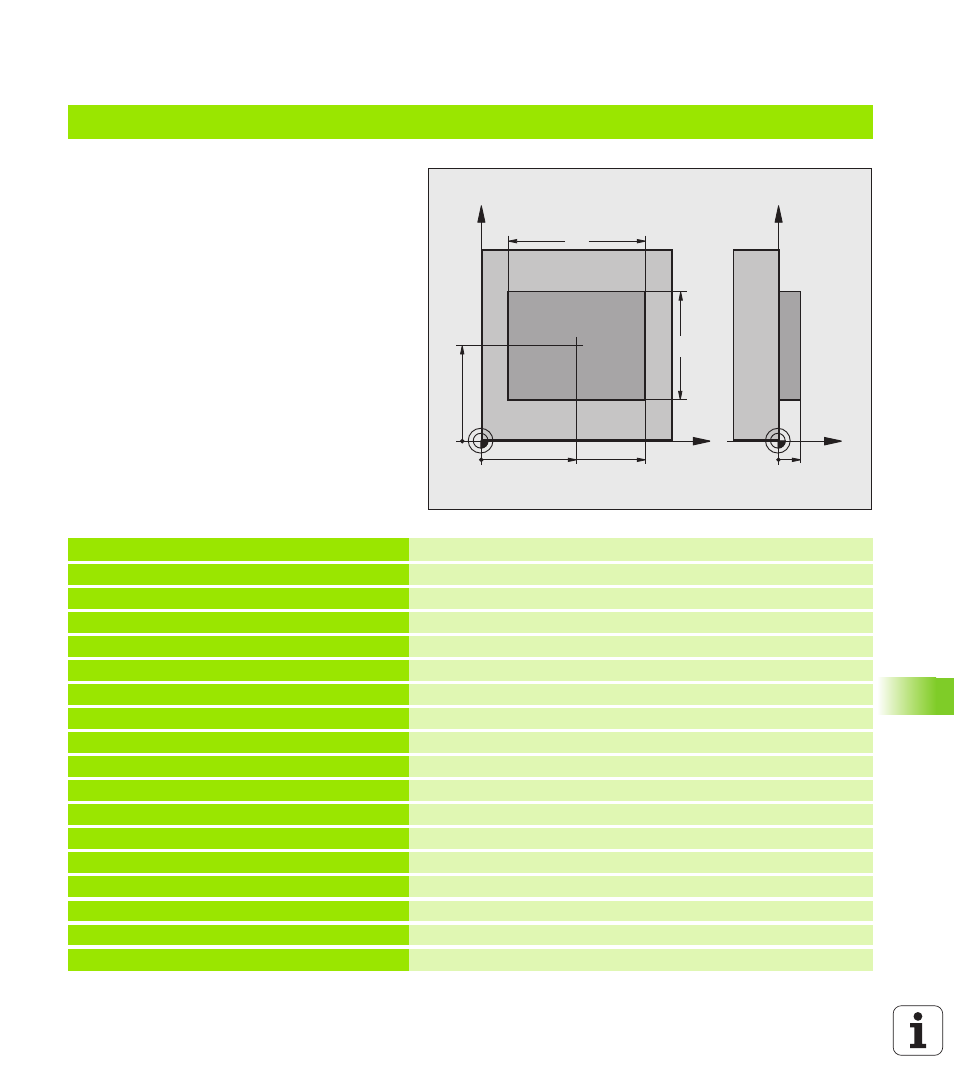

Exemple : mesure d'un tenon rectangulaire avec reprise d'usinage
Déroulement du programme :
Ebauche du tenon rectangulaire avec
surépaisseur 0,5
Mesure du tenon rectangulaire
Finition du tenon rectangulaire en tenant compte
des valeurs de mesure
0 BEGIN PGM BEAMS MM
1 TOOL CALL 69 Z
Appel d'outil, préparation
2 L Z+100 R0 FMAX
Dégager l'outil
3 FN 0: Q1 = +81
Longueur de la poche en X (cote d'ébauche)
4 FN 0: Q2 = +61
Longueur de la poche en Y (cote d'ébauche)
5 CALL LBL 1
Appeler le sous-programme pour l'usinage
6 L Z+100 R0 FMAX
Dégager l'outil, changer l'outil
7 TOOL CALL 99 Z
Appeler le palpeur
8 TCH PROBE 424 MESURE EXT. RECTANG.
Mesurer le rectangle usiné
Q273=+50
;CENTRE 1ER AXE
Q274=+50
;CENTRE 2ÈME AXE
Q282=80
;1ER CÔTÉ
Longueur nominale en X (cote définitive)
Q283=60
;2ÈME CÔTÉ
Longueur nominale en Y (cote définitive)
Q261=-5
;HAUTEUR DE MESURE
Q320=0
;DISTANCE D'APPROCHE
Q260=+30
;HAUTEUR DE SÉCURITÉ
Q301=0
;DÉPLAC. HAUT. SÉCU.
Q284=0
;COTE MAX. 1ER CÔTÉ
Valeurs d'introduction inutiles pour contrôle de tolérance
X
Y
50
50
80
Z
Y
10
60
