11.10 Exemples de programmation

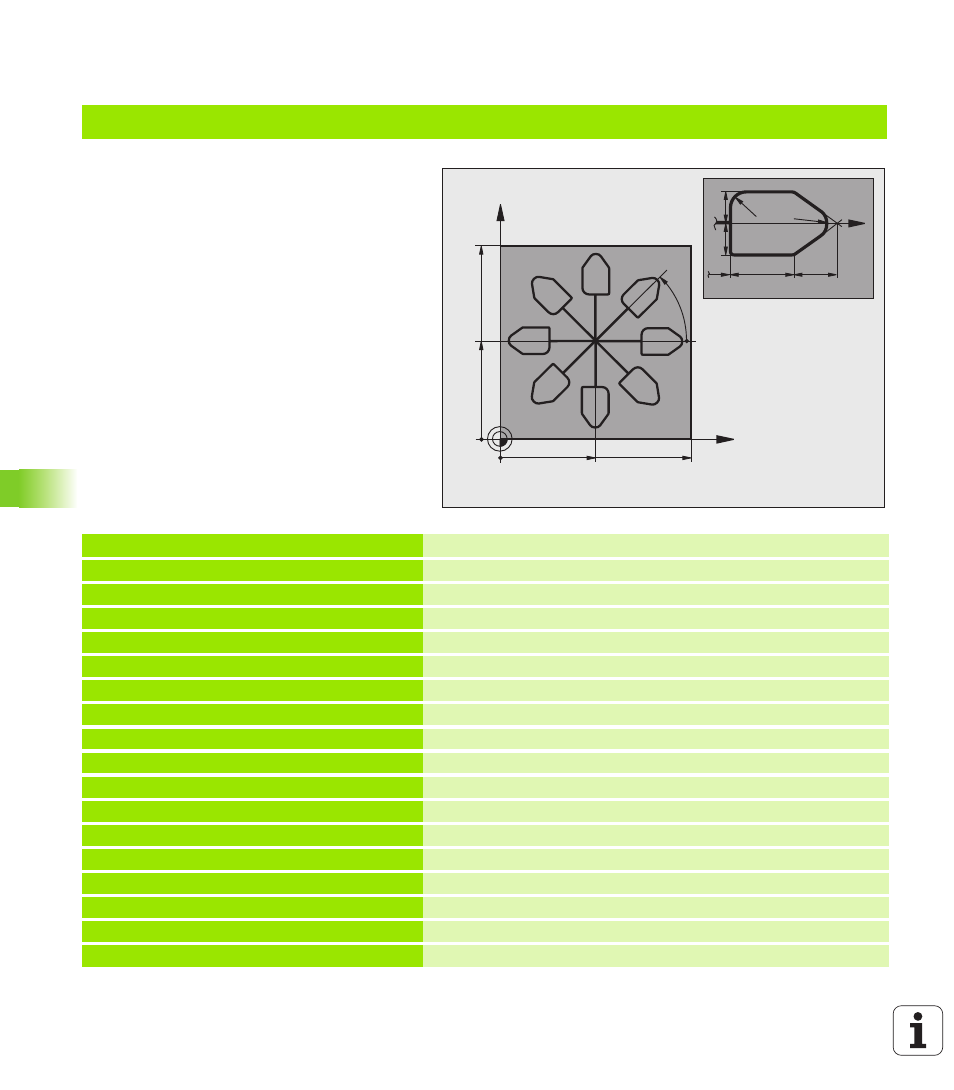

Exemple : cycles de conversion de coordonnées
Déroulement du programme
Conversions de coordonnées dans le
programme principal
Usinage dans le sous-programme
0 BEGIN PGM CONVER MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
Définition de la pièce brute
2 BLK FORM 0.2 X+130 Y+130 Z+0
3 TOOL DEF 1 L+0 R+1
Définition de l'outil
4 TOOL CALL 1 Z S4500
Appel de l'outil
5 L Z+250 R0 FMAX
Dégager l'outil
6 CYCL DEF 7.0 POINT ZÉRO
Décalage de l’outil au centre
7 CYCL DEF 7.1 X+65
8 CYCL DEF 7.2 Y+65
9 CALL LBL 1
Appeler l'opération de fraisage
10 LBL 10
Définir un label pour la répétition de parties de programme
11 CYCL DEF 10.0 ROTATION
Rotation de 45° (en incrémental)
12 CYCL DEF 10.1 IROT+45
13 CALL LBL 1
Appeler l'opération de fraisage
14 CALL LBL 10 REP 6/6
Saut en arrière au LBL 10 ; six fois au total
15 CYCL DEF 10.0 ROTATION
Désactiver la rotation
16 CYCL DEF 10.1 ROT+0
17 TRANS DATUM RESET
Désactiver le décalage du point zéro
X
Y
65
65
130
130
45°
X
20
30
10
R5
R5
10
10
