312
Cycles : fonctions spéciales
12.4 ORIENT
A
T
ION BR
OCHE (cy
c
le
13, DIN/ISO:
G36)
12.4 ORIENTATION BROCHE
(cycle 13, DIN/ISO: G36)

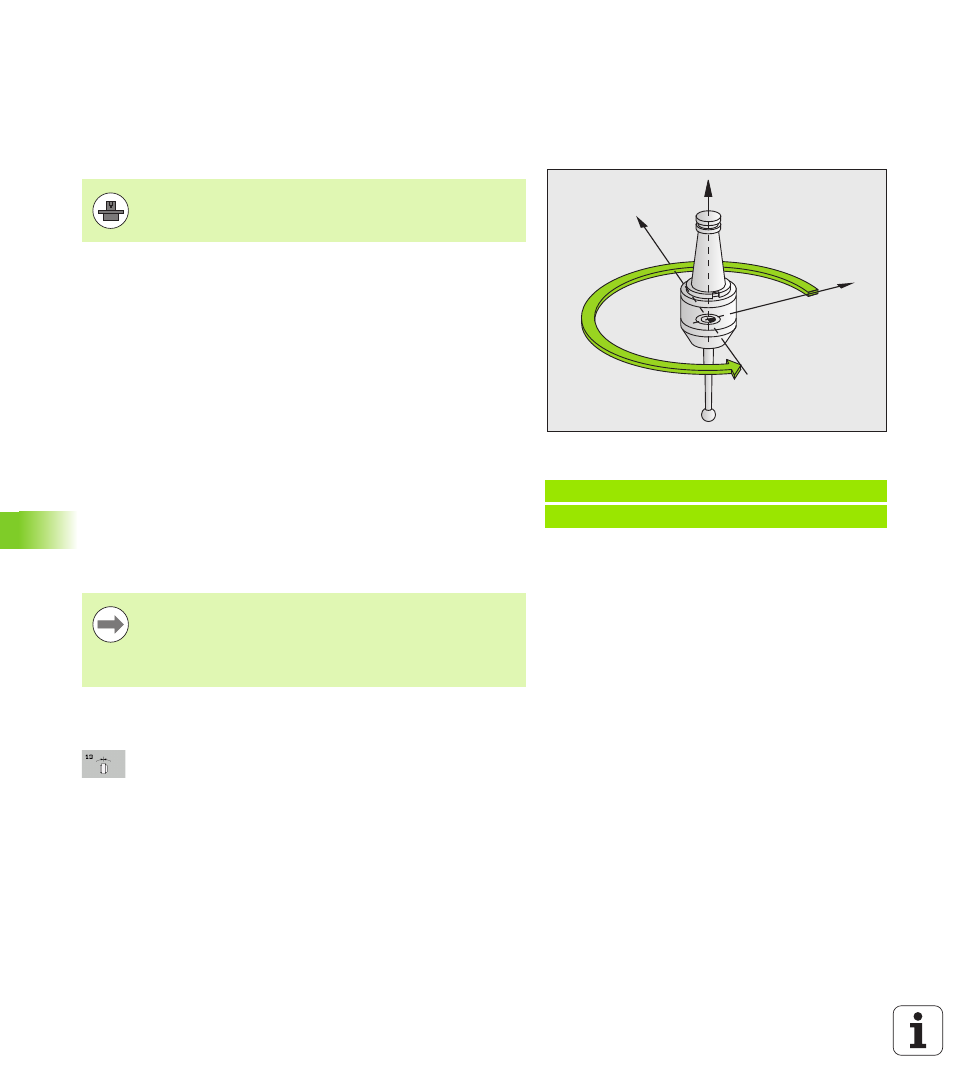

Fonction du cycle
La TNC doit pouvoir piloter la broche principale d’une machine-outil et
de l’orienter à une position angulaire donnée.
L'orientation broche est nécessaire, p. ex.
pour la position angulaire correcte de l'outil dans le changeur d'outils
pour positionner la fenêtre émettrice-réceptrice des palpeurs 3D
avec transmission infrarouge
La position angulaire définie dans le cycle est commandée par la TNC
avec la fonction M19 ou M20 (dépend de la machine).
Si vous programmez M19 ou M20 sans avoir défini préalablement le
cycle 13, la TNC positionne la broche principale à une valeur angulaire
définie par le constructeur de la machine (voir manuel de la machine).
Attention lors de la programmation!
Paramètres du cycle
Angle d'orientation
: introduire l'angle par rapport à
l'axe de référence angulaire du plan d'usinage. Plage
d’introduction : 0,0000° à 360,0000°
Exemple : Séquences CN
93 CYCL DEF 13.0 ORIENTATION
94 CYCL DEF 13.1 ANGLE 180
X
Y
Z
La machine et la TNC doivent avoir été préparées par le
constructeur de la machine.
Dans les cycles d'usinage 202, 204 et 209, le cycle 13 est
utilisé de manière interne. Pour votre programme CN,
notez qu'il vous faudra le cas échéant reprogrammer le
cycle 13 après l'un des cycles d'usinage indiqués ci-
dessus.
