HEIDENHAIN iTNC 530
101
3.1
1
Ex
emples de pr
ogr
a
mmation

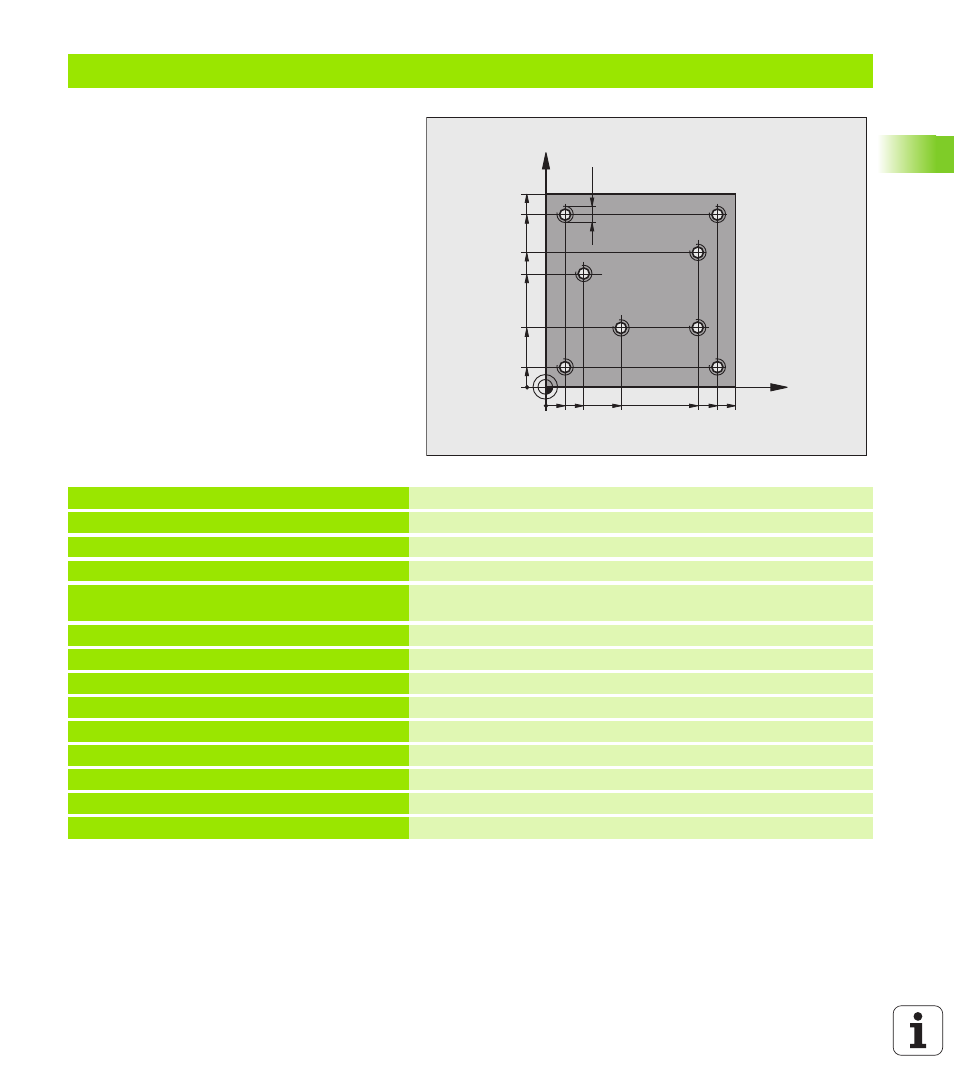

Exemple : utilisation des cycles de perçage en liaison avec PATTERN DEF
Les coordonnées du perçage sont mémorisées
dans la définition du motif PATTERN DEF POS et
sont appelées par la TNC avec CYCL CALL PAT.
Les rayons des outils sont sélectionnés de
manière à visualiser toutes les étapes de
l'usinage dans le graphique de test.
Déroulement du programme
Centrage (rayon d'outil 4)
Perçage (rayon d'outil 2,4)
Taraudage (rayon d'outil 3)
0 BEGIN PGM 1 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
Définition de la pièce brute
2 BLK FORM 0.2 X+100 Y+100 Y+0
3 TOOL CALL 1 Z S5000
Appel d'outil, foret à centrer (rayon d'outil 4)
4 L Z+10 R0 F5000
Déplacer l'outil à une hauteur de sécurité (programmer F avec une
valeur), la TNC positionne à cette hauteur après chaque cycle.
5 PATTERN DEF
Définir toutes les positions de perçage dans le motif de points
POS1( X+10 Y+10 Z+0 )
POS2( X+40 Y+30 Z+0 )
POS3( X+20 Y+55 Z+0 )
POS4( X+10 Y+90 Z+0 )
POS5( X+90 Y+90 Z+0 )
POS6( X+80 Y+65 Z+0 )
POS7( X+80 Y+30 Z+0 )
POS8( X+90 Y+10 Z+0 )
X
Y
20
10
100
100
10
90
90
80
30
55
40
65
M6
