Cycles palpeurs : contrôle automatique des pièces
16.1 Pr
incipes de base
16.1 Principes de base
Résumé

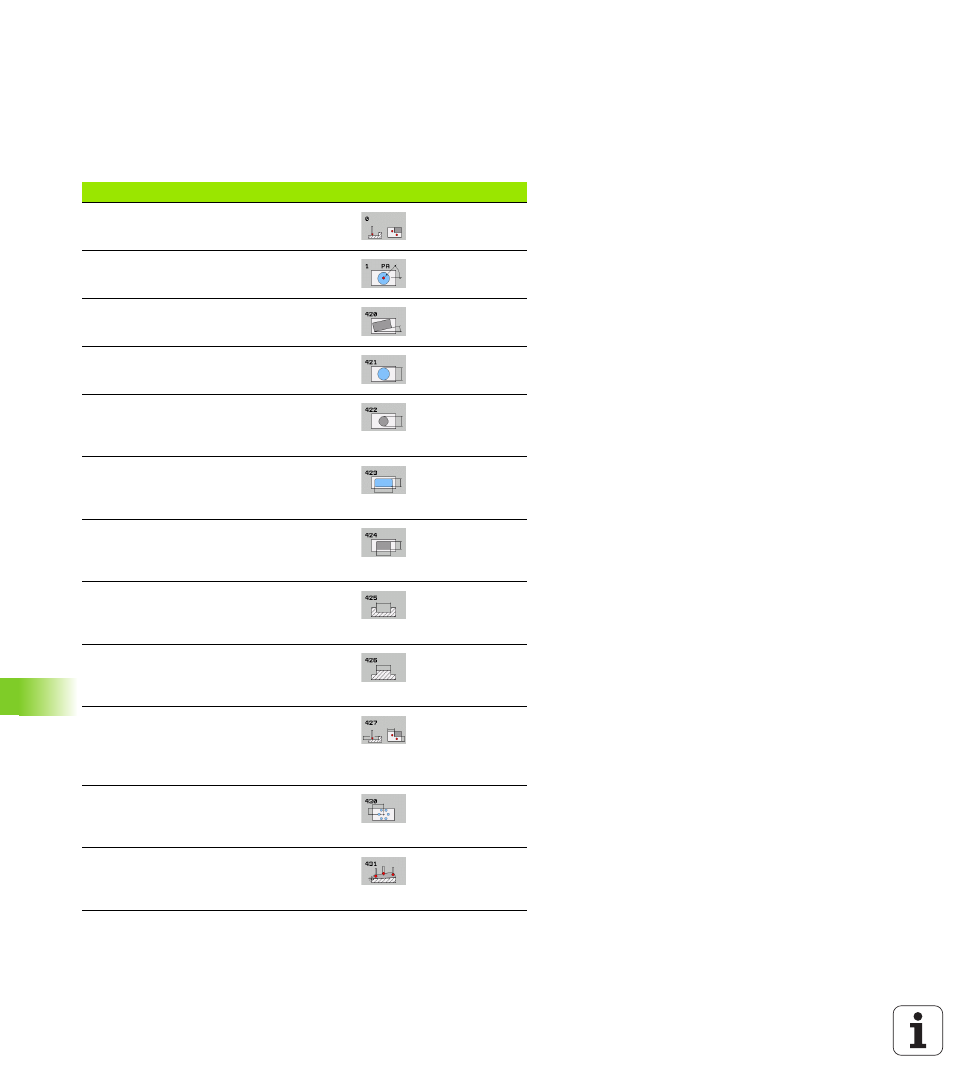

La TNC dispose de douze cycles destinés à la mesure automatique de
pièces :
Cycle
Softkey
Page
0 PLAN DE REFERENCE Mesure de
coordonnée dans un axe au choix
1 PLAN DE REF POLAIRE Mesure d'un
point, sens de palpage avec angle
420 MESURE ANGLE Mesure d'un
angle dans le plan d'usinage
421 MESURE TROU Mesure de la
position et du diamètre d'un trou
422 MESURE EXT. CERCLE Mesure de
la position et du diamètre d'un tenon
circulaire
423 MESURE INT. RECTANG. Mesure
de la position, longueur et largeur d'une
poche rectangulaire
424 MESURE EXT. RECTANG. Mesure
de la position, longueur et largeur d'un
tenon rectangulaire
425 MESURE INT. RAINURE
(2ème barre de softkeys) Mesure
interne de la largeur d'une rainure
426 MESURE EXT. TRAVERSE
(2ème barre de softkeys) Mesure
externe d'une traverse
427 MESURE COORDONNEE (2ème
barre de softkeys) Mesure d'une
coordonnée au choix dans un axe au
choix
430 MESURE CERCLE TROUS (2ème
barre de softkeys) Mesure de la position
et du diamètre d'un cercle de trous
431 MESURE PLAN (2ème barre de
softkeys) Mesure d'angle des axes A et
B d'un plan
