HEIDENHAIN iTNC 530 (60642x-04) Cycle programming Manuel d'utilisation
Page 434
![background image](/files/816537/content/doc434.png)
434
Cycles palpeurs : contrôle automatique des pièces
16.7 MESURE INTERIEUR RECT
ANGLE (cy
c
le 423, DIN/ISO:
G423)

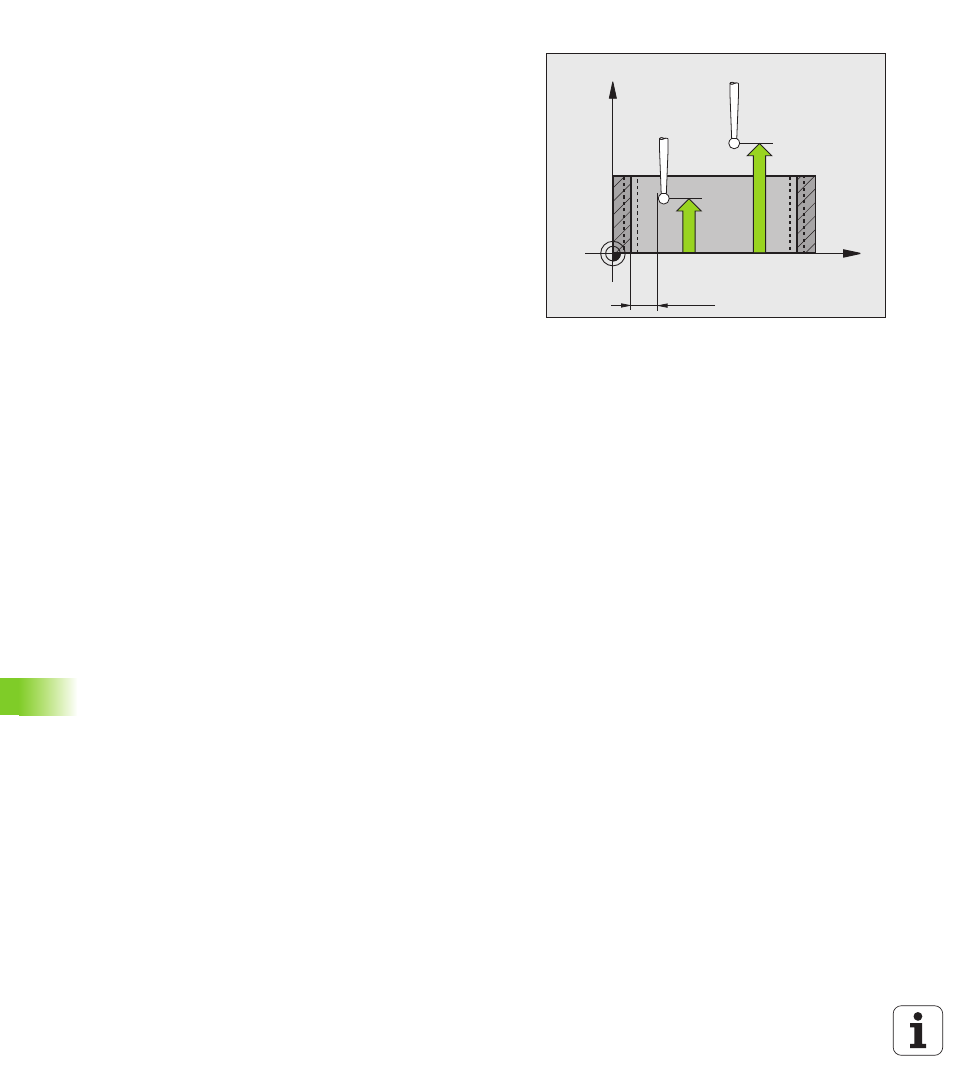

Distance d'approche
Q320 (en incrémental) :
distance supplémentaire entre le point de mesure et
la bille du palpeur. Q320 s'additionne à PM6140.
Plage d’introduction : 0 à 99999,9999, ou PREDEF
Hauteur de sécurité
Q260 (en absolu) : coordonnée
dans l'axe du palpeur excluant toute collision entre le
palpeur et la pièce (éléments de serrage). Plage
d’introduction -99999,9999 à 99999,9999, ou PREDEF
Déplacement haut. sécu.
Q301 : définir comment le
palpeur doit se déplacer entre les points de mesure :
0 : entre les points de mesure, à la hauteur de mesure
1 : entre les points de mesure, à la hauteur de
sécurité
En alternative PREDEF
Cote max. 1er côté
Q284 : longueur max. autorisée
pour la poche. Plage d’introduction 0 à 99999,9999
Cote min. 1er côté
Q285 : longueur min. autorisée
pour la poche. Plage d’introduction 0 à 99999,9999
Cote max. 2ème côté
Q286 : largeur max. autorisée
pour la poche. Plage d’introduction 0 à 99999,9999
Cote min. 2ème côté
Q287 : largeur min. autorisée
pour la poche. Plage d’introduction 0 à 99999,9999
Tolérance centre 1er axe
Q279 : écart de position
autorisé dans l'axe principal du plan d'usinage. Plage
d’introduction 0 à 99999,9999
Tolérance centre 2ème axe
Q280 : écart de position
autorisé dans l'axe secondaire du plan d'usinage.
Plage d’introduction 0 à 99999,9999
X
Z
Q261
Q260
MP6140
+
Q320
