HEIDENHAIN iTNC 530
239
8.6 Ex
emples de pr
ogr
a
mmation
8.6 Exemples de programmation

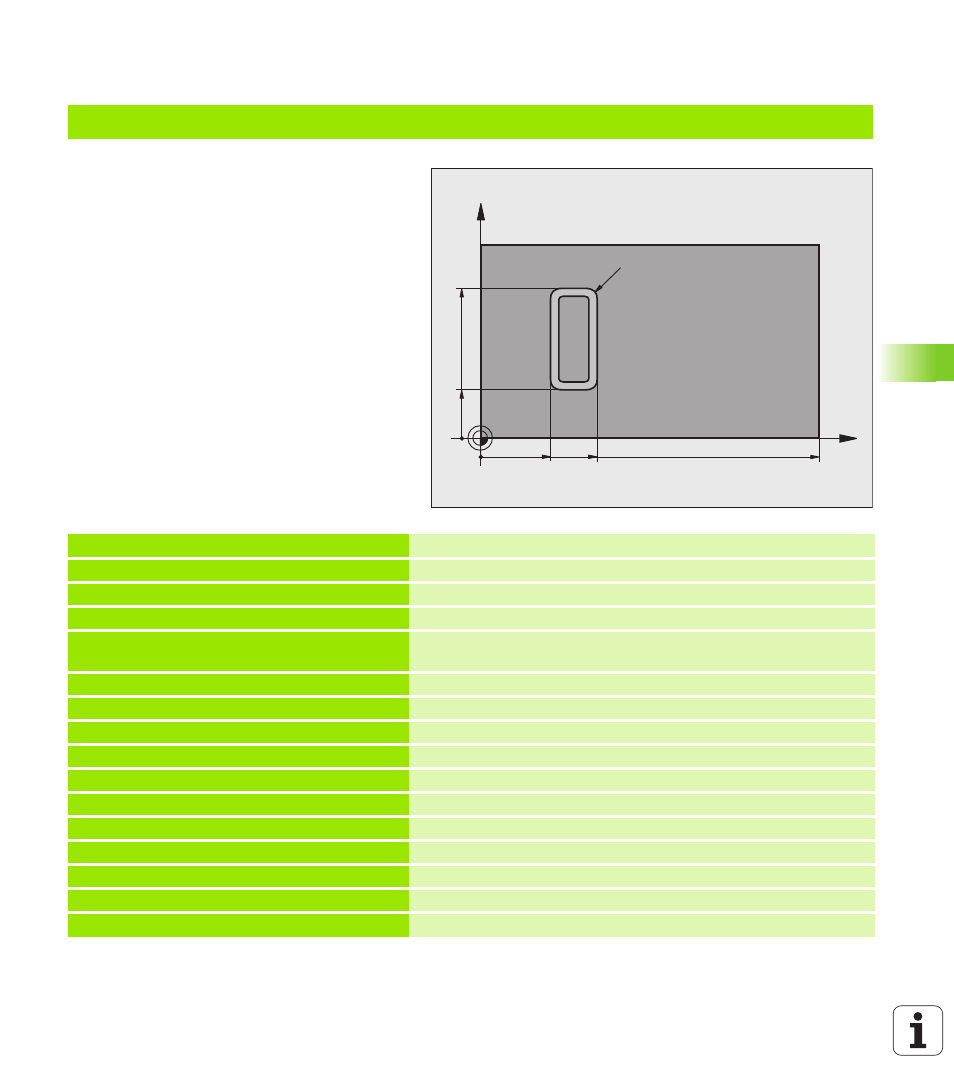

Exemple : corps d'un cylindre avec le cycle 27
Remarque:
Machine équipée d'une tête B et d'une table C
Cylindre fixé au centre du plateau circulaire.
Le point d'origine est au centre du plateau
circulaire
0 BEGIN PGM C27 MM
1 TOOL CALL 1 Z S2000
Appel de l'outil, diamètre 7
2 L Z+250 R0 FMAX
Dégager l'outil
3 L X+50 Y0 R0 FMAX
Pré-positionner l'outil au centre du plateau circulaire
4 PLANE SPATIAL SPA+0 SPB+90 SPC+0
TURN MBMAX FMAX
Inclinaison
5 CYCL DEF 14.0 CONTOUR
Définir le sous-programme de contour
6 CYCL DEF 14.1 LABEL CONTOUR 1
7 CYCL DEF 27 CORPS DU CYLINDRE
Définir les paramètres d'usinage
Q1=-7
;PROFONDEUR DE FRAISAGE
Q3=+0
;SURÉPAIS. LATÉRALE
Q6=2
;DISTANCE D'APPROCHE
Q10=4
;PROFONDEUR DE PASSE
Q11=100
;AVANCE PLONGÉE PROF.
Q12=250
;AVANCE FRAISAGE
Q16=25
;RAYON
Q17=1
;UNITÉ DE MESURE
C
Z
157
60
30
20
R7
.5
50
