1 0 ex emples de pr ogr ammation – HEIDENHAIN TNC 426B (280 472) ISO programming Manuel d'utilisation
Page 286
TNC 410, TNC 426, TNC 430 HEIDENHAIN
271

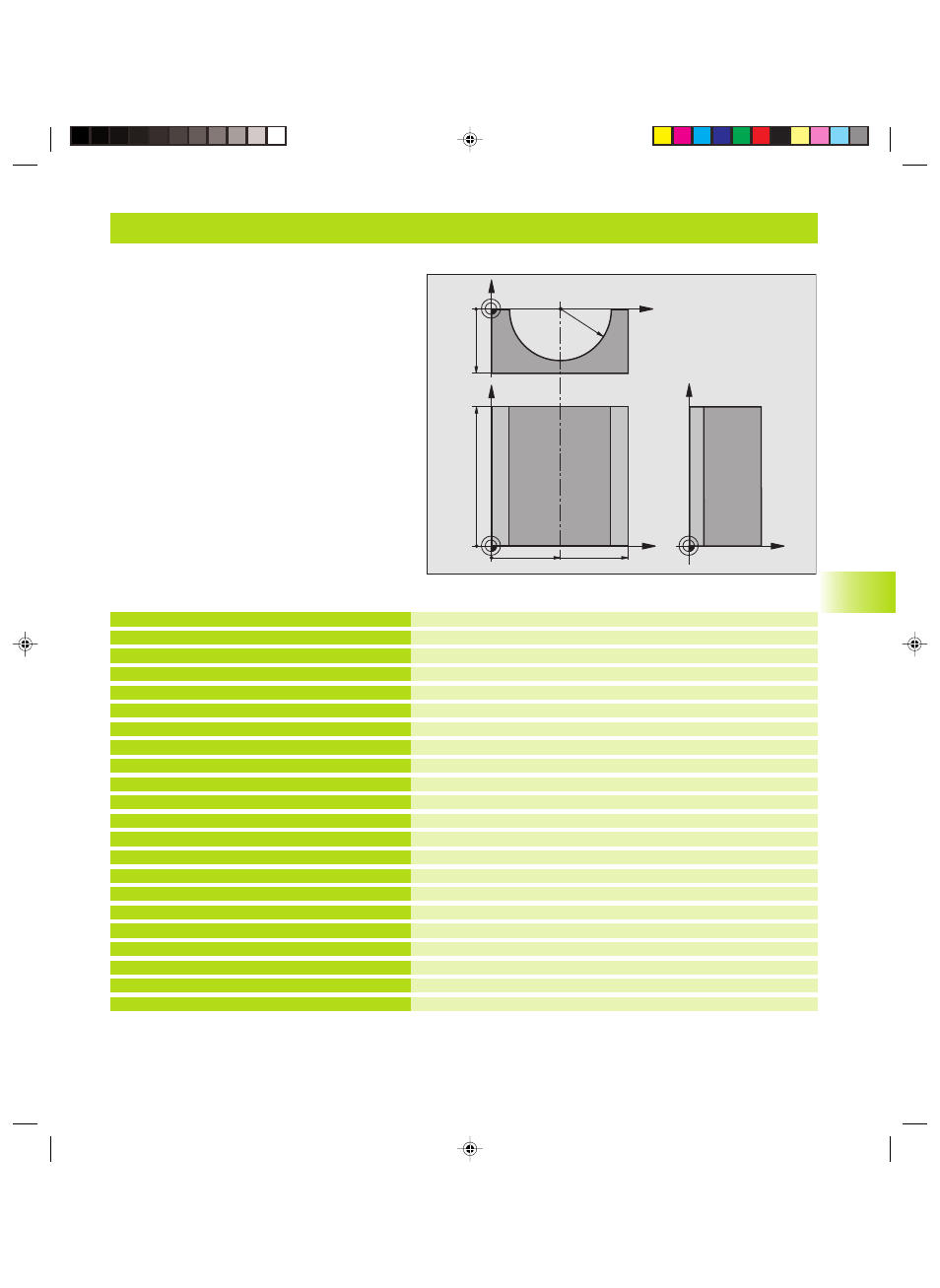

Exemple: Cylindre concave avec fraise à crayon
Exemple: Cylindre concave avec fraise à crayon
Centre de l‘axe X
Centre de l‘axe Y
Centre de l‘axe Z
Angle initial dans l'espace (plan Z/X)
Angle final dans l'espace (plan Z/X)
Rayon du cylindre
Longueur du cylindre
Position angulaire dans le plan X/Y
Surépaisseur de rayon du cylindre
Avance plongée en profondeur
Avance de fraisage
Nombre de coupes
Définition de la pièce brute
Définition de l'outil
Appel de l'outil
Dégager l‘outil
Appeler l‘usinage
Annuler la surépaisseur
Appeler l‘usinage
Dégager l‘outil, fin du programme
%CYLIN G71 *
N10 D00 Q1 P01 +50 *
N20 D00 Q2 P01 +0 *
N30 D00 Q3 P01 +0 *
N40 D00 Q4 P01 +90 *
N50 D00 Q5 P01 +270 *
N60 D00 Q6 P01 +40 *
N70 D00 Q7 P01 +100 *
N80 D00 Q8 P01 +0 *
N90 D00 Q10 P01 +5 *
N100 D00 Q11 P01 +250 *
N110 D00 Q12 P01 +400 *
N120 D00 Q13 P01 +90 *
N130 G30 G17 X+0 Y+0 Z-50 *
N140 G31 G90 X+100 Y+100 Z+0 *
N150 G99 T1 L+0 R+3 *
N160 T1 G17 S4000 *
N170 G00 G40 G90 Z+250 *
N180 L10,0 *
N190 D00 Q10 P01 +0 *
N200 L10,0 *
N210 G00 G40 Z+250 M2 *
Déroulement du programme
■
Le programme fonctionne avec une fraise à
crayon et la longueur d'outil se réfère au centre
de la sphère
■
Le contour de l'ellipse est constitué de nombreux
petits segments de droite (à définir avec Q13).
Plus vous aurez défini de pas de calcul et plus
lisse sera le contour
■
Le cylindre est fraisé en coupes longitudinales
(dans ce cas: parallèles à l‘axe Y)
■
Définissez le sens du fraisage avec l‘angle initial
et l‘angle final dans l‘espace:
Sens de l‘usinage dans le sens horaire:
angle initial > angle final
Sens de l‘usinage dans le sens anti-horaire: angle
initial < angle final
■
Le rayon d‘outil est corrigé automatiquement
1
0.1
0 Ex
emples de pr
ogr
ammation
X
Y
50
100
100
Z
Y
X
Z
-50
R40
Mkap10.pm6
28.06.2006, 14:54
271
