HEIDENHAIN TNC 426B (280 472) ISO programming Manuel d'utilisation
Page 128
112
6 Programmation: Programmer les contours
6.5 Cont
our
nag
es – Coor
données polair
es
6.5 Contournages – Coordonnées
polaires
Les coordonnées polaires vous permettent de définir une position
à partir d‘un angle H et d‘une distance R par rapport à une pôle I, J
défini précédemment. Cf. „4.1 Principes de base“.
Les coordonnées polaires sont intéressantes à utiliser pour:
■
les positions sur des arcs de cercle
■
les plans avec données angulaires (ex. cercles de trous)
Sommaire des contournages avec coordonnées polaires
X
Y
X=I
Y=J
Déplacement de l‘outil
Fonction
Données nécessaires
Droite en avance rapide
G10
Rayon polaire, angle polaire point final de la droite
Droite avec avance F
G11
Trajectoire circulaire sens horaire
G12
Angle polaire point final cercle
Traj. circulaire sens anti-horaire
G13
Trajectoire circulaire correspondant
G15
au sens de rotation actif
Trajectoire circulaire avec raccordement
G16
Rayon polaire, angle polaire point final cercle
tangentiel à l'élément de contour précédent

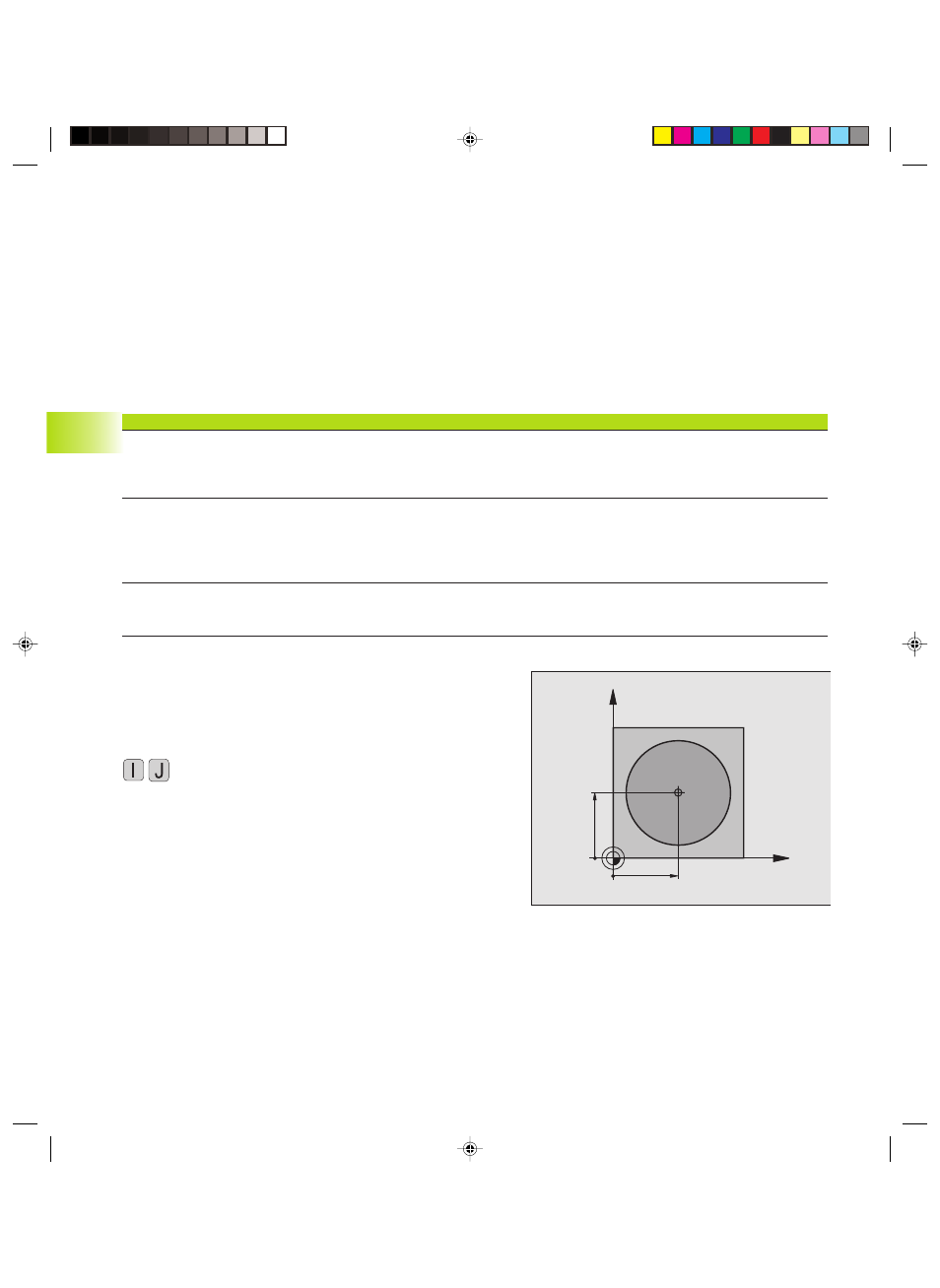

Origine des coordonnées polaires: pôle I, J
Avant d‘indiquer les positions en coordonnées polaires, vous
pouvez définir le pôle I, J à n‘importe quel endroit du programme
d‘usinage. Pour définir le pôle, procédez de la même manière que
pour la programmation du centre de cercle.
ú
Introduire les coordonnées cartésiennes pour le pôle
ou pour prendre en compte la dernière position
programmée: introduire G29
Gkap6.pm6
28.06.2006, 14:54
