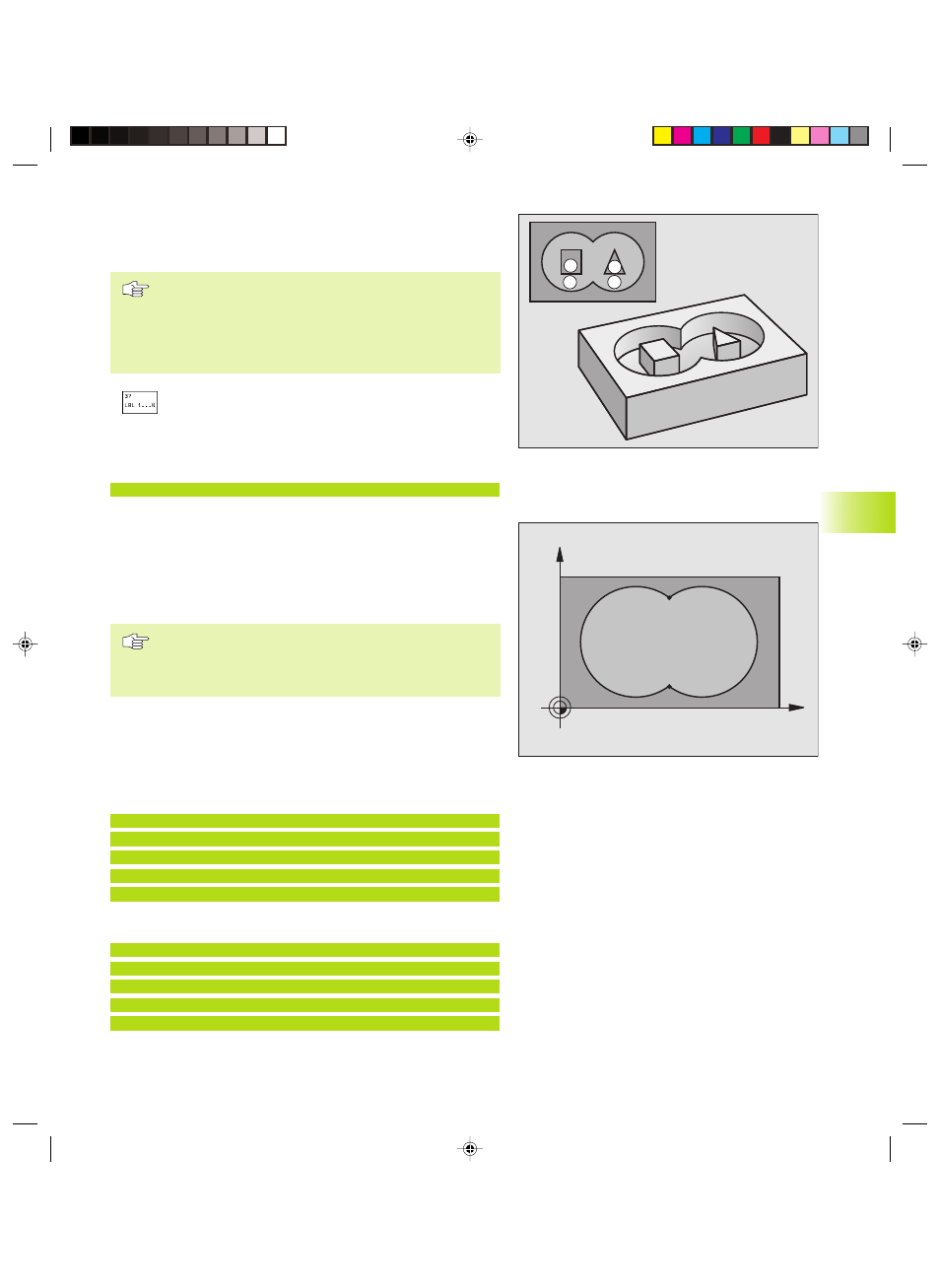

CONTOUR (cycle G37)
Dans le cycle G37 CONTOUR, listez tous les sous-programmes qui
doivent être superposés pour former un contour entier.
Remarques avant que vous ne programmiez
Le cycle G37 est actif avec DEF, c‘est-à-dire qu‘il est actif
dès qu‘il a été défini dans le programme
Vous pouvez regrouper jusqu‘à 12 sous-programmes
(contours partiels) dans le cycle G37
ú
Numéros de label pour contour: introduire tous les
numéros de label des différents sous-programmes qui
doivent être superposés pour former un contour.
Valider chaque numéro avec la touche ENT et achever
l‘introduction avec la touche FIN.
Exemple de séquence CN:
N120 G37 P01 1 P02 5 P03 7*
Contours superposés
Afin de former un nouveau contour, vous pouvez superposer
poches et îlots. De cette manière, vous pouvez agrandir la surface
d‘une poche par superposition d‘une poche ou réduire un îlot.
Sous-programmes: Poches superposées
Les exemples de programmation suivants
correspondent à des sous-programmes de contour
appelés par le cycle G37 CONTOUR dans un
programme principal.
Les poches A et B sont superposées.
La TNC calcule les points d‘intersection S
1
et S
2
; ils n'ont pas à être
reprogrammés.
Les poches sont programmées comme des cercles entiers.
Sous-programme 1: Poche à gauche
N510 G98 L1 *
N520 G01 G42 X+10 Y+50 *
N530 I+35 J+50 *
N540 G02 X+10 Y+50 *
N550 G98 L0 *
Sous-programme 2: Poche à droite
N560 G98 L2 *
N570 G01 G42 X+90 Y+50 *
N580 I+65 J+50 *
N590 G02 X+90 Y+50 *
N600 G98 L0 *
8.7 Cy
cles SL,
gr
oupe II (sauf
TNC
41
0)
A
C
D
B
X
Y
A
B
S
1
S
2
