3 cor rection d‘ outil – HEIDENHAIN TNC 426B (280 472) ISO programming Manuel d'utilisation
Page 107
![background image](/files/816114/content/doc107.png)
91
TNC 410, TNC 426, TNC 430 HEIDENHAIN

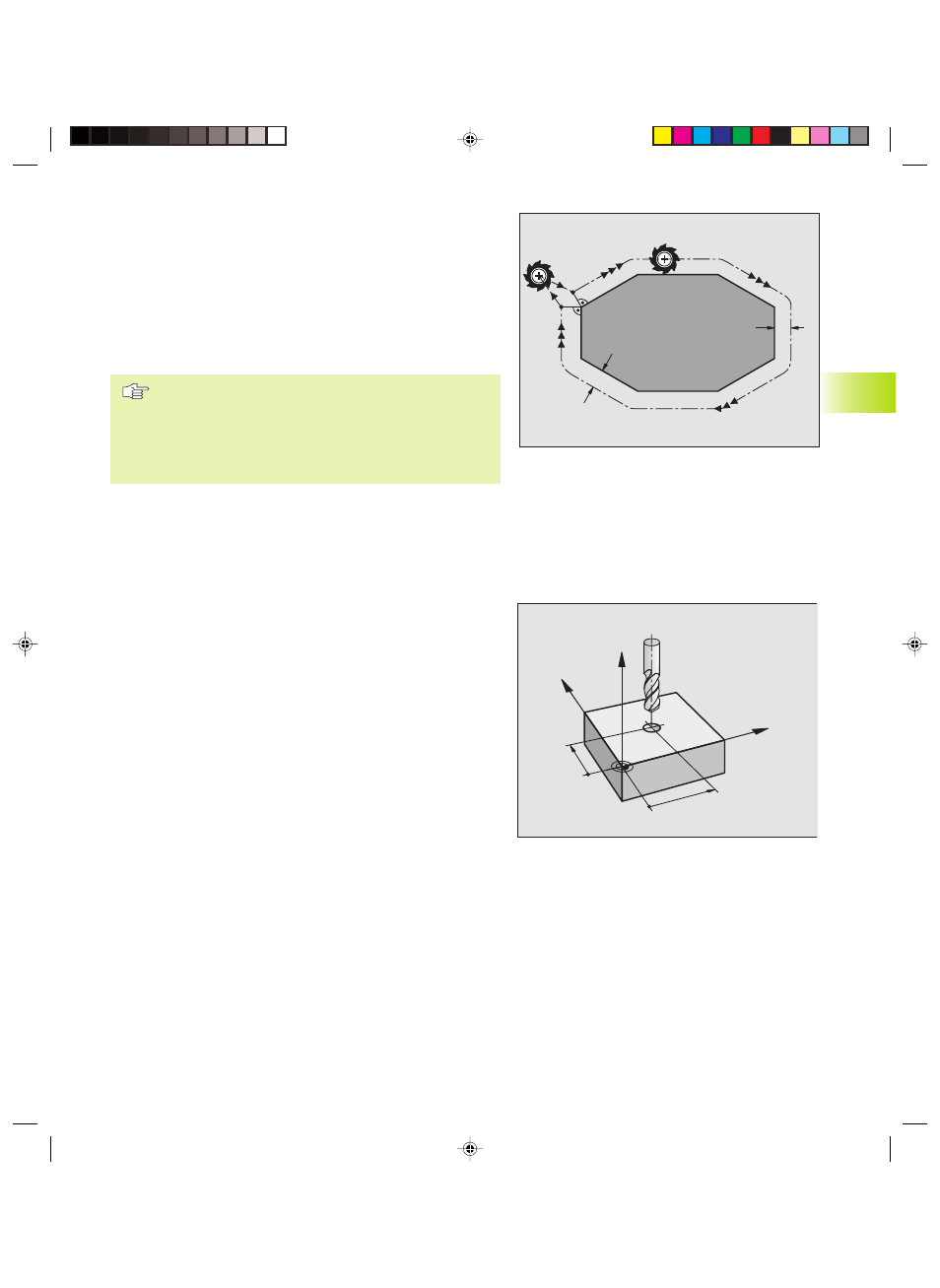

Correction du rayon d'outil
La séquence de programme pour un déplacement d‘outil contient:
■
G41 ou G42 pour une correction de rayon
■
G43 ou G44 pour une correction de rayon lors d‘un déplacement
paraxial
■
G40 si aucune correction de rayon ne doit être exécutée
La correction de rayon devient active dès qu‘un outil est appelé et
déplacé dans le plan d‘usinage avec G41 ou G42.
La TNC annule automatiquement la correction de rayon
également dans si vous:
■
programmez une séquence de positionnement avec G40
■
programmez un appel de programme avec %...
■
sélectionnez un nouveau programme
Pour la correction de rayon, les valeurs Delta sont prises en compte
aussi bien à partir de la séquence T que du tableau d'outils:
Valeur de correction = R + DR
T
+ DR
TAB
avec
R
Rayon d'outil R de la séquence G99 ou
Tableau
DR
T
Surépaisseur DR pour longueur dans
séquence T (non prise en compte par l'affichage de
position)
DR
TAB
Surépaisseur DR pour rayon dans le tableau d‘outils
Contournages sans correction de rayon: G40
L‘outil se déplace dans le plan d‘usinage avec son centre situé sur la
trajectoire programmée, par exemple jusqu‘au coordonnées
programmées.
Applications: Perçage, pré-positionnement. Cf. figure de droite.
5.3 Cor
rection d‘
outil
Y
X
Z
X
Y
R
R
G40
G41
