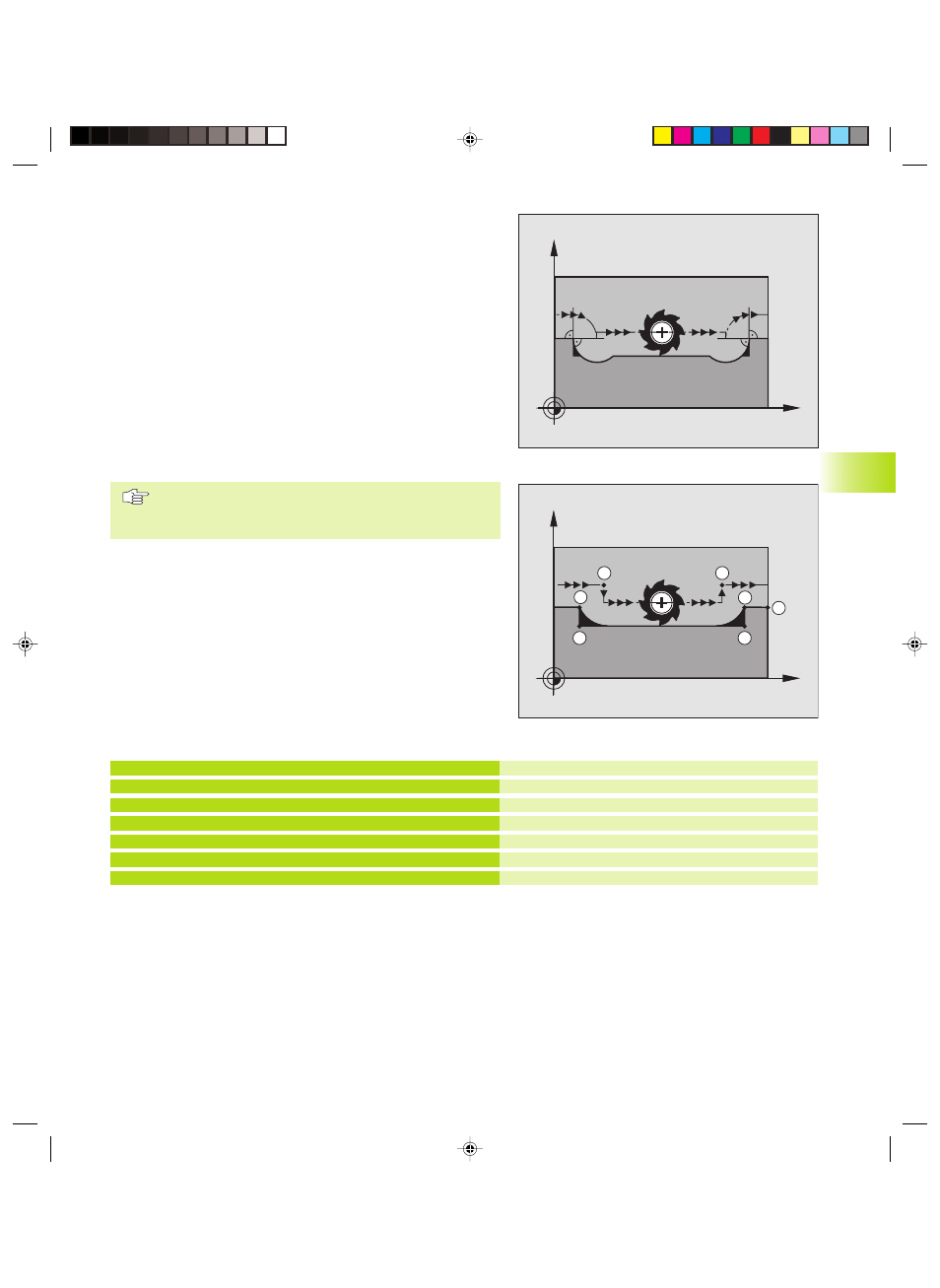

Usinage de petits éléments de contour: M97
Comportement standard
A un angle externe, la TNC insère un cercle de transition. Lorsqu‘il
rencontre de très petits éléments de contour, l‘outil risque alors
d‘endommager celui-ci. Cf. figure de droite, au centre.
Là, la TNC interrompt l'exécution du programme et délivre le
message d‘erreur „Rayon d'outil trop grand“.
Comportement avec M97
La TNC définit un point d‘intersection pour les éléments du contour
– comme aux angles internes – et déplace l‘outil sur ce point. Cf.
figure en bas et à droite.
Programmez M97 dans la séquence où l‘angle externe a été défini.
Effet
M97 n‘est active que dans la séquence où elle a été programmée.
L‘angle du contour sera usiné de manière incomplète
avec M97. Vous devez éventuellement effectuer un autre
usinage à l‘aide d‘un outil plus petit.
7.4 F
onctions auxiliair
es pour le compor
tement de cont
our
nag
e
X
Y
X
Y
S
16
17
15
14
13
S
Grand rayon d‘outil
Aborder le point 13 du contour
Usiner les petits éléments de contour 13 et 14
Aborder le point 15 du contour
Usiner les petits éléments de contour 15 et 16
Aborder le point 17 du contour
Exemple de séquences CN
N50 G99 G01 ... R+20 *
...
N130 X ... Y ... F .. M97 *
N140 G91 Y0,5 .... F.. *
N150 X+100 ... *
N160 Y+0,5 ... F.. M97 *
N170 G90 X .. Y ... *
