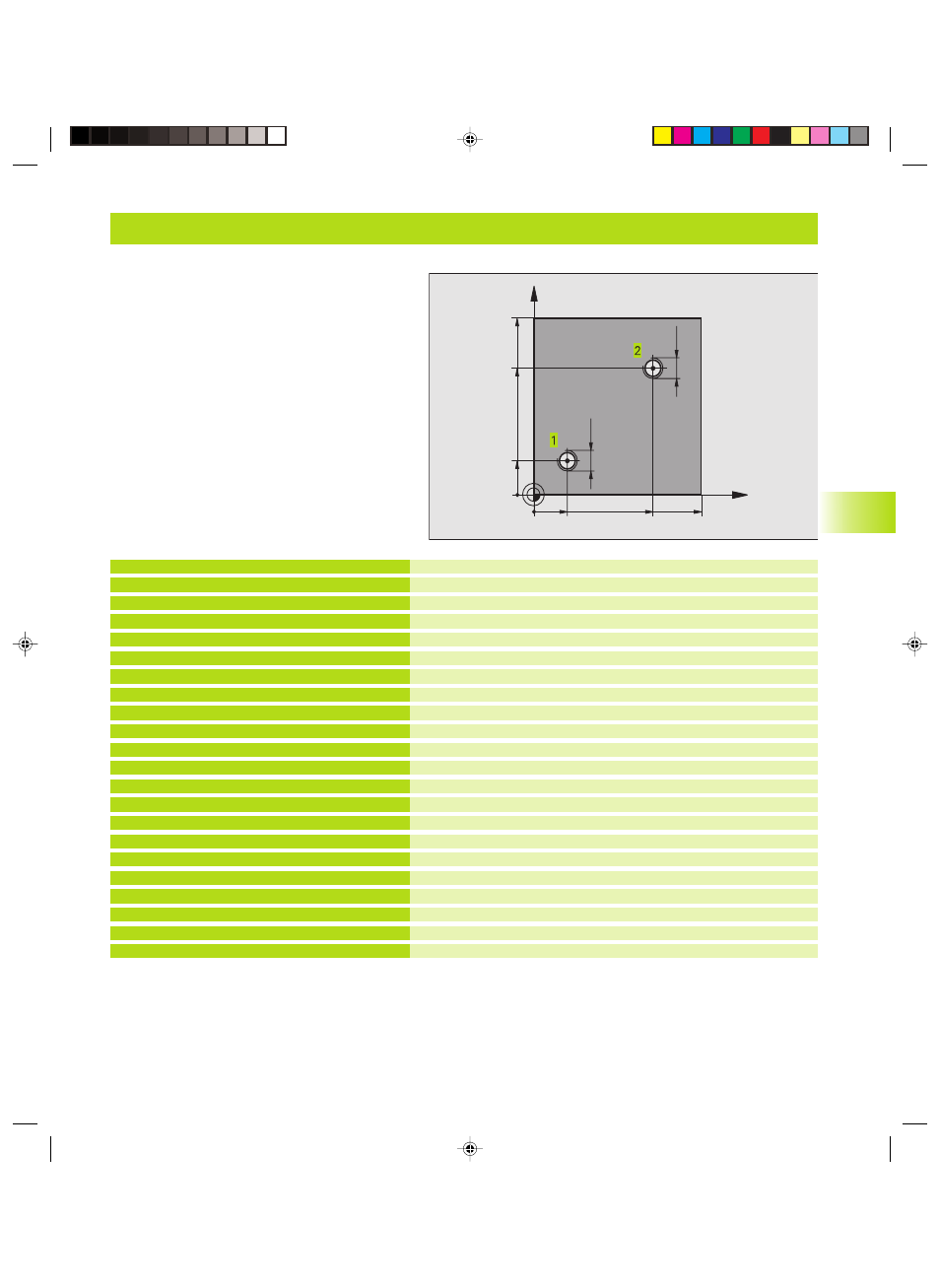

Exemple: Cycles de perçage
Définition de la pièce brute
Définition de l'outil
Appel de l'outil
Dégager l‘outil
Définition du cycle Filetage
Aborder le trou 1
Appeler le sous-programme 1
Aborder le trou 2
Appeler le sous-programme 1
Dégager l‘outil, fin du programme principal
Sous-programme 1: Filetage
Orienter la broche (répétition possible du filetage)
Décaler l‘outil pour plongée sans risque de collision (dépend du
diamètre du noyau et de l‘outil)
Aller à la position initiale
Amener l‘outil à nouveau au centre du trou
Appeler le cycle
Dégagement
Fin du sous-programme 1
%C18 G71 *
N10 G30 G17 X+0 Y+0 Z-20 *
N20 G31 G90 X+100 Y+100 Z+0 *
N30 G99 T1 L+0 R+6 *
N40 T1 G17 S4500 *
N50 G00 G40 G90 Z+250 *
N60 G86 P01 +30 P02 -1,75 *
N70 X+20 Y+20 *
N80 L1,0 *
N90 X+70 Y+70 *
N100 L1,0 *
N110 G00 Z+250 M2 *
N120 G98 L1 *
N130 G36 S0 *
N140 G01 G91 X-2 F1000 *
N150 G90 Z-30 *
N160 G91 X+2 *
N170 G79 *
N180 G90 Z+5 *
N190 G98 L0 *
N999999 %C18 G71 *
Déroulement du programme
■
Programmer le cycle de perçage dans le
programme principal
■
Programmer l‘usinage dans le sous-programme
(cf. „9 Programmation: Sous-programmes et
répétitions de parties de programme“)
8.3 Cycles de perçage
X
Y
20
20
100
100
70
70
M12
M12
Kkap8.pm6
28.06.2006, 14:54
167
