HEIDENHAIN iTNC 530 (340 49x-01) ISO programming Manuel d'utilisation
Page 76
76
3 Positionnement avec introduction manuelle
3.1 Pr
ogr
a
mmation et exécution d’opér
a
tions simples d’usinag
e
3.1 Programmation et exécution
d’opérations simples d’usinage
Pour des opérations simples d'usinage ou pour le pré-positionnement
de l'outil, on utilise le mode Positionnement avec introduction
manuelle. Pour cela, vous pouvez introduire un petit programme en
format Texte clair HEIDENHAIN ou en DIN/ISO et l’exécuter
directement. Les cycles de la TNC peuvent être appelés à cet effet.
Le programme est mémorisé dans le fichier $MDI. L’affichage d’état
supplémentaire peut être activé en mode Positionnement avec
introduction manuelle.
Exécuter le positionnement avec introduction
manuelle
Sélectionner le mode Positionnement avec
introduction manuelle. Programmer librement le
fichier $MDI
Lancer l'exécution du programme: Touche START
externe

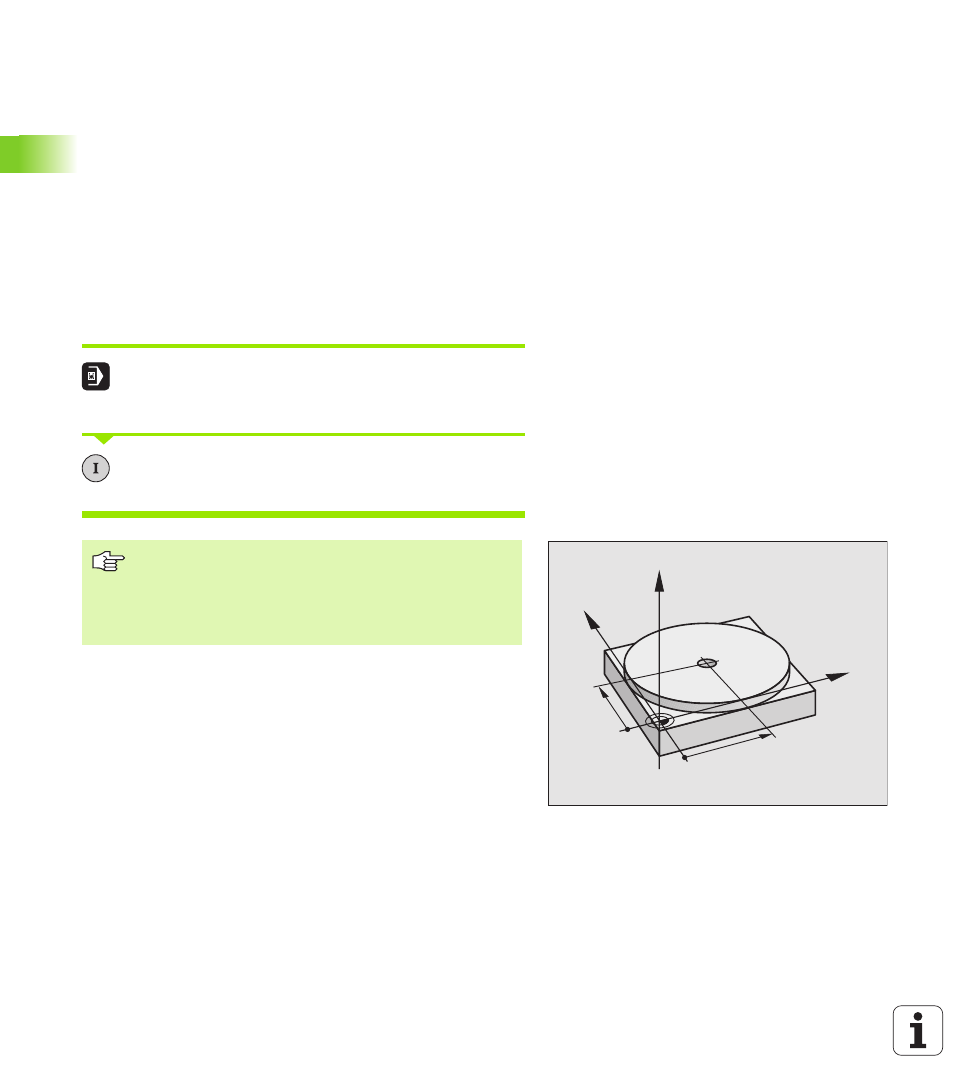

Exemple 1
Une seule pièce doit comporter un trou profond de 20 mm. Après avoir
bridé et dégauchi la pièce puis initialisé le point de référence, le trou
peut être programmé en quelques lignes et usiné ensuite.
Restriction
Le graphisme de programmation et le graphisme
d'exécution de programme ne sont pas disponibles.
Le fichier $MDI ne doit pas contenir d'appel de
programme (%).
Y
X
Z
50
50
