460
10 Programmation: Paramètres Q
1
0
.1
0 Ex
emples de pr
ogr
a
mmation

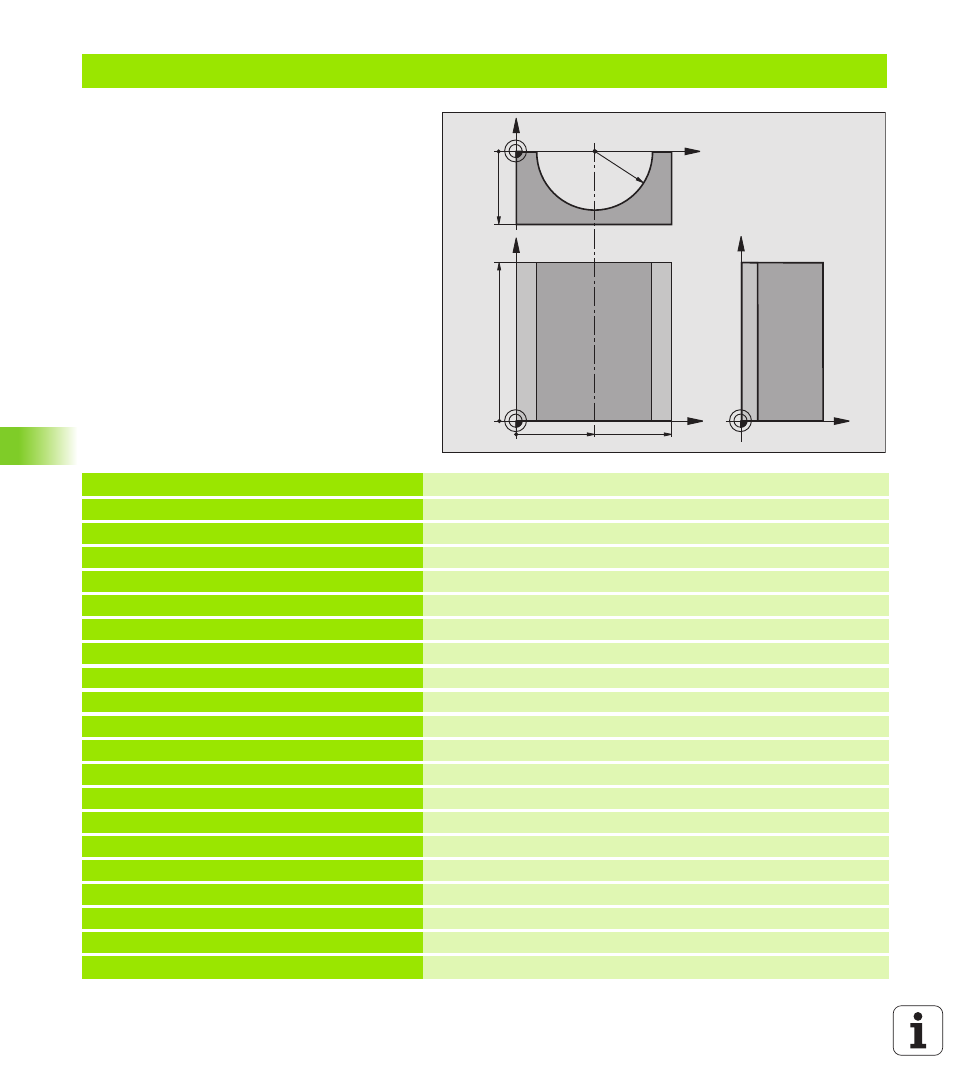

Exemple: Cylindre concave avec fraise à bout hémisphérique
Déroulement du programme
Le programme fonctionne avec une fraise à bout
hémisphérique et la longueur d'outil se réfère au
centre de la sphère
Le contour du cylindre est constitué de
nombreux petits segments de droite (à définir
avec Q13). Plus vous aurez défini de coupes et
plus lisse sera le contour
Le cylindre est fraisé en coupes longitudinales
(dans ce cas: parallèles à l'axe Y)
Définissez le sens du fraisage avec l’angle initial
et l’angle final dans l’espace:
Sens d'usinage horaire:
Angle initial > angle final
Sens d'usinage anti-horaire: Angle initial < angle
final
Le rayon d’outil est corrigé automatiquement
%CYLIN G71 *
N10 D00 Q1 P01 +50 *
Centre de l’axe X
N20 D00 Q2 P01 +0 *
Centre de l’axe Y
N30 D00 Q3 P01 +0 *
Centre de l’axe Z
N40 D00 Q4 P01 +90 *
Angle initial dans l'espace (plan Z/X)
N50 D00 Q5 P01 +270 *
Angle final dans l'espace (plan Z/X)
N60 D00 Q6 P01 +40 *
Rayon du cylindre
N70 D00 Q7 P01 +100 *
Longueur du cylindre
N80 D00 Q8 P01 +0 *
Position angulaire dans le plan X/Y
N90 D00 Q10 P01 +5 *
Surépaisseur de rayon du cylindre
N100 D00 Q11 P01 +250 *
Avance plongée en profondeur
N110 D00 Q12 P01 +400 *
Avance de fraisage
N120 D00 Q13 P01 +90 *
Nombre de coupes
N130 G30 G17 X+0 Y+0 Z-50 *
Définition de la pièce brute
N140 G31 G90 X+100 Y+100 Z+0 *
N150 G99 T1 L+0 R+3 *
Définition de l'outil
N160 T1 G17 S4000 *
Appel d'outil
N170 G00 G40 G90 Z+250 *
Dégager l'outil
N180 L10,0 *
Appeler l’usinage
N190 D00 Q10 P01 +0 *
Annuler la surépaisseur
N200 L10,0 *
Appeler l’usinage
X
Y
50
100
100
Z
Y
X
Z
-50
R40
