9 cycles de conversion de coordonnées, Vue d'ensemble, Effet des conversions de coordonnées – HEIDENHAIN iTNC 530 (340 49x-01) ISO programming Manuel d'utilisation
Page 393
iTNC 530 HEIDENHAIN
393
8.9 Cy
cles de con
v
ersion de coor
données
8.9 Cycles de conversion de
coordonnées
Vue d'ensemble
Grâce aux conversions de coordonnées, la TNC peut usiner à plusieurs
endroits de la pièce un contour déjà programmé en faisant varier sa
position et ses dimensions. La TNC dispose des cycles de conversion
de coordonnées suivants:
Effet des conversions de coordonnées
Début de l'effet: Une conversion de coordonnées devient active dès
qu'elle a été définie – et n'a donc pas besoin d'être appelée. Elle reste
active jusqu'à ce qu'elle soit annulée ou redéfinie.
Annulation d'une conversion de coordonnées:
Redéfinir le cycle avec valeurs du comportement standard, par
exemple, facteur échelle 1,0
Exécuter les fonctions auxiliaires M02, M30 ou la séquence
N999999 %... (dépend du paramètre-machine 7300)
Sélectionner un nouveau programme
Programmer la fonction auxiliaire M142 Informations modales sur
programme

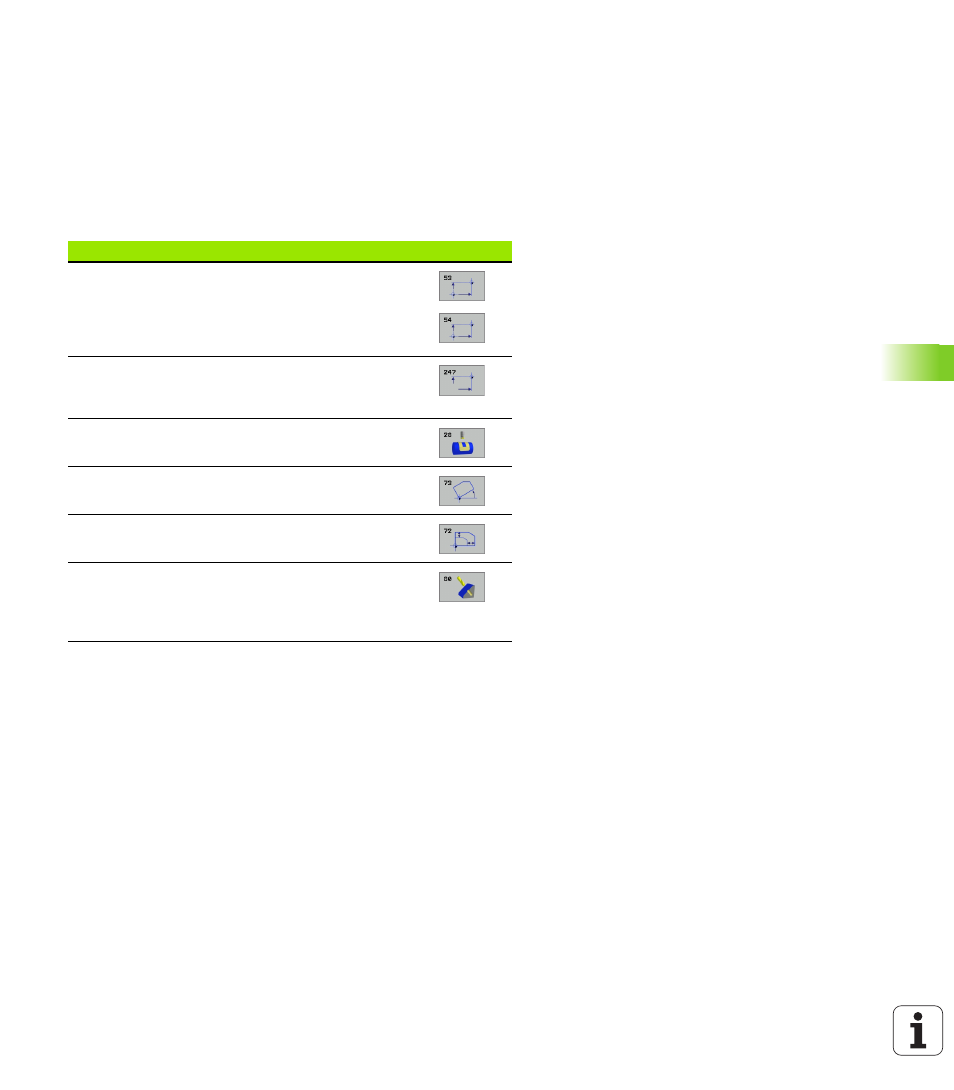

Cycle
Softkey
G28 IMAGE MIROIR
Inversion des contours
G73 ROTATION
Rotation des contours dans le plan d'usinage
