4 cont our nag e s – coor données car tésiennes – HEIDENHAIN iTNC 530 (340 49x-01) ISO programming Manuel d'utilisation
Page 192
![background image](/files/816233/content/doc192.png)
192
6 Programmation: Programmer les contours
6.4 Cont
our
nag
e
s – Coor
données car
tésiennes

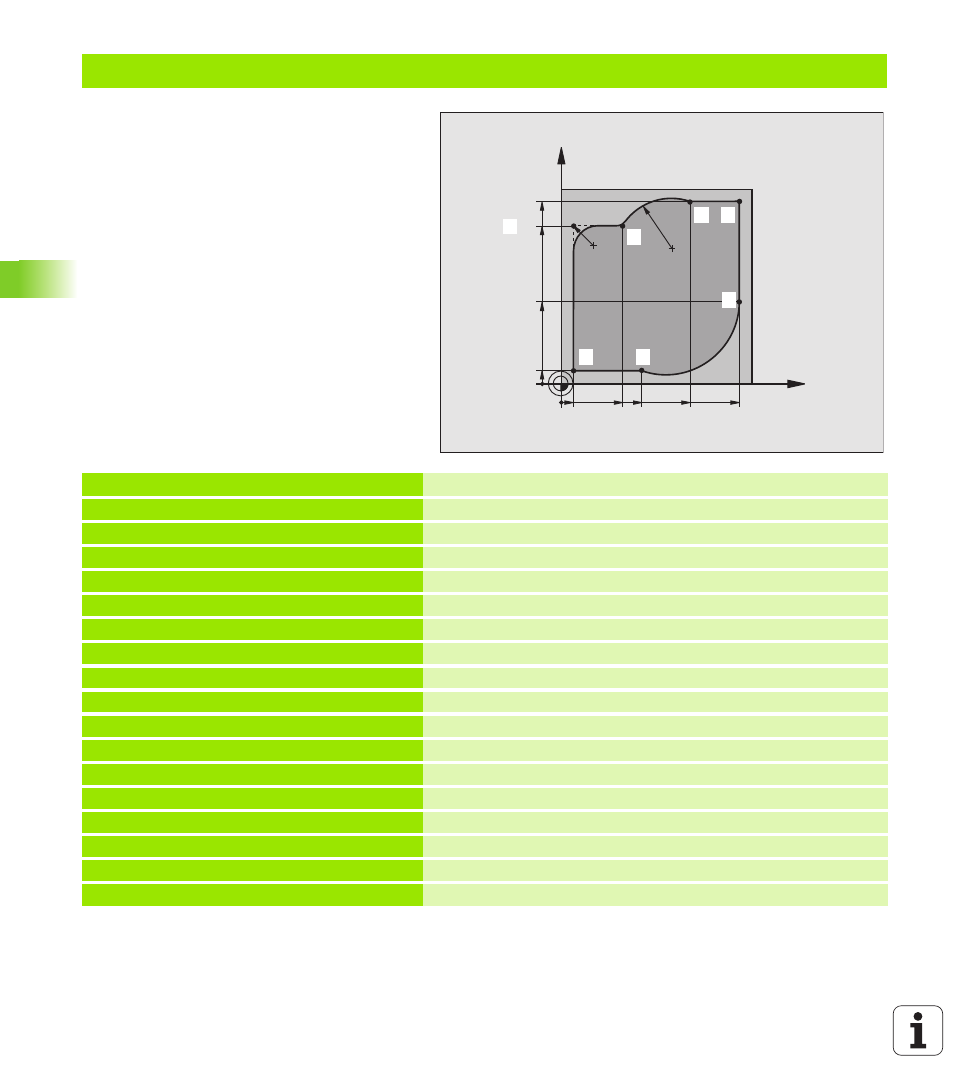

Exemple: Déplacement circulaire en coordonnées cartésiennes
%CIRCUL G71 *
N10 G30 G17 X+0 Y+0 Z-20 *
Définition de la pièce brute pour simulation graphique de l’usinage
N20 G31 G90 X+100 Y+100 Z+0 *
N30 G99 T1 L+0 R+10 *
Définition d’outil dans le programme
N40 T1 G17 S4000 *
Appel d’outil avec axe de broche et vitesse de rotation broche
N50 G00 G40 G90 Z+250 *
Dégager l’outil dans l’axe de broche en avance rapide
N60 X-10 Y-10 *
Pré-positionner l’outil
N70 G01 Z-5 F1000 M3 *
Aller à la profondeur d’usinage avec avance F = 1000 mm/min.
N80 G01 G41 X+5 Y+5 F300 *
Aborder le contour au point 1, activer correction de rayon G41
N90 G26 R5 F150 *
Approche tangentielle
N100 Y+85 *
Point 2: Première droite pour angle 2
N110 G25 R10 *
Insérer un rayon R = 10 mm, avance: 150 mm/min.
N120 X+30 *
Aborder le point 3: Point initial du cercle
N130 G02 X+70 Y+95 R+30 *
Aborder le point 4: Point final du cercle avec G02, rayon 30 mm
N140 G01 X+95 *
Aborder le point 5
N150 Y+40 *
Aborder le point 6
N160 G06 X+40 Y+5 *
Aborder le point 7: Point final du cercle, arc de cercle avec raccord.
tangentiel au point 6, la TNC calcule automatiquement le rayon
X
Y
95
5
95
5
85
40
40
30
70
R10
R30
1
1
1
2
1
3
1
4
1
5
1
6
1
7
