Centre de cercle i, j, 4 cont our nag e s – coor données car tésiennes – HEIDENHAIN iTNC 530 (340 49x-01) ISO programming Manuel d'utilisation
Page 186

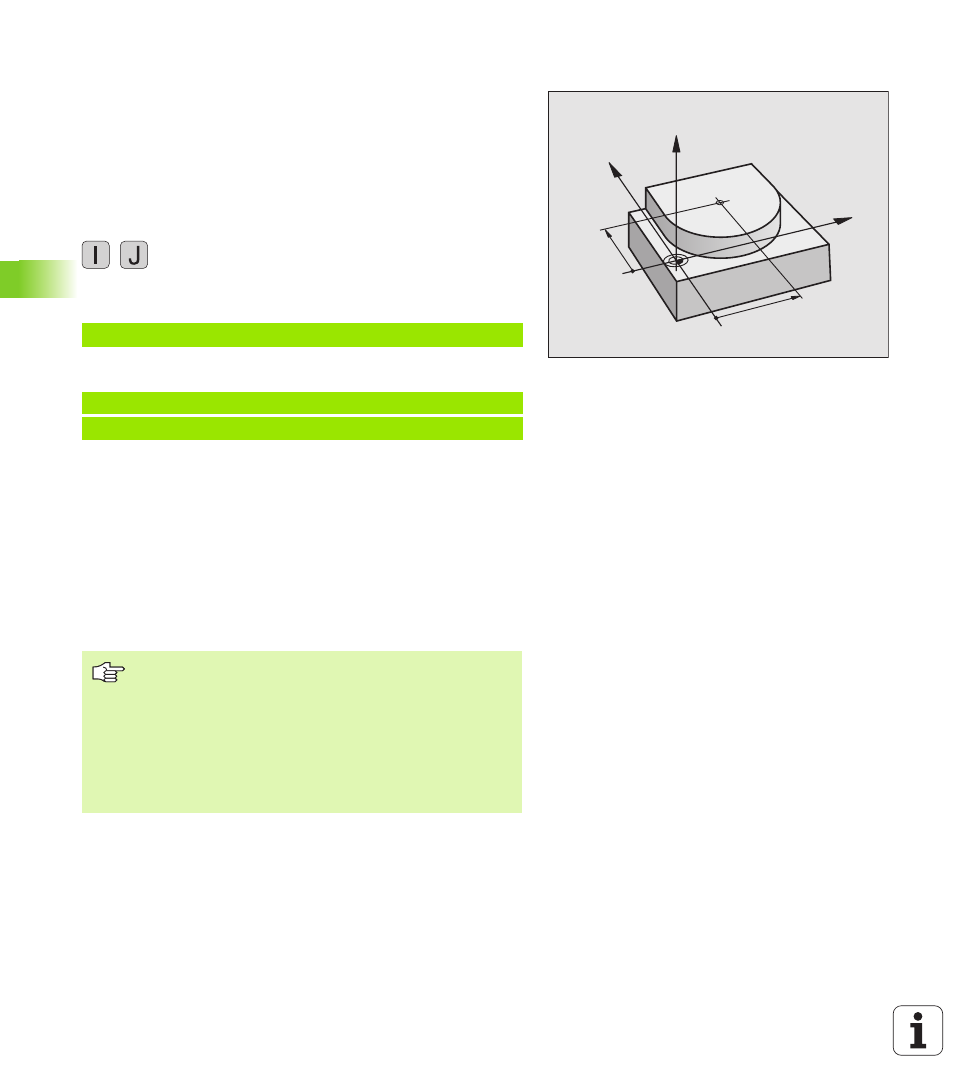

![background image](/files/816233/content/doc186.png)
186
6 Programmation: Programmer les contours
6.4 Cont
our
nag
e
s – Coor
données car
tésiennes
Centre de cercle I, J
Définissez le centre de cercle pour les trajectoires circulaires que vous
programmez avec les fonctions G02, G03 ou G05. Pour cela:
introduisez les coordonnées cartésiennes du centre du cercle ou
prenez en compte la dernière position programmée avec G29 ou
prenez en compte les coordonnées en utilisant la fonction Prise en
compte de position effective
DIN/ISO
8
Introduire les coordonnées du centre
pour valider la dernière position programmée:
Introduire G29
Exemple de séquences CN
ou
Les lignes N10 et N20 du programme ne se réfèrent pas à la figure
ci-contre.
Durée de l’effet
Le centre du cercle reste défini jusqu'à ce que vous programmiez un
nouveau centre de cercle. Vous pouvez également définir un centre de
cercle pour les axes auxiliaires U, V et W.
Introduire le centre de cercle I, J en incrémental
Une coordonnée introduite en valeur incrémentale pour le centre du
cercle se réfère toujours à la dernière position d'outil programmée.
N50 I+25 J+25 *
N10 G00 G40 X+25 Y+25 *
N20 G29 *
Avec I et J, vous désignez une position comme centre de
cercle: L'outil ne se déplace pas jusqu'à cette position.
Le centre du cercle correspond simultanément au pôle
pour les coordonnées polaires.
Si vous désirez définir des axes paraxiaux comme pôle,
appuyez tout d'abord sur la touche, I (J) du clavier ASCII,
puis sur la touche d'axe orange de l'axe paraxial
correspondant.
CC
Z
Y
X
I
J
