8 cy cles d'usinag e ligne à ligne – HEIDENHAIN iTNC 530 (340 49x-01) ISO programming Manuel d'utilisation
Page 389

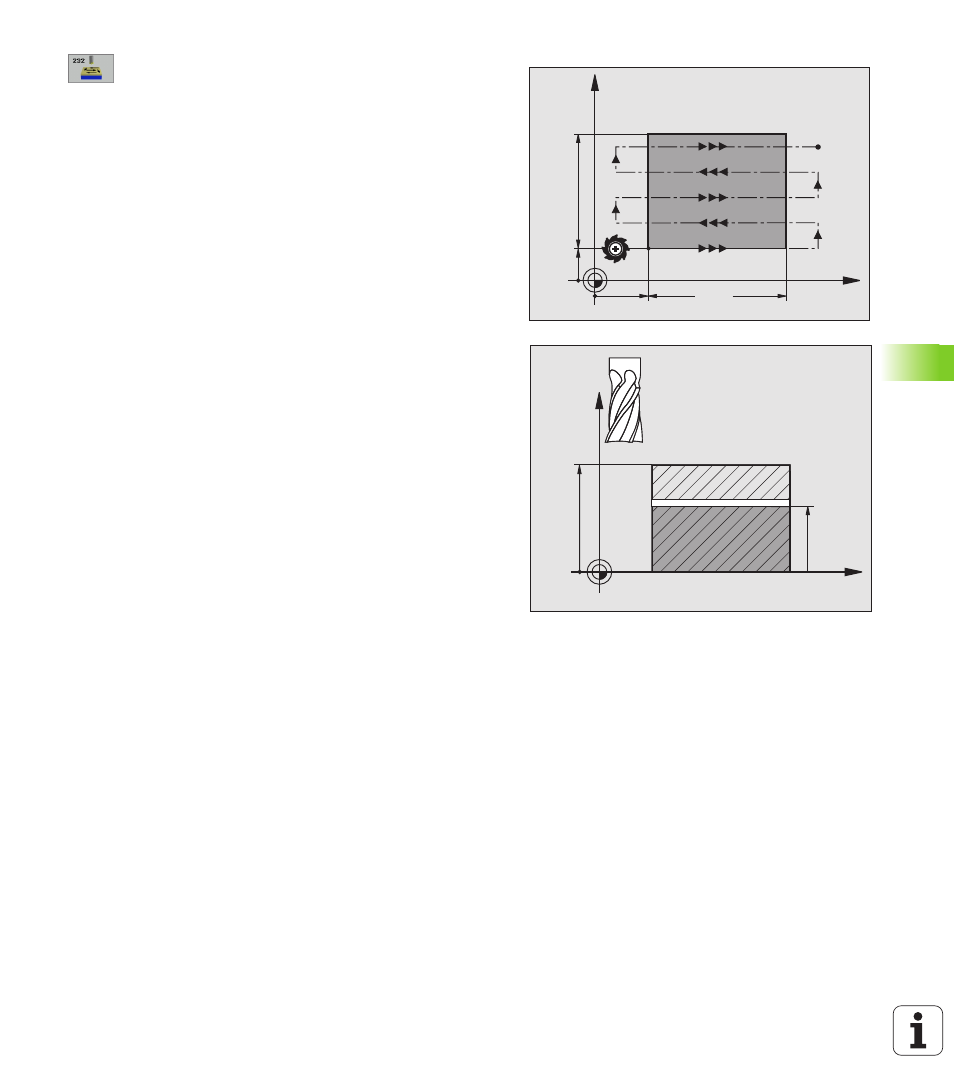

![background image](/files/816233/content/doc389.png)
iTNC 530 HEIDENHAIN
389
8.8 Cy
cles d'usinag
e ligne à ligne
8
Stratégie d'usinage (0/1/2)
Q389: Définir la manière
dont la TNC doit usiner la surface:
0: Usinage en méandres, passe latérale, selon
l'avance de positionnement, à l'extérieur de la surface
à usiner
1: Usinage en méandres, passe latérale, selon
l'avance de fraisage, à l'intérieur de la surface à usiner
2: Usinage ligne à ligne, retrait et passe latérale selon
l'avance de positionnement
8
Point initial 1er axe
Q225 (en absolu): Coordonnée
du point initial de la surface à usiner dans l'axe
principal du plan d'usinage
8
Point initial 2ème axe
Q226 (en absolu):
Coordonnée du point initial de la surface à usiner ligne
à ligne dans l'axe auxiliaire du plan d'usinage
8
Point initial 3ème axe
Q227 (en absolu):
Coordonnée de la surface de la pièce à partir de
laquelle les passes sont calculées
8
Point final 3ème axe
Q386 (en absolu): Coordonnée
dans l'axe de broche à laquelle doit être exécuté le
surfaçage de la surface
8
1er côté
Q218 (en incrémental): Longueur de la
surface à usiner dans l'axe principal du plan
d'usinage. Le signe vous permet de reconnaître la
direction de la première trajectoire de fraisage par
rapport au point initial du 1er axe
8
2ème côté
Q219 (en incrémental): Longueur de la
surface à usiner dans l'axe auxiliaire du plan
d'usinage. Le signe vous permet de reconnaître la
direction de la première passe transversale par
rapport au point initial du 2ème axe
X
Y
Q226
Q225
Q219
Q218
X
Z
Q227
Q386
