10 .1 0 ex emples de pr ogr a mmation, Exemple: ellipse – HEIDENHAIN iTNC 530 (340 49x-01) ISO programming Manuel d'utilisation
Page 458
![background image](/files/816233/content/doc458.png)
458
10 Programmation: Paramètres Q
1
0
.1
0 Ex
emples de pr
ogr
a
mmation

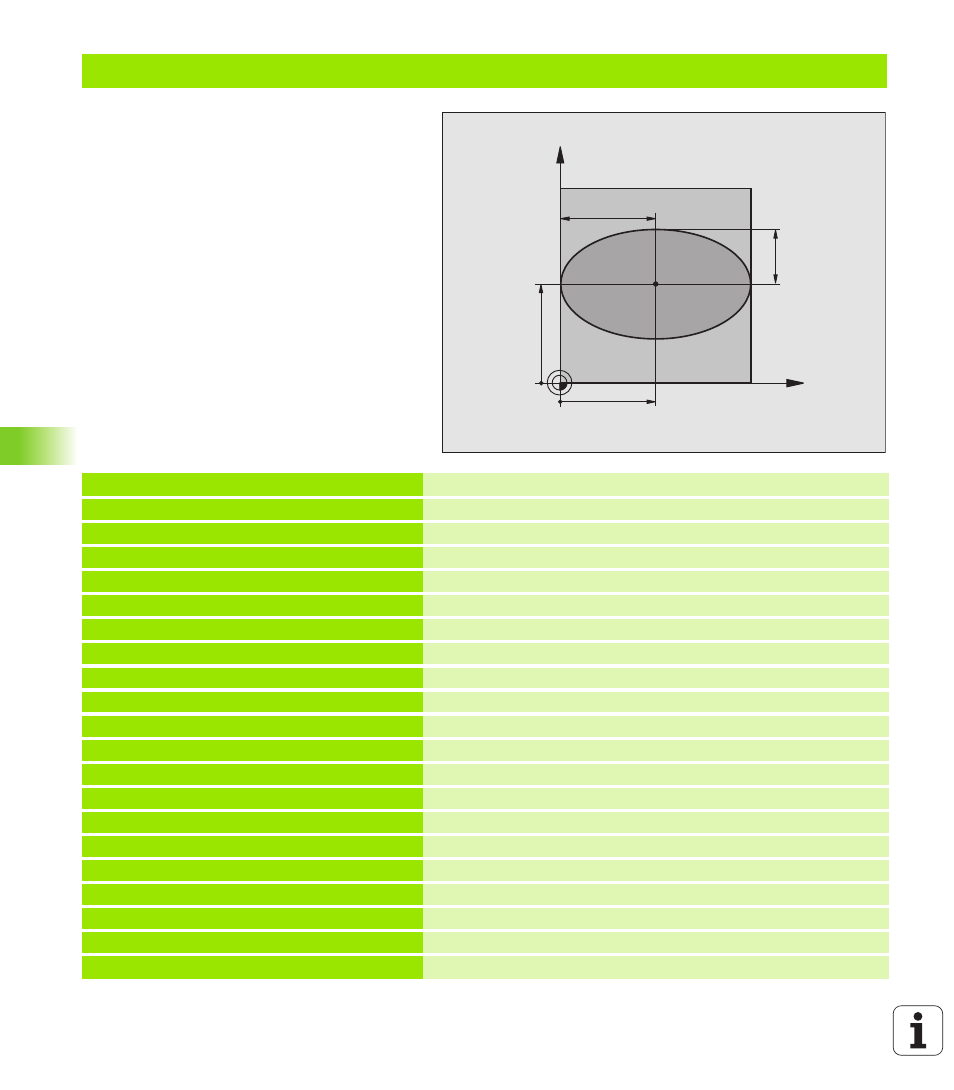

Exemple: Ellipse
Déroulement du programme
Le contour de l'ellipse est constitué de
nombreux petits segments de droite (à définir
avec Q7). Plus vous aurez défini de pas de calcul
et plus lisse sera le contour
Définissez le sens du fraisage avec l’angle initial
et l’angle final dans le plan:
Sens d'usinage horaire:
Angle initial > angle final
Sens d'usinage anti-horaire: Angle initial < angle
final
Le rayon d’outil n’est pas pris en compte
%ELLIPSE G71 *
N10 D00 Q1 P01 +50 *
Centre de l’axe X
N20 D00 Q2 P01 +50 *
Centre de l’axe Y
N30 D00 Q3 P01 +50 *
Demi-axe X
N40 D00 Q4 P01 +30 *
Demi-axe Y
N50 D00 Q5 P01 +0 *
Angle initial dans le plan
N60 D00 Q6 P01 +360 *
Angle final dans le plan
N70 D00 Q7 P01 +40 *
Nombre de pas de calcul
N80 D00 Q8 P01 +30 *
Position angulaire de l'ellipse
N90 D00 Q9 P01 +5 *
Profondeur de fraisage
N100 D00 Q10 P01 +100 *
Avance au fond
N110 D00 Q11 P01 +350 *
Avance de fraisage
N120 D00 Q12 P01 +2 *
Distance d’approche pour le pré-positionnement
N130 G30 G17 X+0 Y+0 Z-20 *
Définition de la pièce brute
N140 G31 G90 X+100 Y+100 Z+0 *
N150 G99 T1 L+0 R+2,5 *
Définition de l'outil
N160 T1 G17 S4000 *
Appel d'outil
N170 G00 G40 G90 Z+250 *
Dégager l'outil
N180 L10,0 *
Appeler l’usinage
N190 G00 Z+250 M2 *
Dégager l’outil, fin du programme
N200 G98 L10 *
Sous-programme 10: Usinage
X
Y
50
50
30
50
