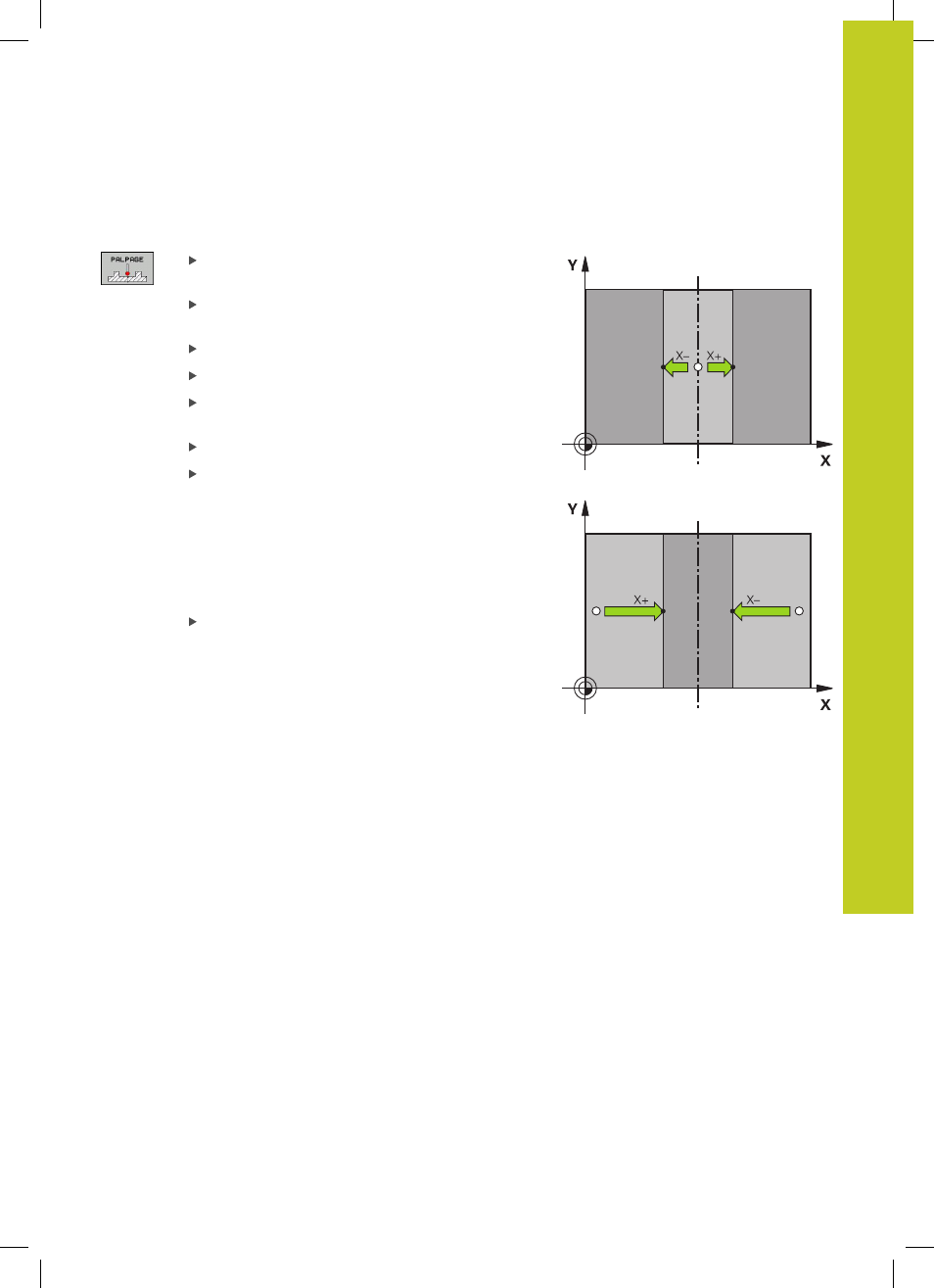

Initialiser le point d'origine avec le palpeur 3D
12.8
12
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
421
Initialisation de la ligne médiane comme point
d'origine
Sélectionner la fonction de palpage : Choisir la
softkey PALPAGE
Positionner le palpeur à proximité du premier point
de palpage
Sélectionner le sens de palpage par softkey
Palpage : appuyer sur la touche Marche CN
Positionner le palpeur à proximité du deuxième
point de palpage
Palpage : appuyer sur la touche Marche CN
Point d'origine : introduire dans la fenêtre du
menu les coordonnées du point d'origine, valider
avec la softkey INITIALISATION PT DE REF. ou
inscrire la valeur dans un tableau (voir "Inscrire les
valeurs de mesure à partir des cycles palpeurs
dans le tableau de points zéro", Page 406 ouvoir
"Inscrire les valeurs de mesure des cycles palpeurs
dans le tableau Preset", Page 407)
Quitter la fonction de palpage : appuyer sur la
touche END
