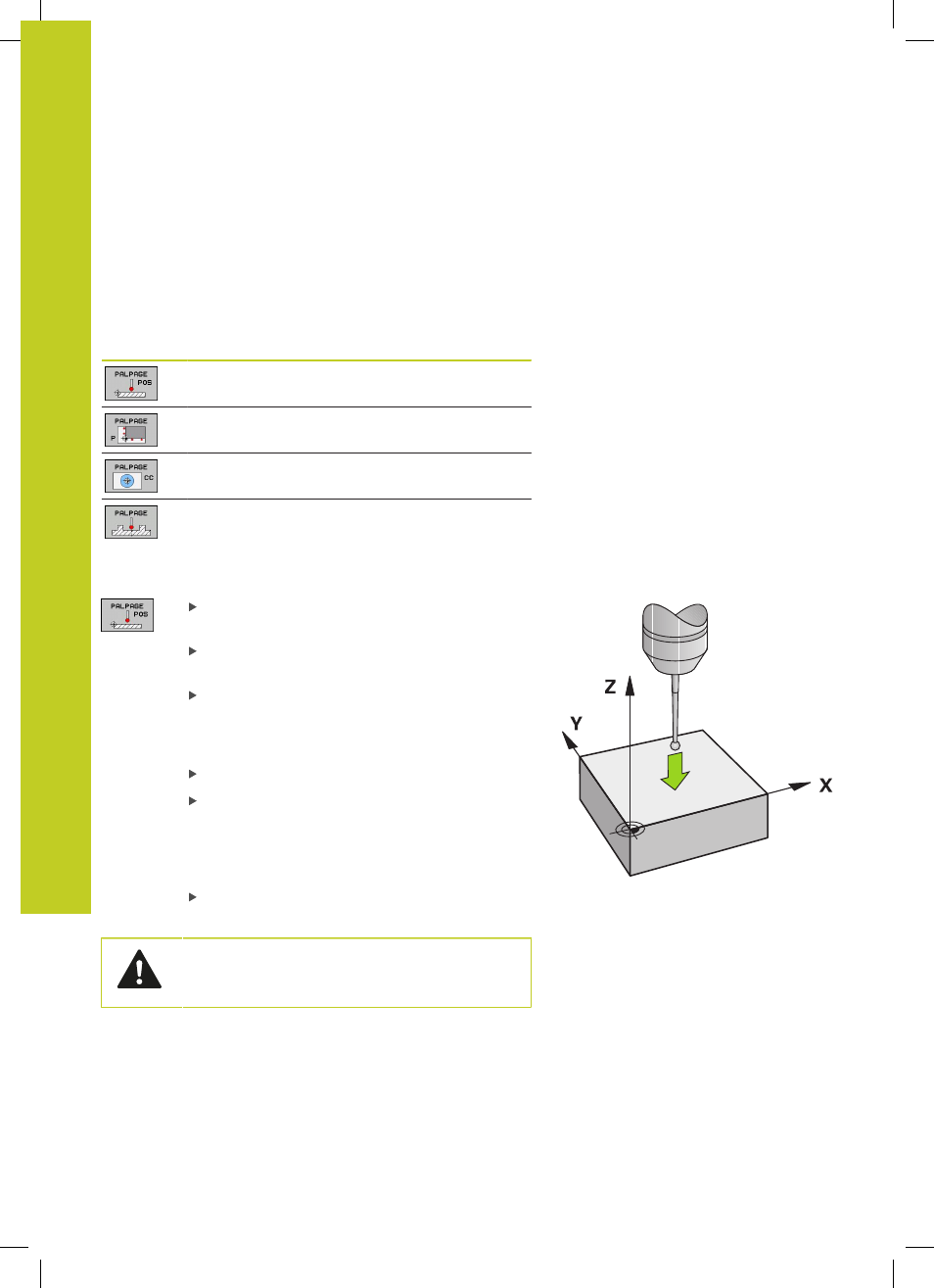

![background image](/files/815992/content/doc416.png)
Mode manuel et réglages
12.8 Initialiser le point d'origine avec le palpeur 3D
12
416
TNC 320 | Manuel d'utilisation HEIDENHAIN-Conversationnel | 7/2013
12.8
Initialiser le point d'origine avec le
palpeur 3D
Résumé
Avec les softkeys suivantes, vous sélectionnez les fonctions
destinées à initialiser le point d'origine de la pièce dégauchie :
Softkey
Fonction
Page
Initialiser le point d'origine sur un axe
donné avec
Initialisation d'un coin comme point
d'origine
Initialisation du centre de cercle
comme point d'origine
Ligne médiane comme point
d'origine
Initialiser un point d'origine sur un axe au choix
Sélectionner la fonction de palpage : appuyer sur la
softkey PALPAGE POS
Positionner le palpeur à proximité du point de
palpage
Sélectionner en même temps la direction de
palpage et l'axe dont le point d'origine doit être
initialisé, p. ex. palpage de Z dans le sens Z– :
sélectionner par softkey
Palpage : appuyer sur la touche START externe
Point d'origine : introduire la coordonnée
nominale, valider avec la softkey INITIAL. POINT
DE RÉFÉRENCE, voir "Inscrire les valeurs de
mesure à partir des cycles palpeurs dans le
tableau de points zéro", Page 406
Quitter la fonction de palpage : appuyer sur la
softkey FIN
HEIDENHAIN ne garantit le bon fonctionnement
des cycles de palpage qu'avec les palpeurs
HEIDENHAIN.
